Collections/Downlights/1 Inch Recessed Downlight

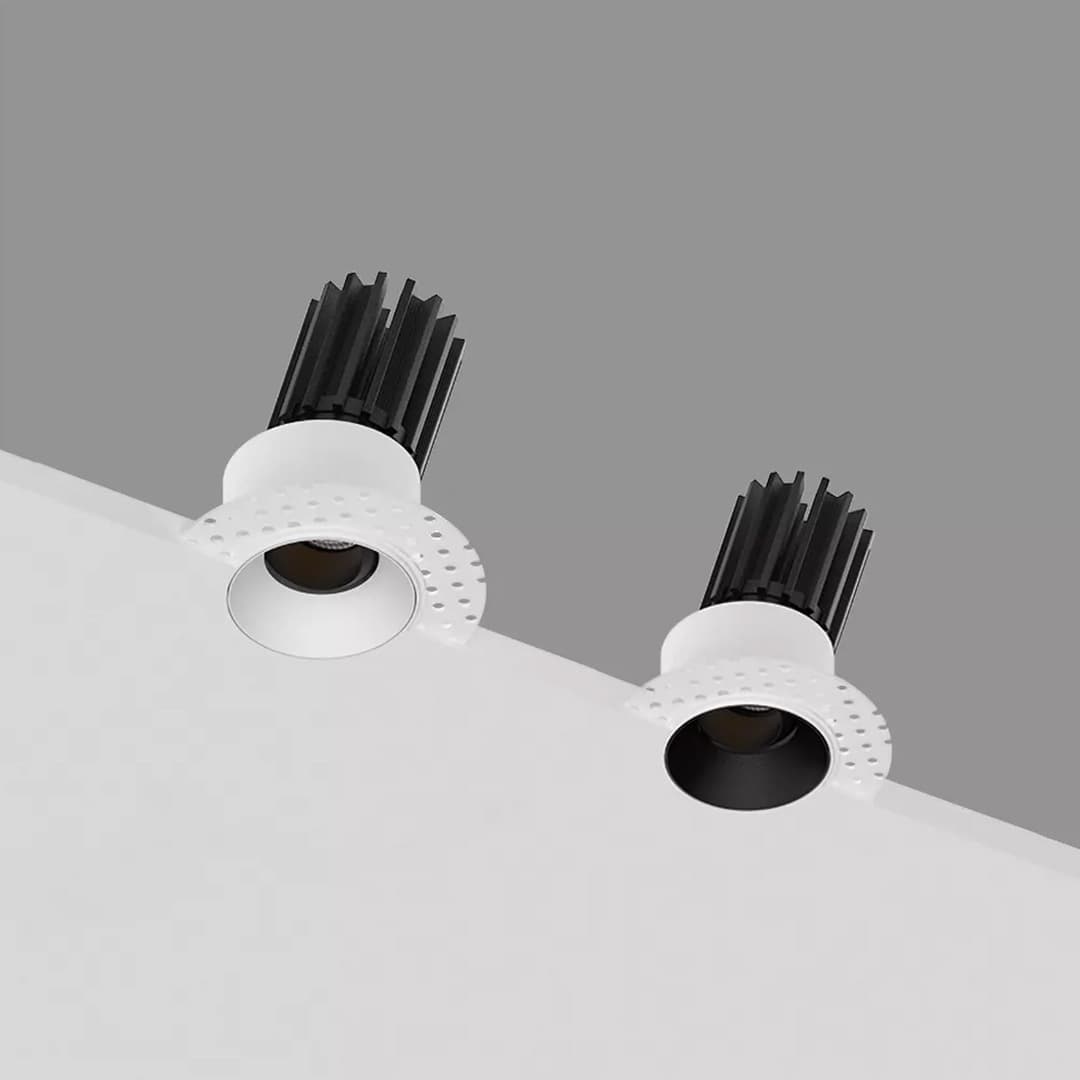

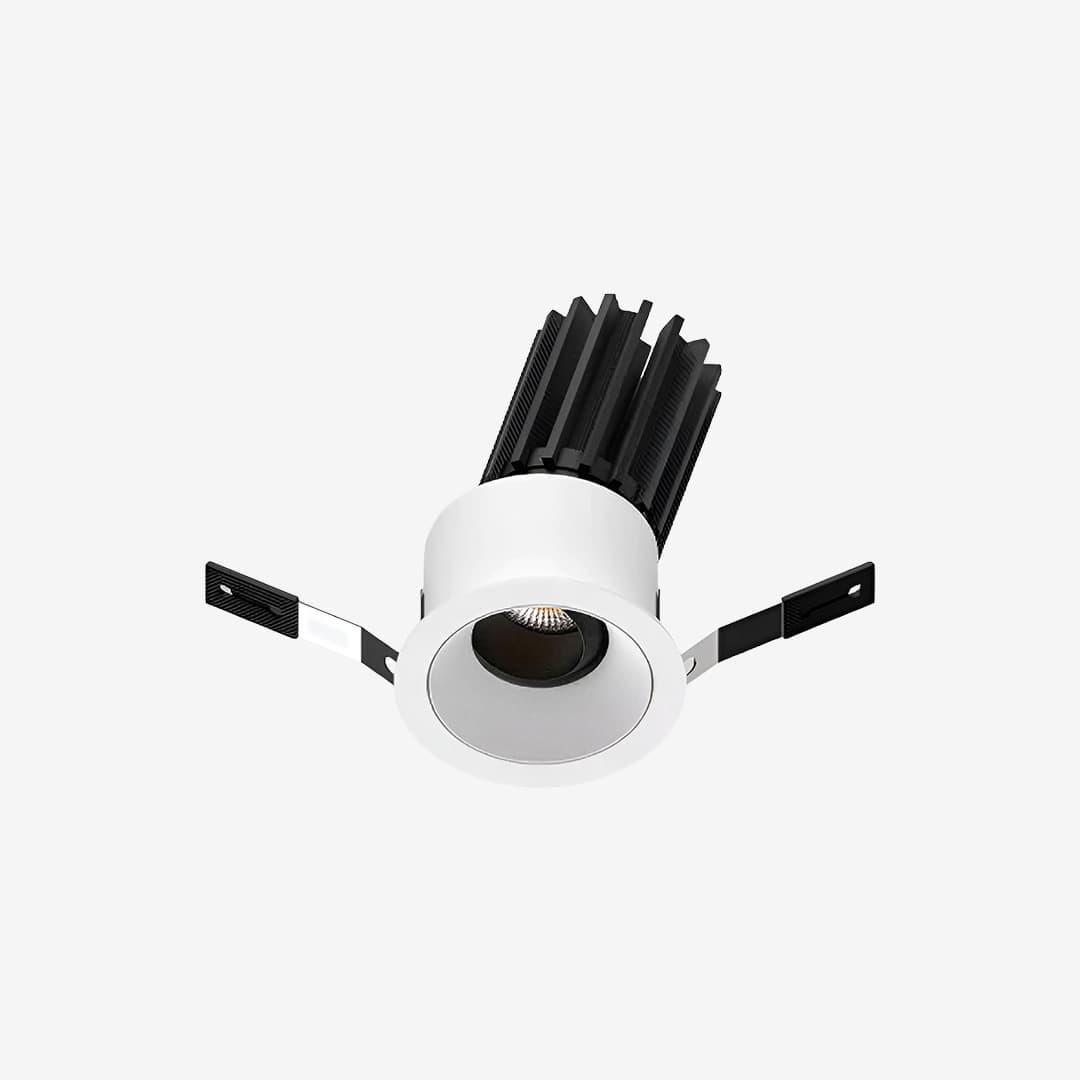

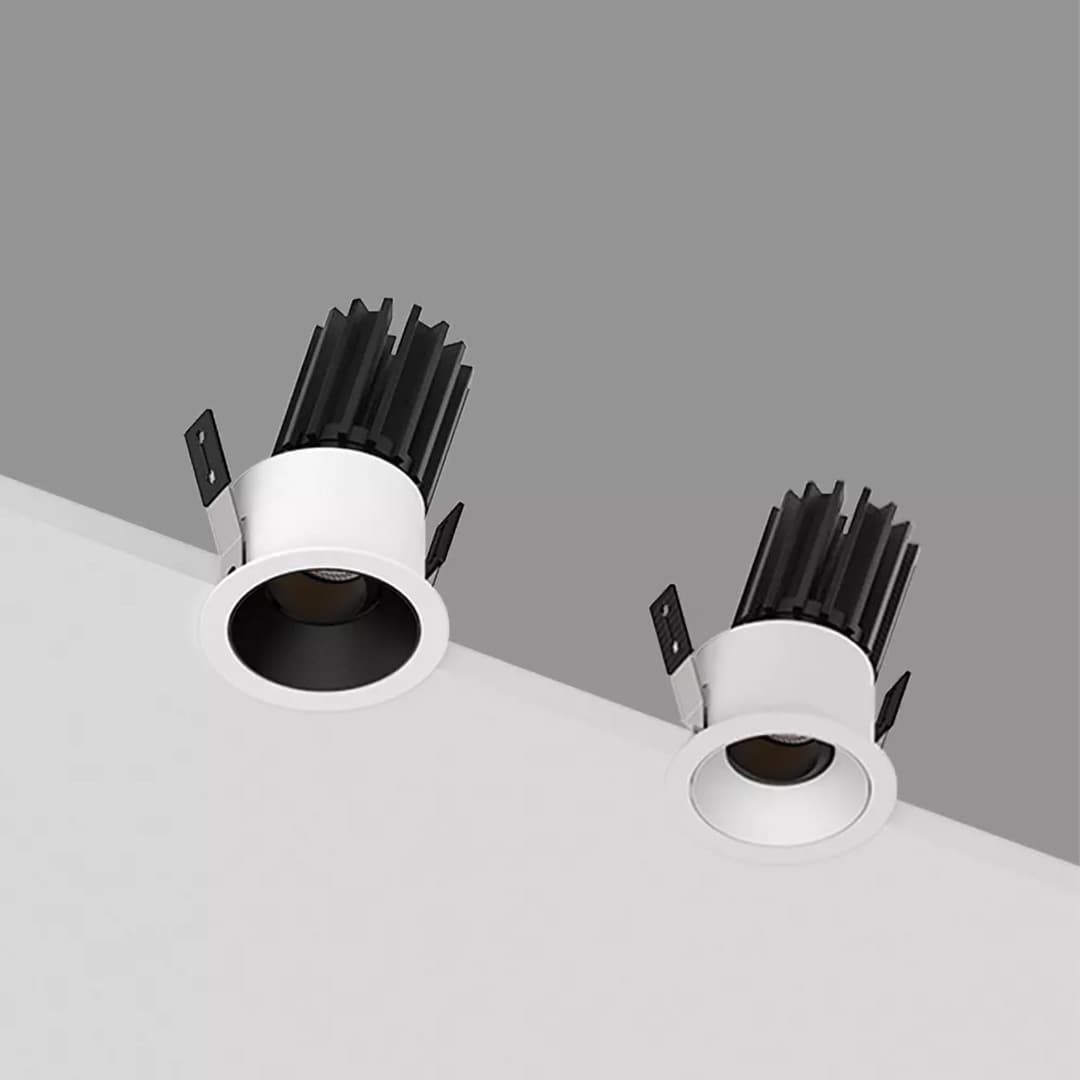

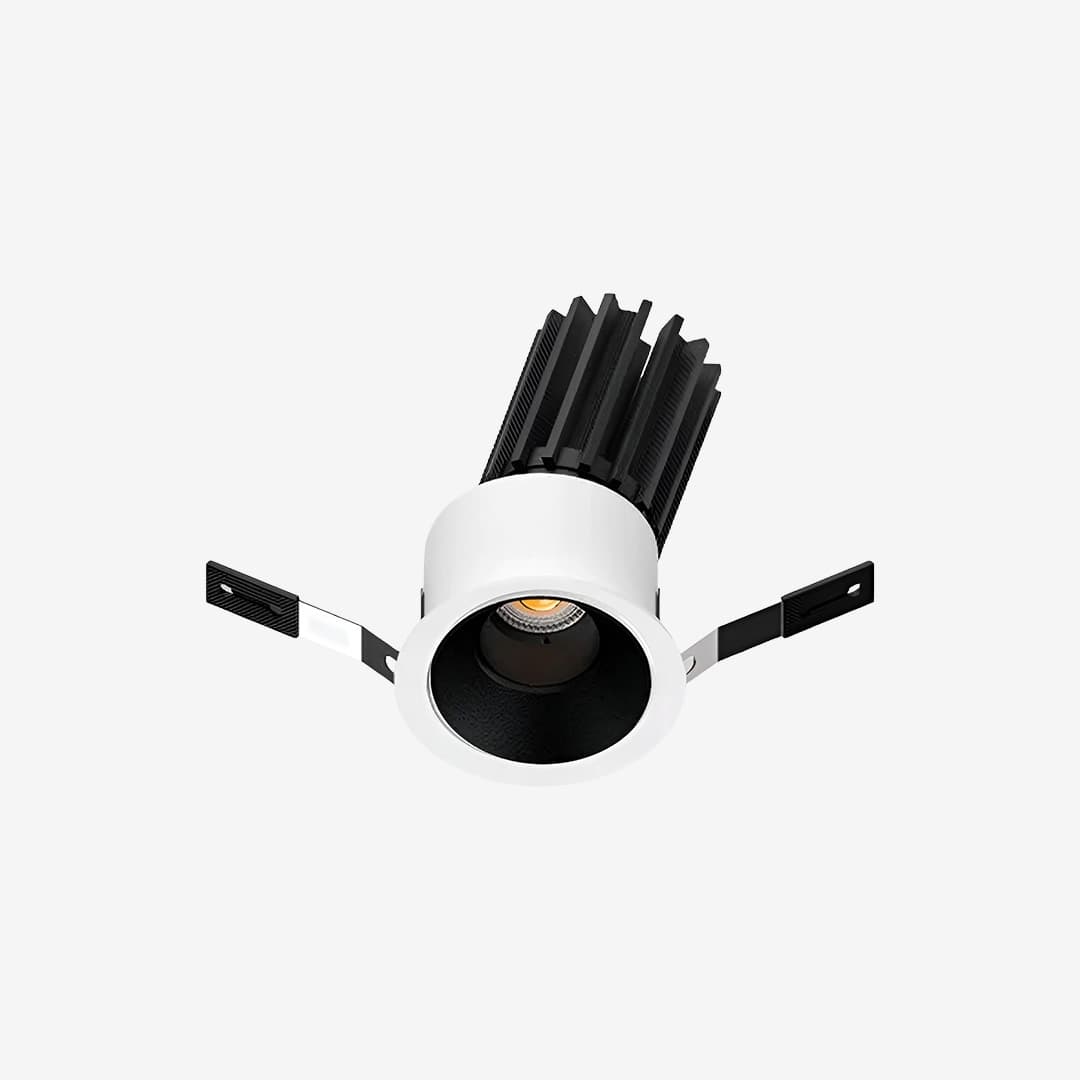

1 Inch Recessed Downlight
Downlights

1 Inch Recessed Downlight

Model N45 · 3 trims

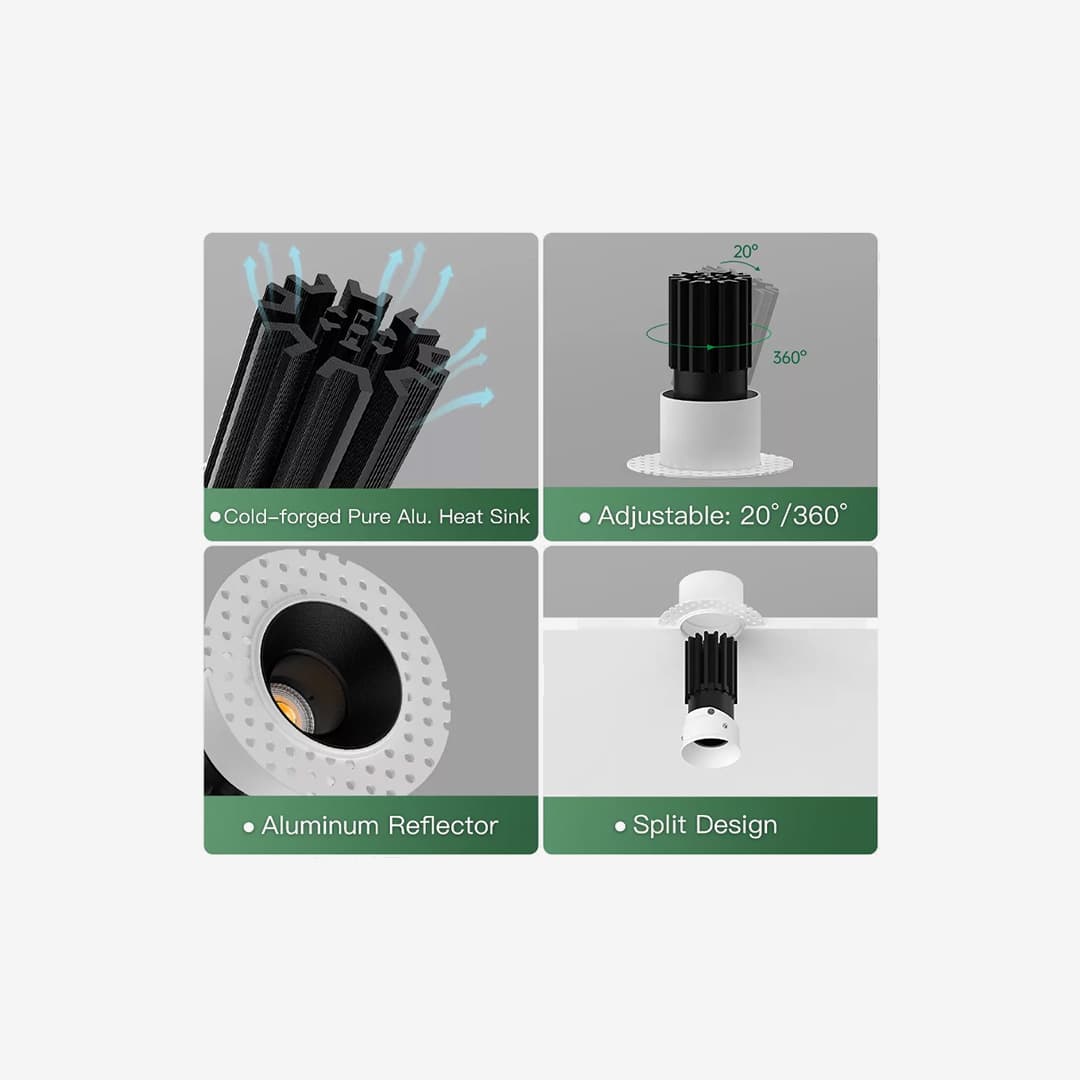

The 1 Inch Recessed Round Adjustable Downlight is built for interiors where the lighting needs to be intentional and adjustable without turning into visual clutter. The fixture uses a cold forged aluminum heat sink, which actually helps move heat away from the LED instead of trapping it the way die cast housings often do. That gives you steadier performance and longer life.

The adjustable light engine is the real advantage here. You can tilt and aim the beam to highlight art, shape the room, or correct odd architectural lines without relying on bulky surface fixtures. The integrated COB LED, paired with a precision reflector system, produces clean, consistent light with smooth edges and no harsh falloff. The small aperture keeps the environment visually calm, even when the beam is directed at a steep angle.

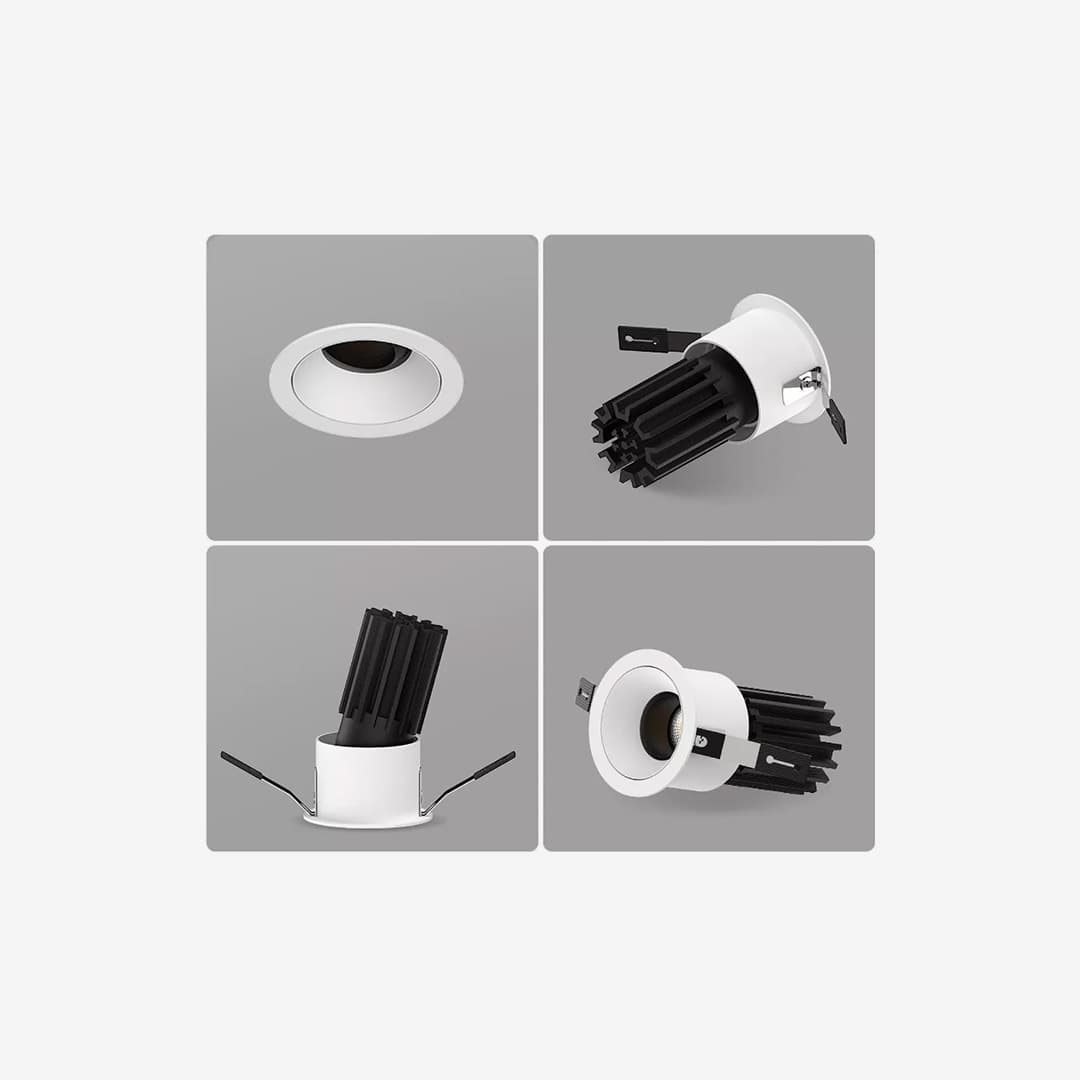

The split-body design keeps installation practical. The housing and light engine are separate, so electricians can place the housing first and finish the trim later without fighting tight ceilings or damaging the light.

This fixture suits modern residential work, boutiques, gallery installations, studios and any setting that needs a mix of minimalism and control. It gives you the flexibility of an adjustable spotlight while keeping the ceiling language simple and quiet.

Key points
• True 1 inch recessed profile with a clean, minimal aperture
• Adjustable light engine for accurate aiming
• Cold forged aluminum heat sink for solid thermal performance
• COB LED with smooth, uniform illumination
• Split-body system for easier installation and maintenance
• Ideal for accent lighting, art lighting, and flexible architectural interiors

Beam
15-80°
Color
97 CRI
Ingress
IP20-44
Output
10 W
Configure this fixtureSpecs and downloads

Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.

Certified & rated

  • ETLIntertek listed
  • CEEU conformity
  • FCC
  • IP44Splash resistant

Ratings apply per build. The IP44 rating belongs to the builds that carry it, not to every option on this page.

Configurator

Build the fixture, get the order code.

Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.

1 of 13 required

Shape (required)

Required

Aperture (required)

Required

COB Chip (required)

Required

CCT (required)

Required

Colour Temperature

n/a

Beam Angle (required)

Required

IP Rating (required)

Required

Trim (required)

Required

Reflector Colour (required)

Required

Trim Colour (required)

Required

Driver (required)

Required

Housing (required)

Required

Tethered Controller (required)

Required

Order code

N45-······-··-XK-··-··-····-··-··-··-··

12 required axes remaining

Configured price

$129.00

Photometrics

See what the beam does before you cut the hole.

Pick an optic, a mounting height and a color temperature. One set of inputs drives all four views: the beam in section, the polar distribution, the spacing a run sets out at, and color rendition. Tested IES files for every build are in the downloads below.

Beam angle
Ceiling height
Colour temperature
DistanceFocus Ø
1.0 m0.44 m
2.0 m0.89 m
Floor · 2.74 m1.22 m

The diameter is geometry from the rated beam angle and holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.

h = 9 ft / 2.74 m25° beam · 3000KFocus 1.22 m / 4.0 ft
N45 · Beam section25° · 3000K · 9 ft ceilingScale varies

Installed

At work in projects we lit.

View projects →

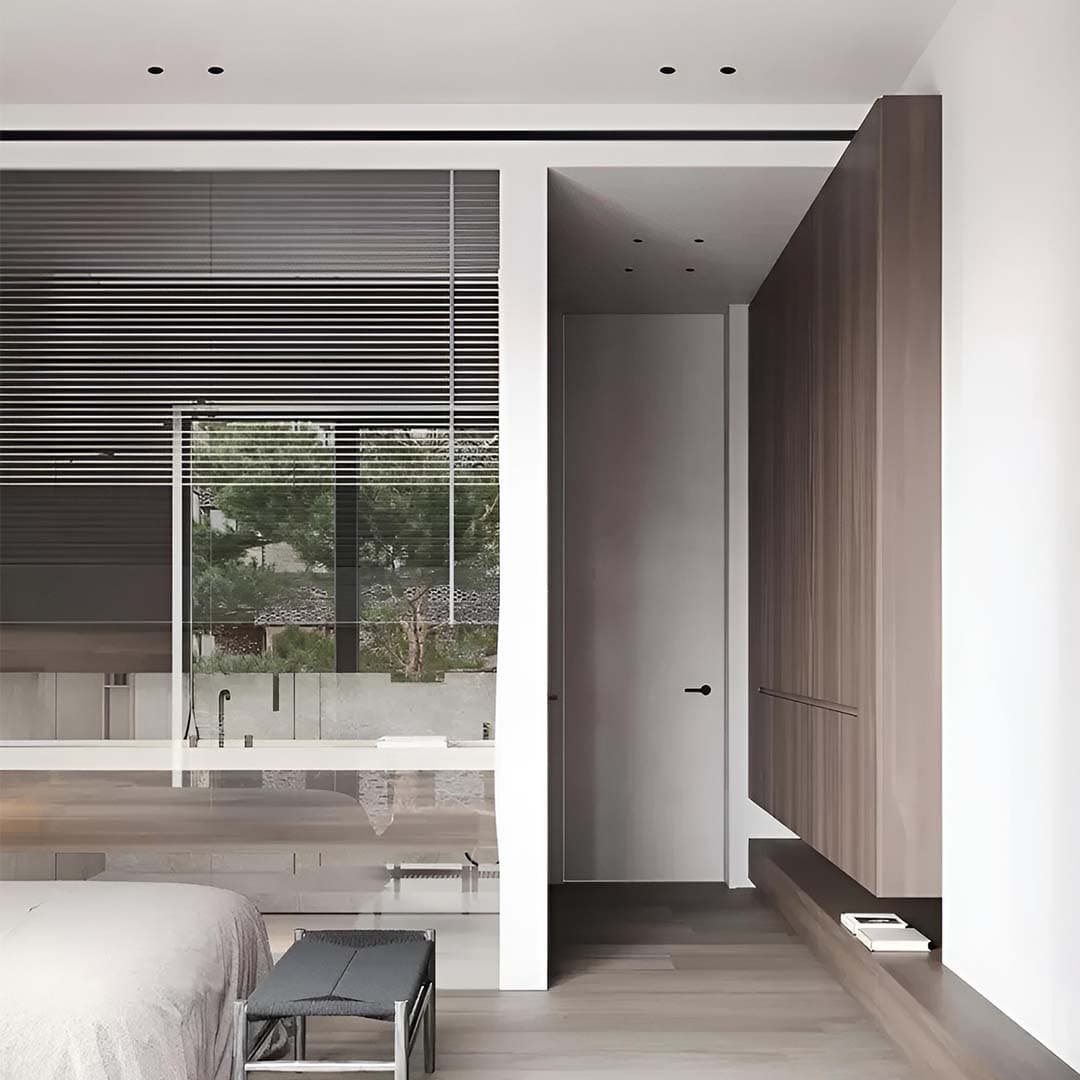

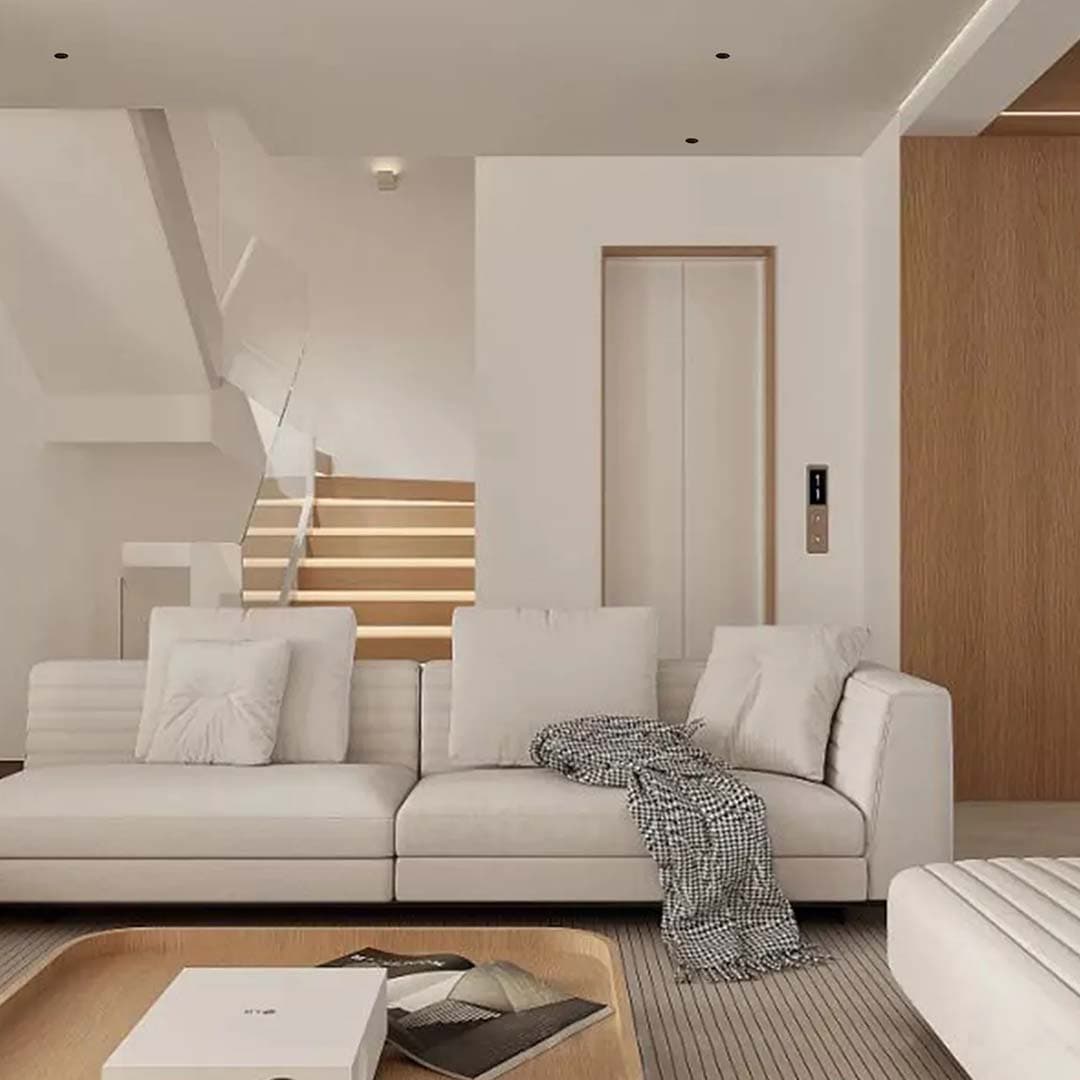

Recessed downlights set flush into a plaster ceiling

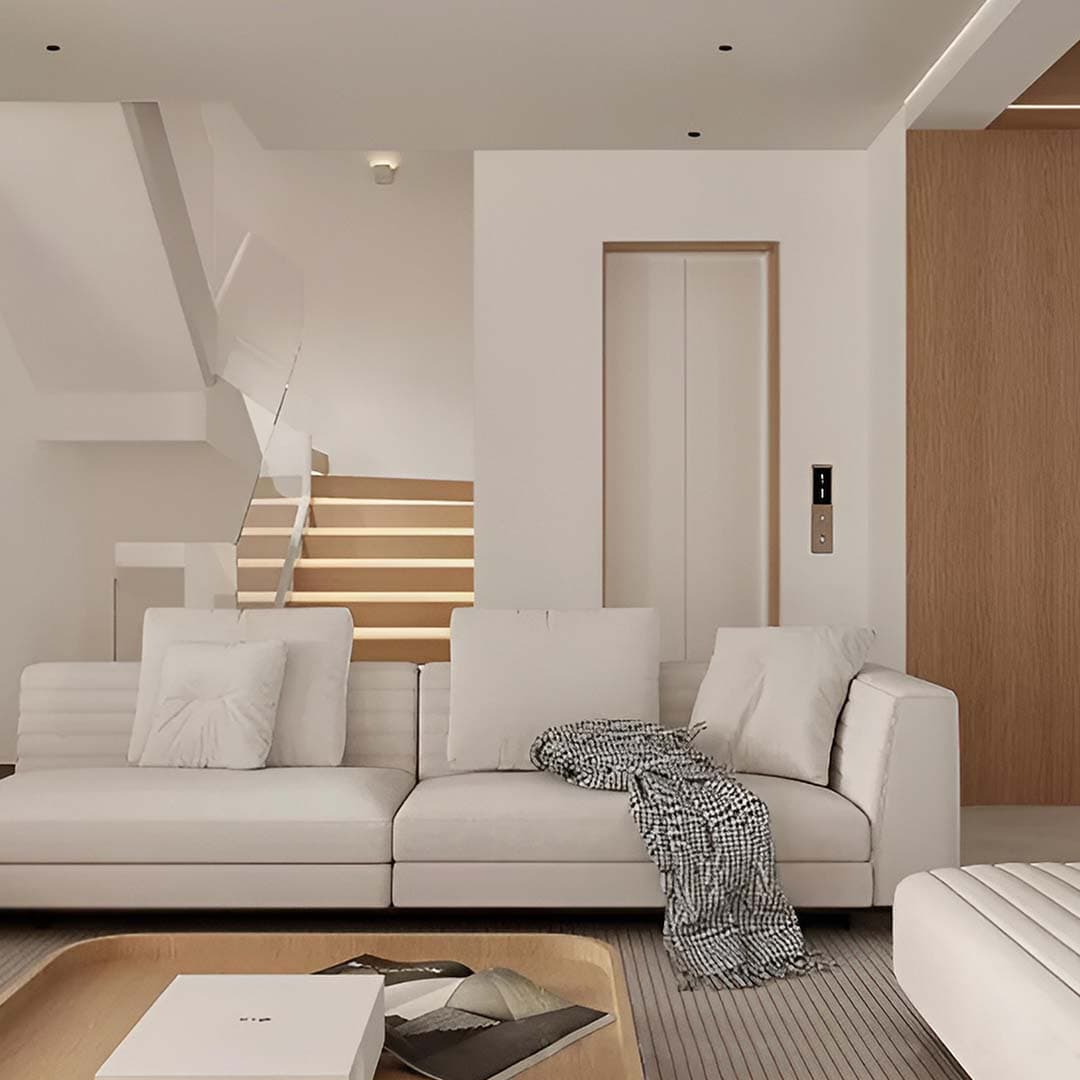

A pair of recessed downlights in an unbroken ceiling plane

Technical specification

Material
Cold forged aluminum
Shape
Round
COB chip
24V CV · 36V CC
Colour
Static CCT · 5CCT Switch · 2700K to 6000K · 1800K to 5500K · 3000K to 1800K · RGBW
Beam angles
15° · 25° · 35° · 50° · 80°
Ingress and aiming
IP20 · IP44
Trim

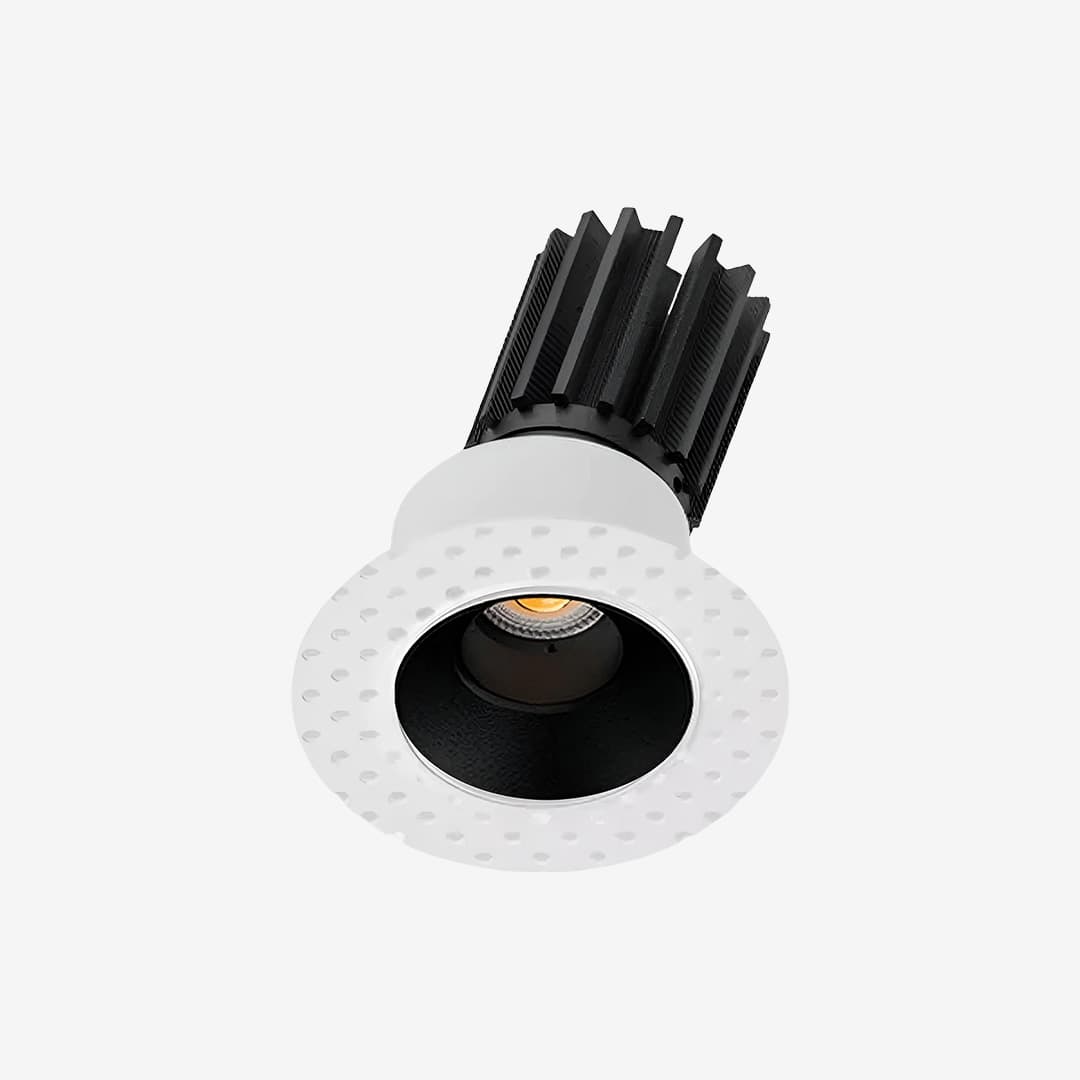

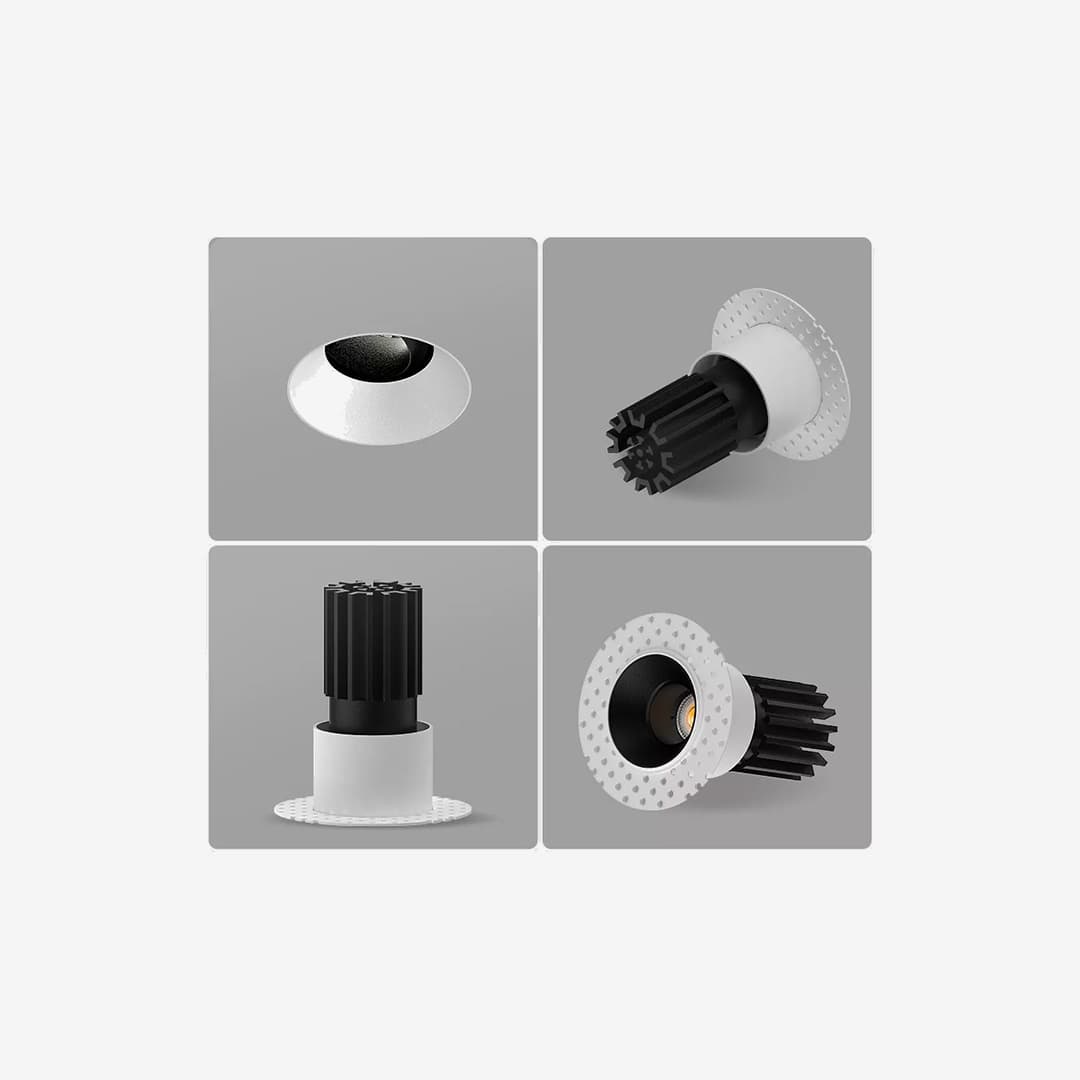

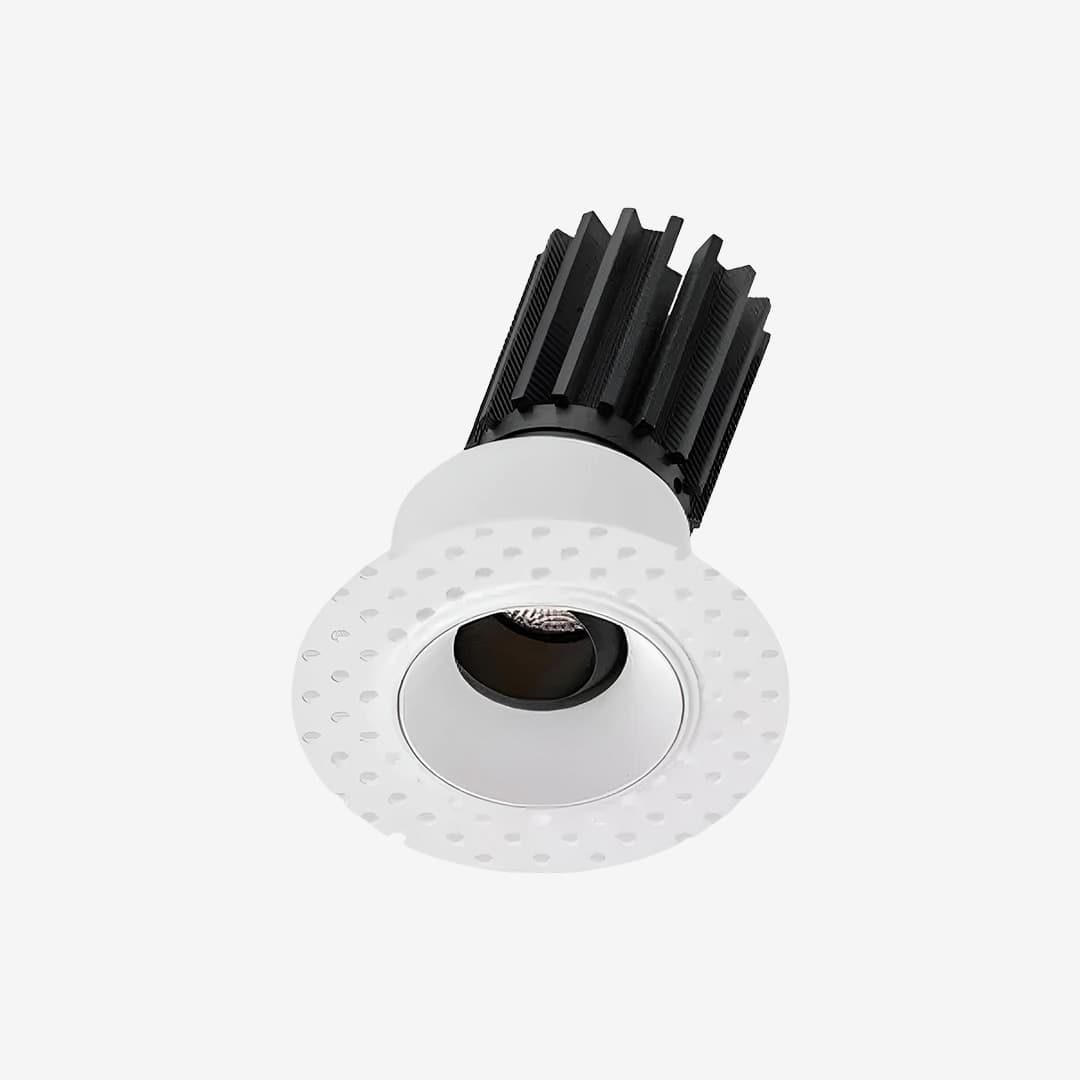

Trimless · Micro-flange · Millwork

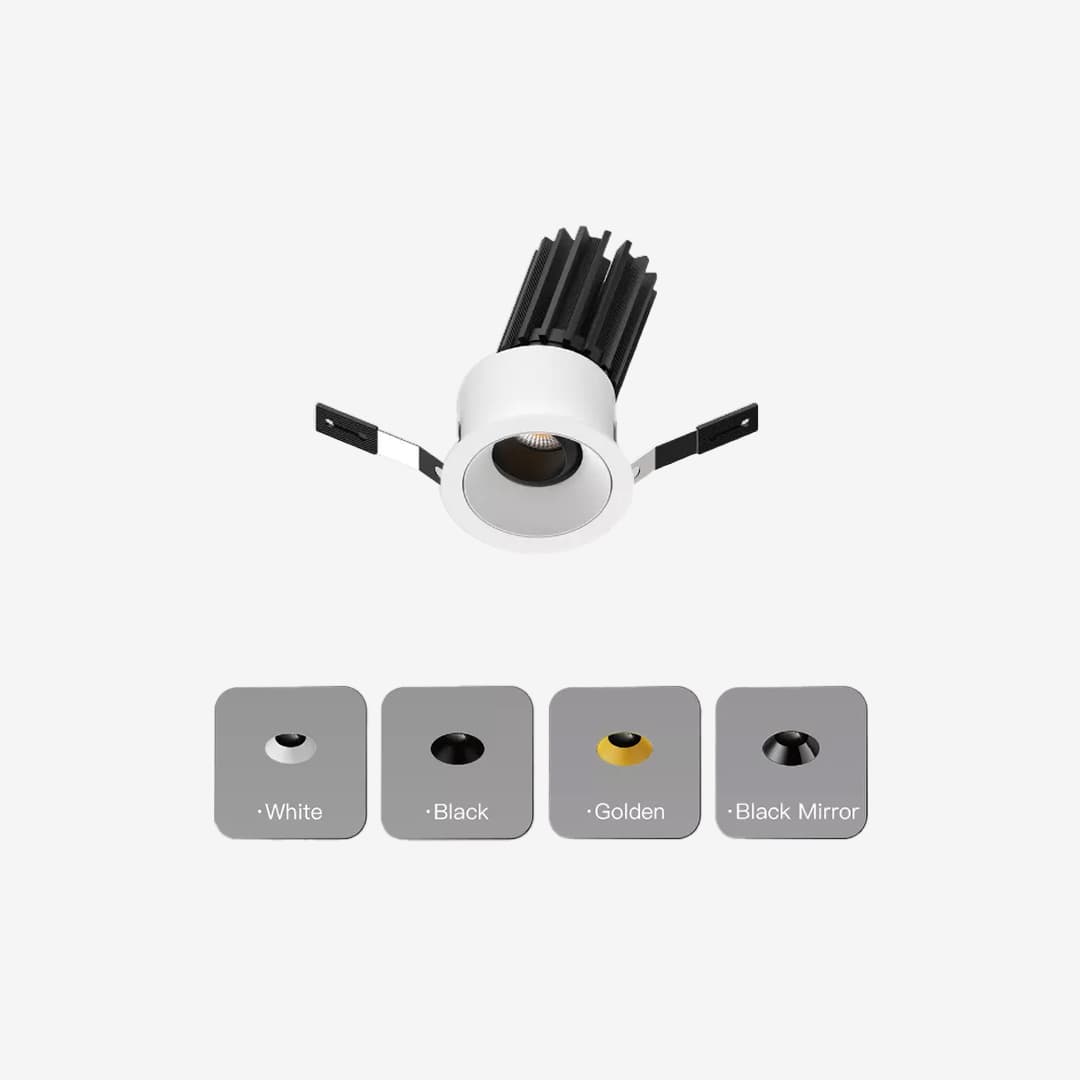

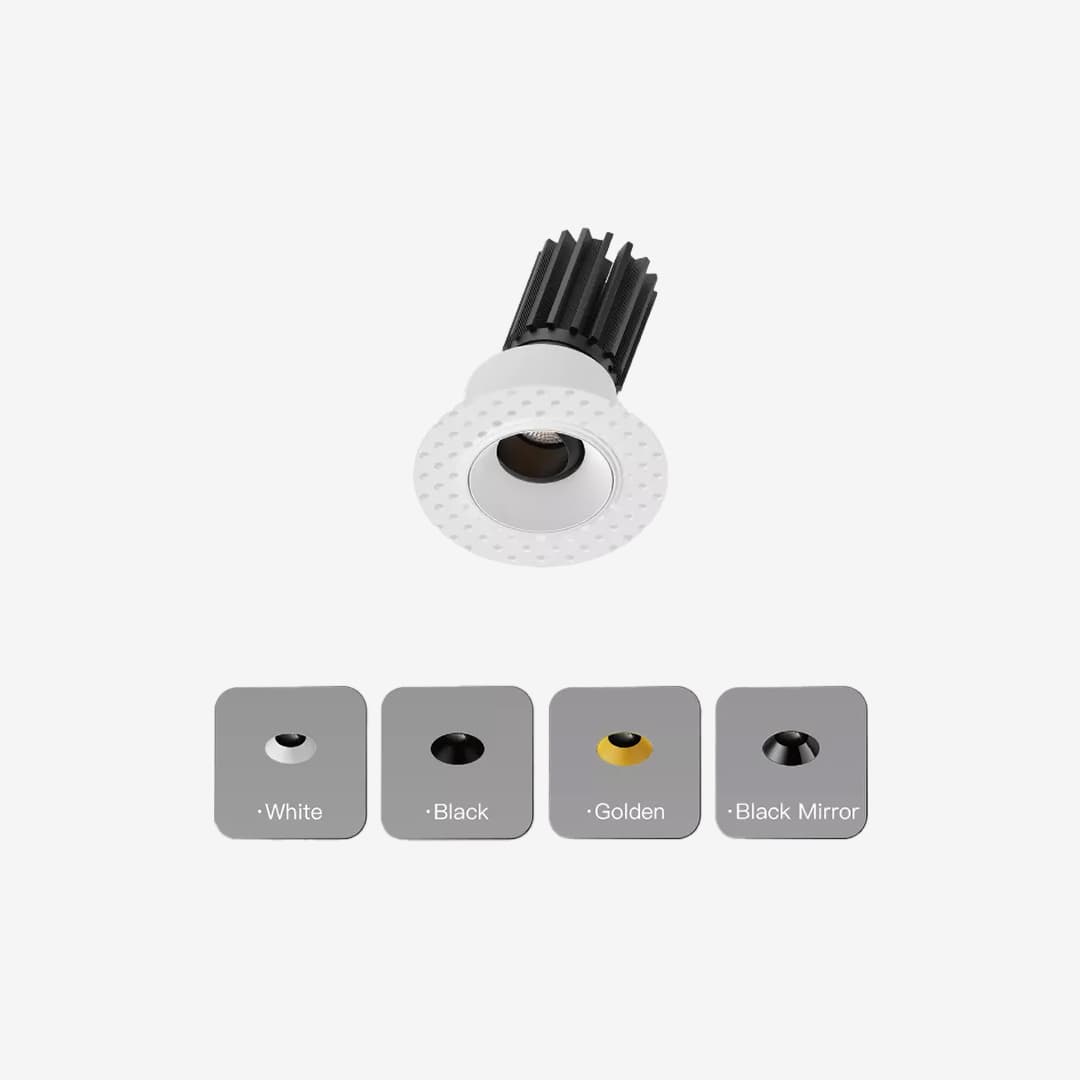

Reflector colour
Black · White
Driver
Remote driver · 0-10V · Triac · Dali2
Housing
None · Flat Bracket · Non-IC Housing · IC-Housing
Tethered control
Casambi · Tuya
Certification
Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
Warranty
5 years

Downloads

  • Spec sheetPDF
  • IES photometric filesOn request
  • Installation guidePDF
  • Revit and CAD blocksOn request

Anything marked on request we will send the same day. Ask at info@nuordic.com.
