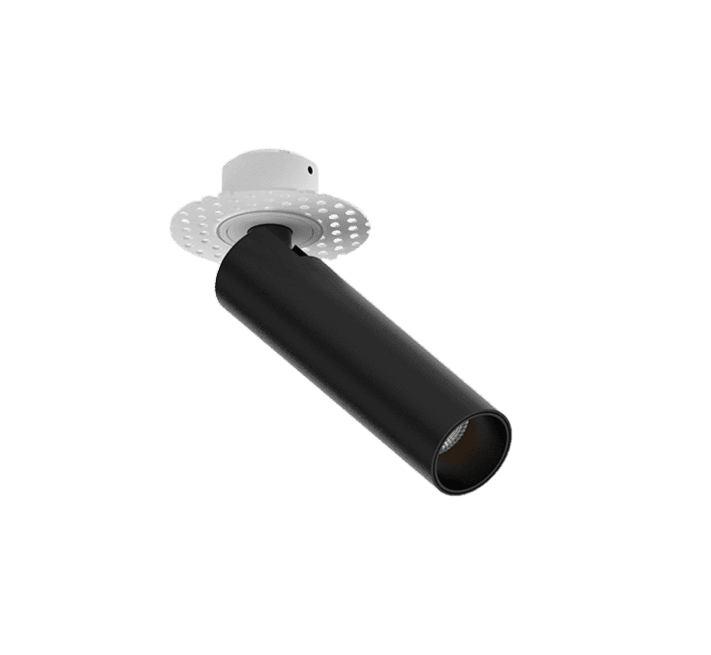

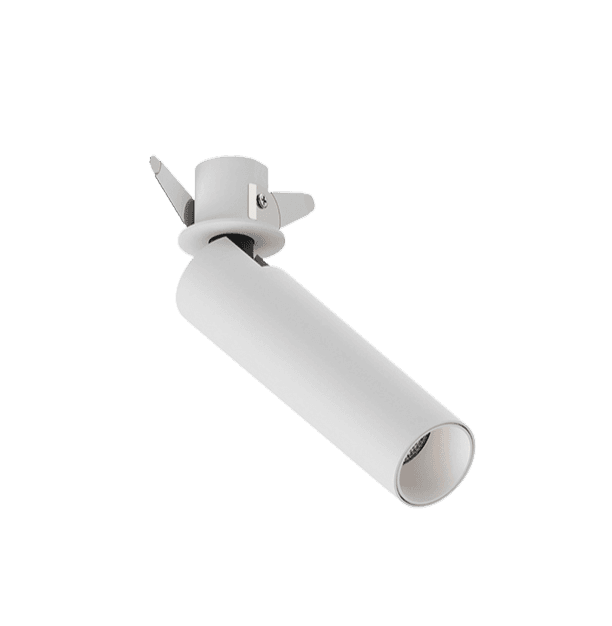

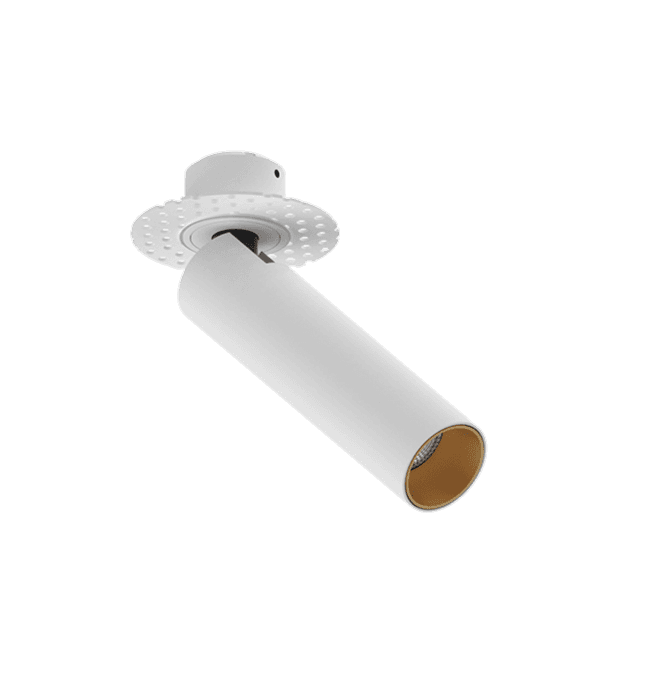

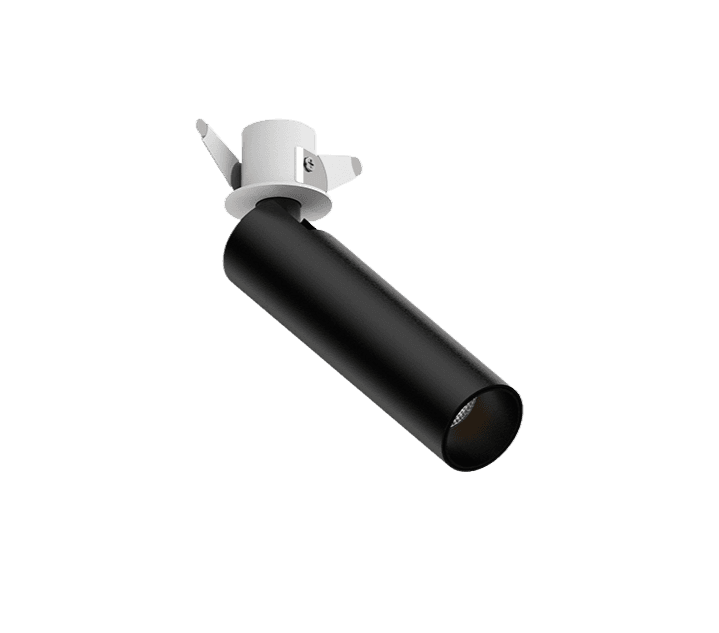

1 Inch Spotlight
Model N45-R26 · 3 trims

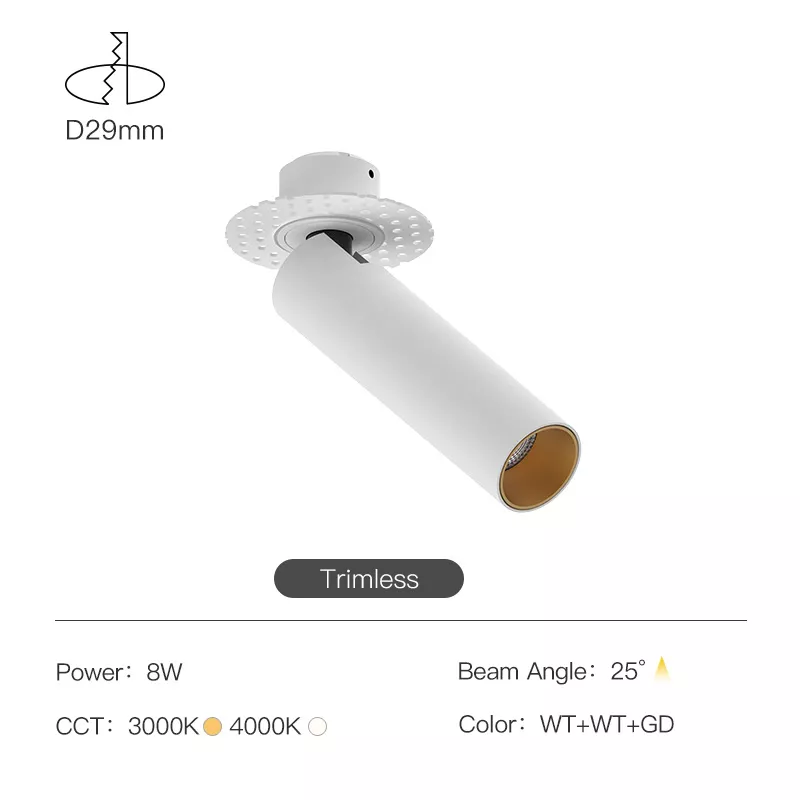

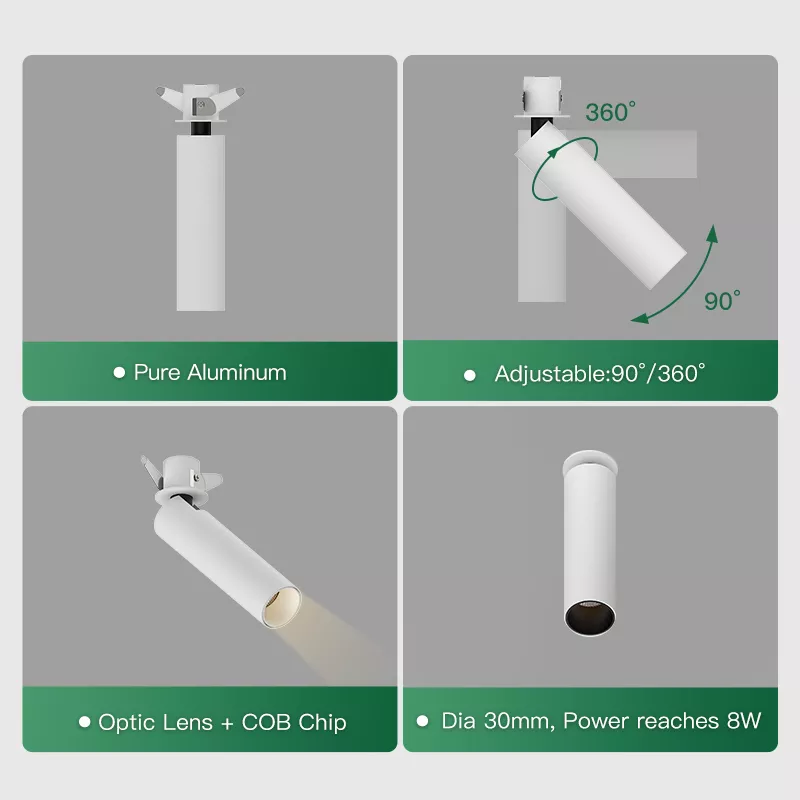

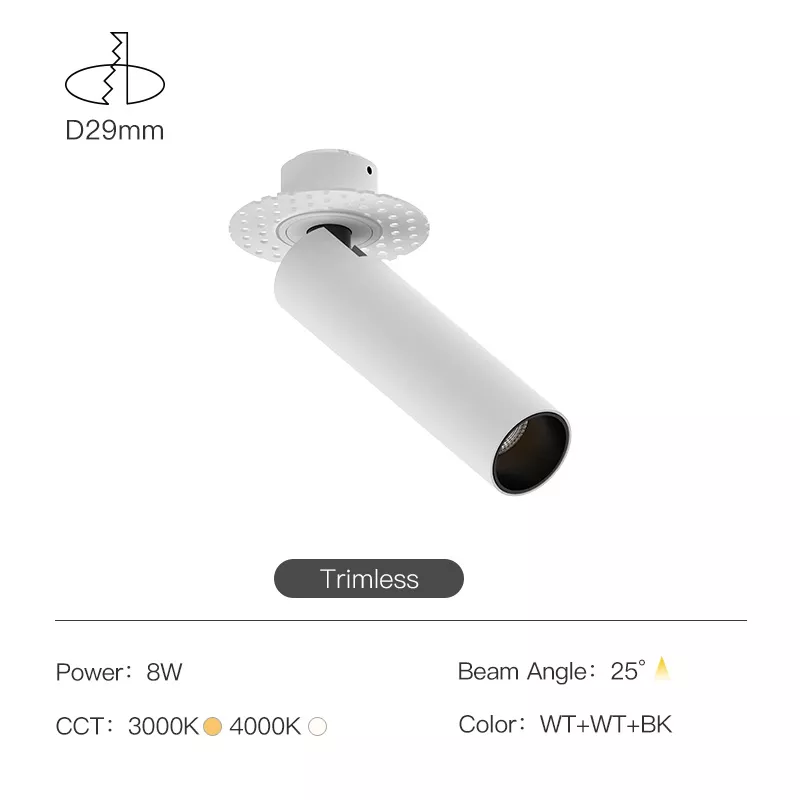

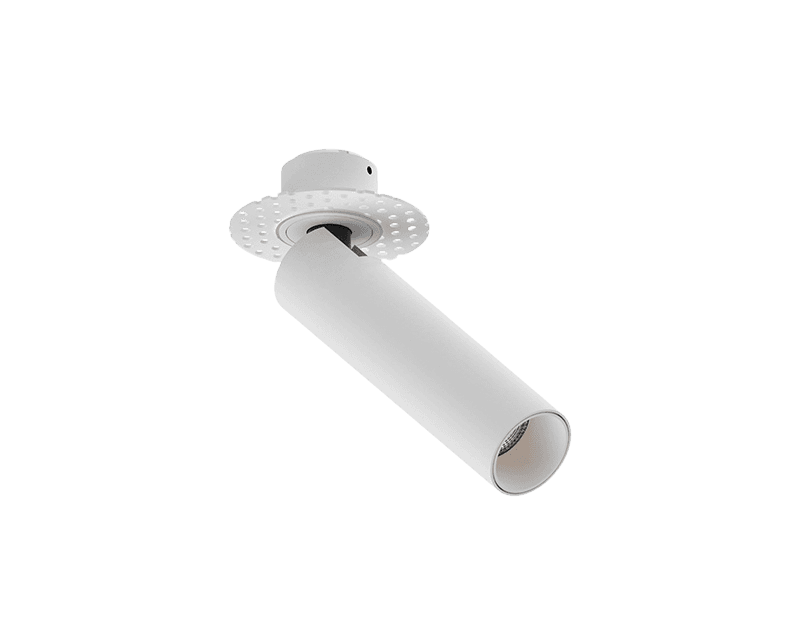

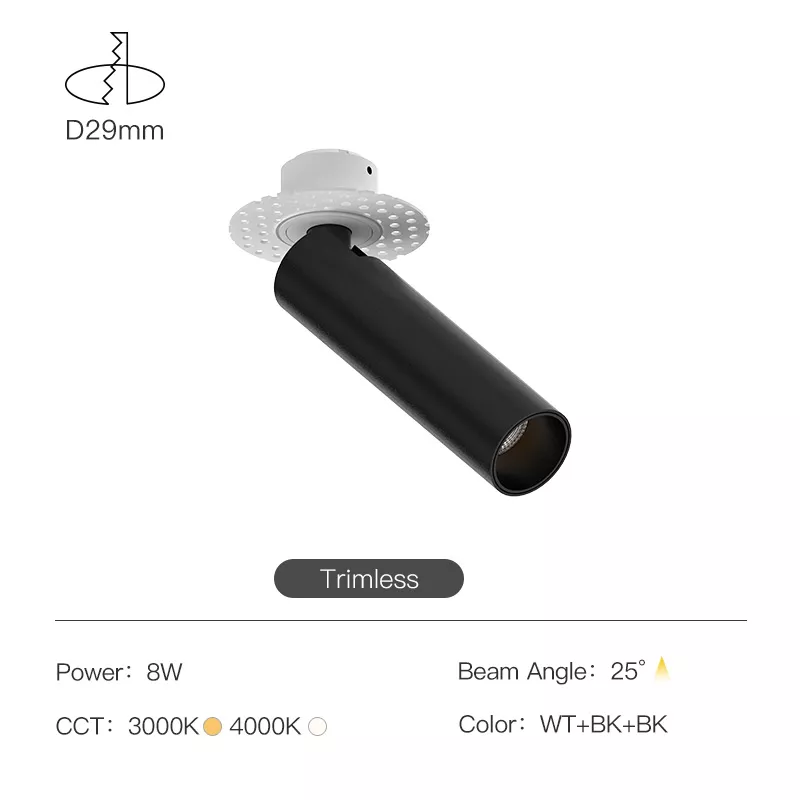

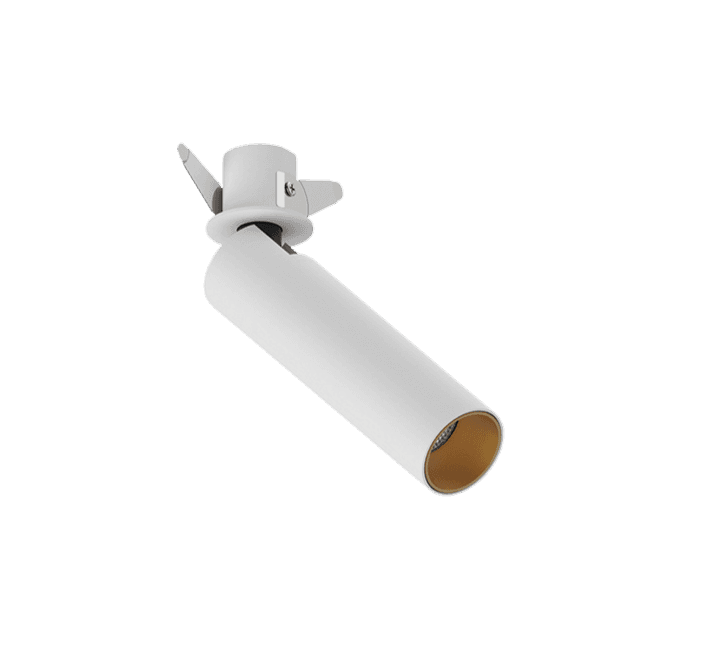

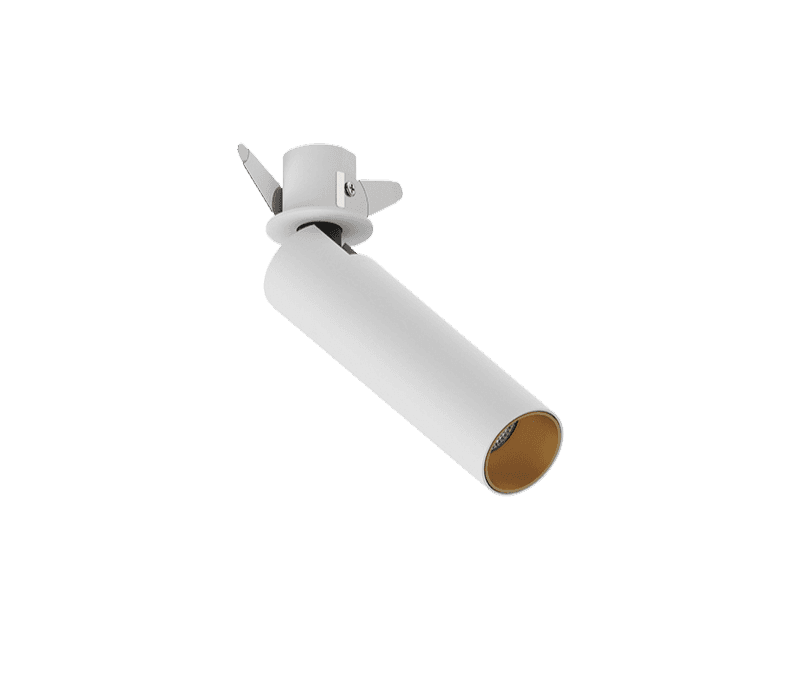

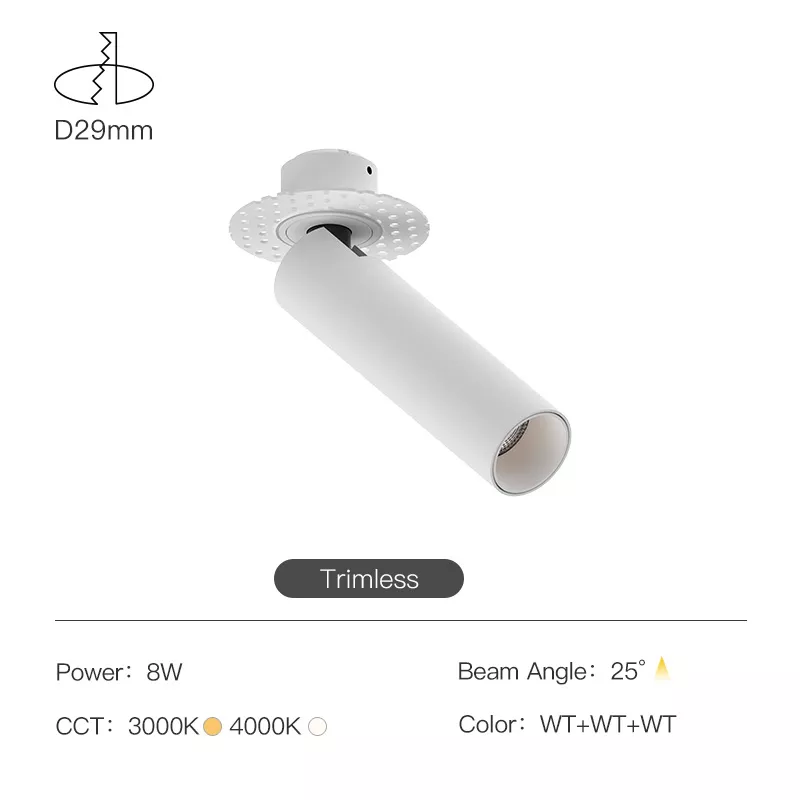

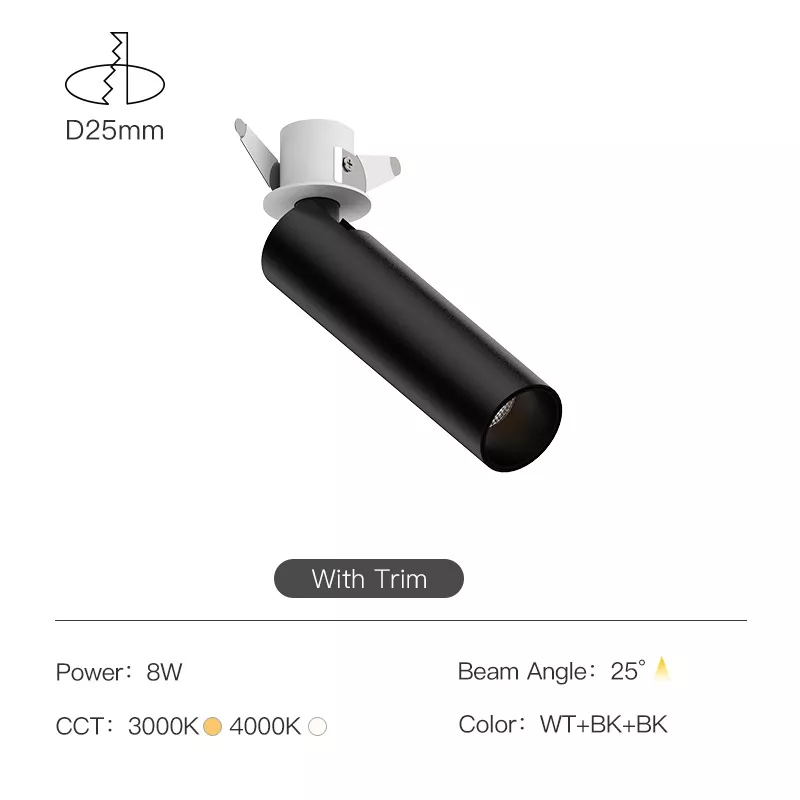

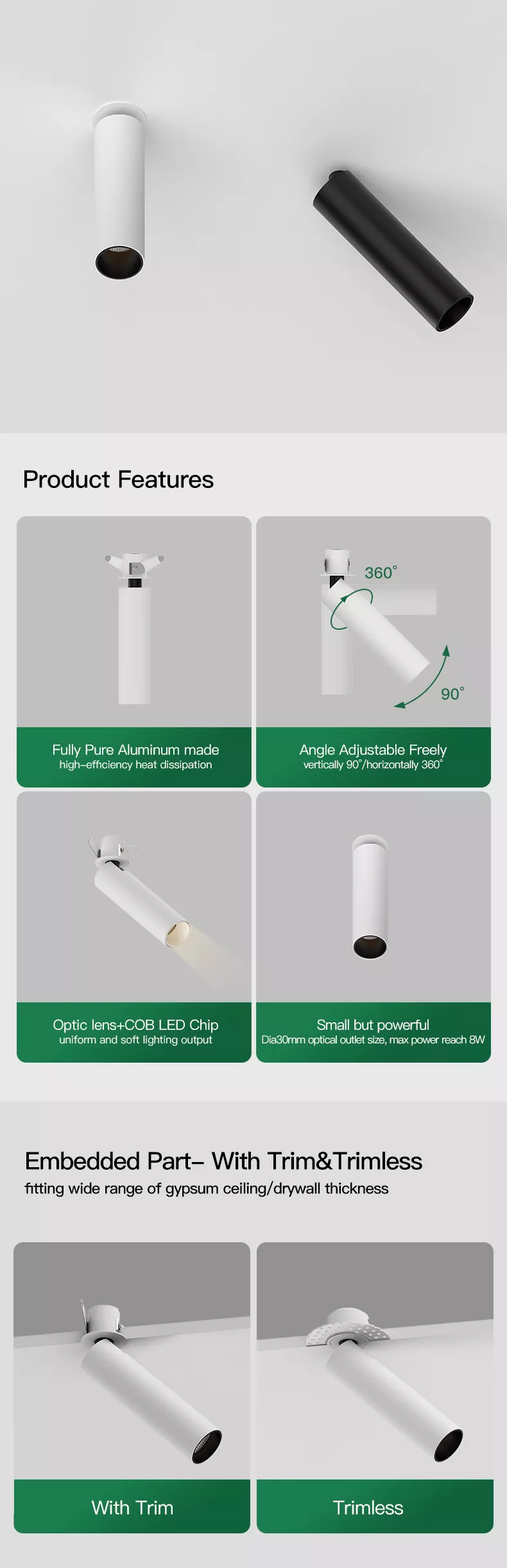

The 1 inch spotlight is a premium recessed LED fixture that delivers exceptional lighting performance in a remarkably compact form. Available in both trim and trimless options, this versatile spotlight features high-quality pure aluminum construction with customizable trim finishing in white, black, or gold. With a maximum power of 8W and exceptional color rendering (up to 97 Ra), this spotlight provides brilliant illumination while maintaining energy efficiency. Choose from multiple beam angles (15°, 25°, or 35°) and color temperatures (from warm 1800K to cool 6000K) to create your desired lighting effect. The 90° or 360° light direction options allow for precise accent lighting or general illumination. Perfect for retail displays, galleries, residential accent lighting, and architectural highlighting where space is limited but premium lighting quality is essential.
- Beam
- 15-80°
- Color
- 97 CRI
- Ingress
- IP20-65
- Output
- 8 W
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- ETLIntertek listed
- FCC
- CEEU conformity
- IP65Wet location
Ratings apply per build. The IP65 rating belongs to the builds that carry it, not to every option on this page.
Configurator
Build the fixture, get the order code.
Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.
1 of 12 required
Shape (required)
RequiredCOB Chip (required)
RequiredCCT (required)
RequiredColour Temperature
n/aBeam Angle (required)
RequiredIP Rating (required)
RequiredTrim (required)
RequiredReflector Colour (required)
RequiredTrim Colour (required)
RequiredDriver (required)
RequiredHousing (required)
RequiredTethered Controller (required)
RequiredOrder code
N45-····-··-XK-··-··-····-··-··-··-··
11 required axes remaining
Configured price
$165.00
Photometrics
See what the beam does before you cut the hole.
Pick an optic, a mounting height and a color temperature. One set of inputs drives all four views: the beam in section, the polar distribution, the spacing a run sets out at, and color rendition. Tested IES files for every build are in the downloads below.
Beam angle
Ceiling height
Colour temperature
DistanceFocus Ø
1.0 m0.44 m
2.0 m0.89 m
Floor · 2.74 m1.22 m
The diameter is geometry from the rated beam angle and holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.
N45 · Beam section25° · 3000K · 9 ft ceilingScale varies

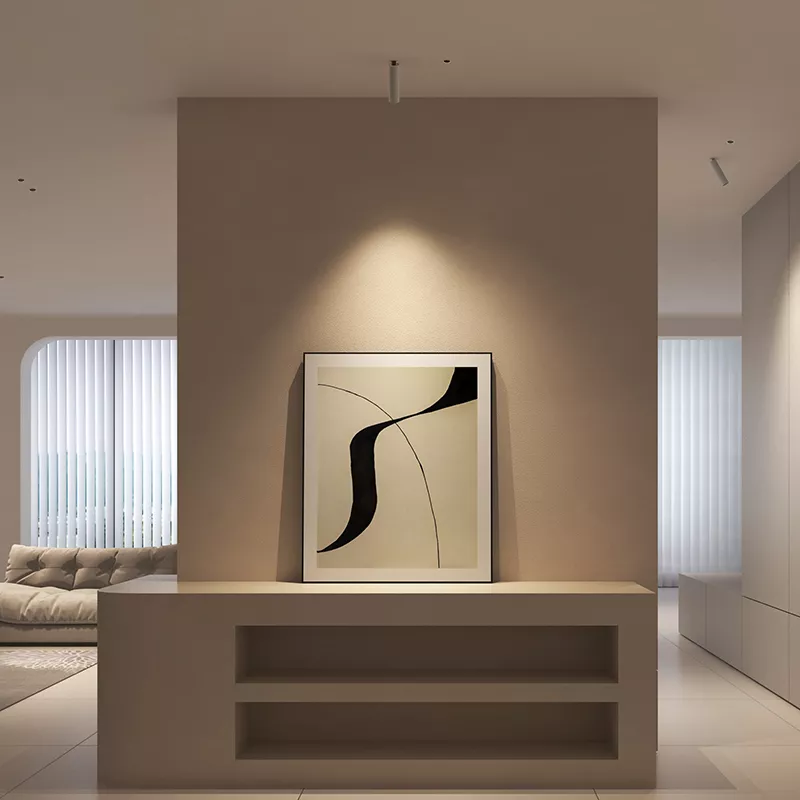

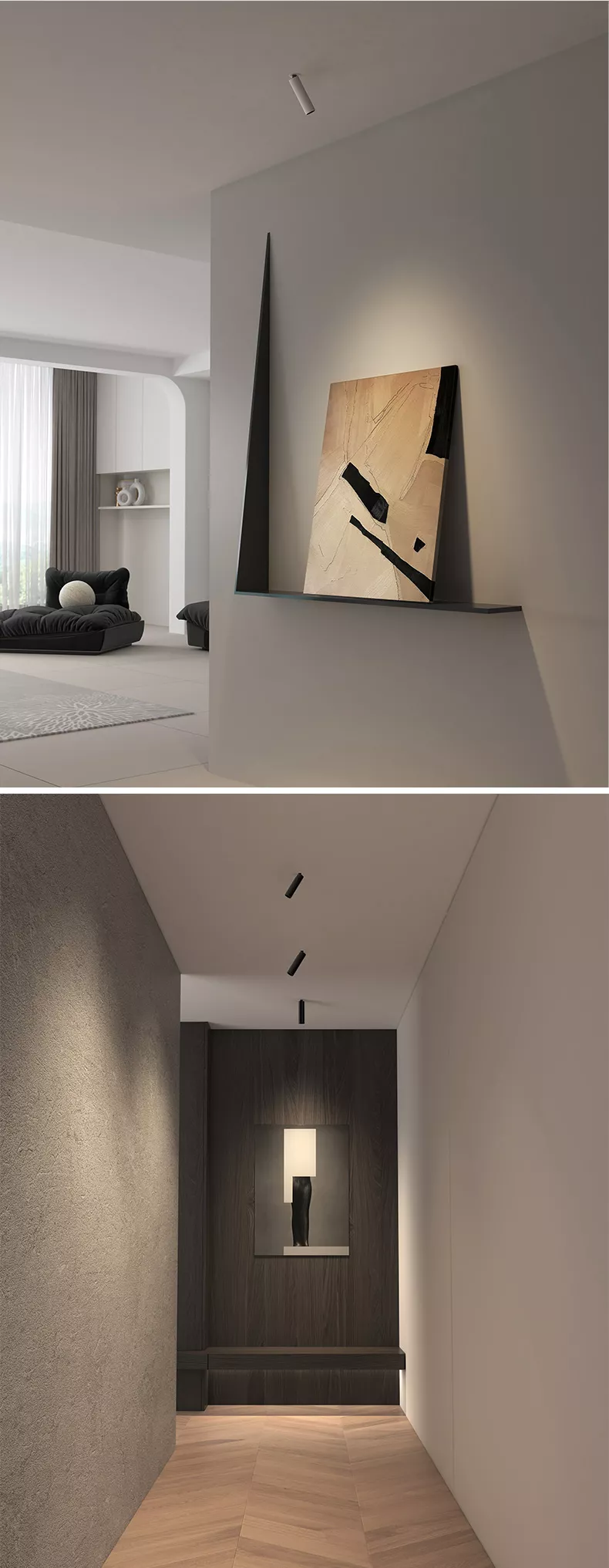

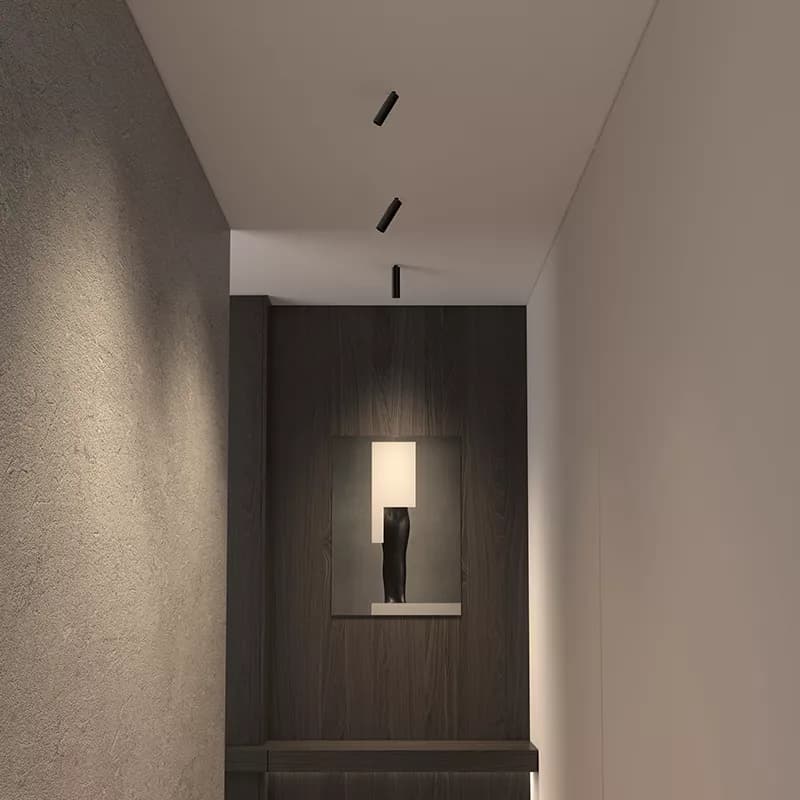

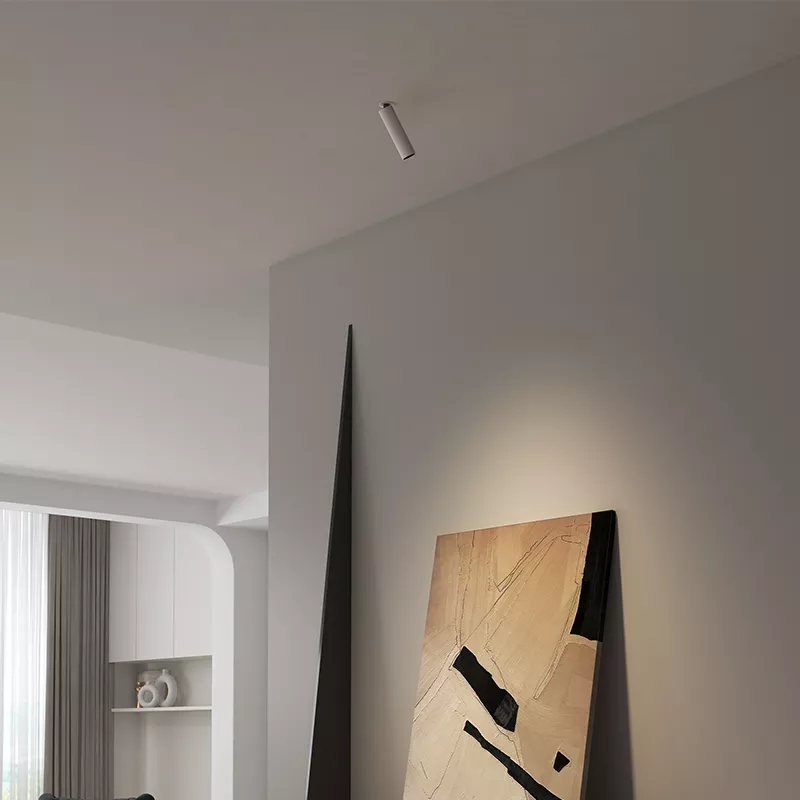

Installed
At work in projects we lit.

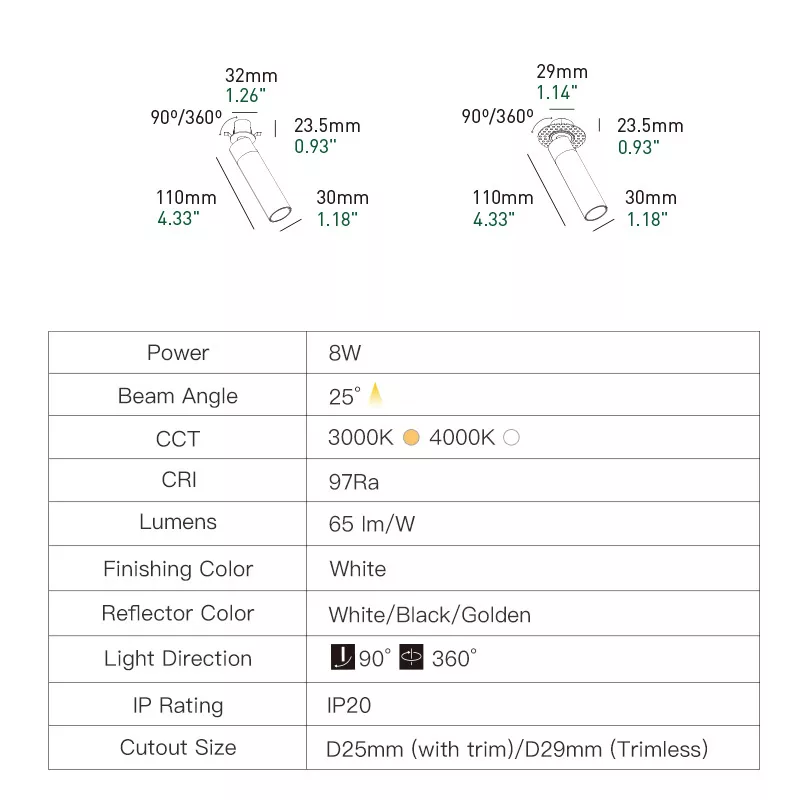

Technical specification
- Material
- Cold Forged Aluminum
- Shape
- Round · Square
- COB chip
- 24V CV · 36V CC
- Colour
- Static CCT · 5CCT Switch · 2700K to 6000K · 1800K to 5500K · 3000K to 1800K · RGBW
- Beam angles
- 15° · 25° · 35° · 50° · 80°
- Ingress and aiming
- IP20 · IP44 · IP65
- Trim
- Trimless · Micro-flange · Millwork
- Reflector colour
- Black · White
- Driver
- Remote driver · 0-10V · Triac · Dali2
- Housing
- None · Flat Bracket · Non-IC Housing · IC-Housing
- Tethered control
- Casambi · Tuya
- Certification
- Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
- Warranty
- 5 years
Downloads
- Spec sheetPDF
- IES photometric filesOn request

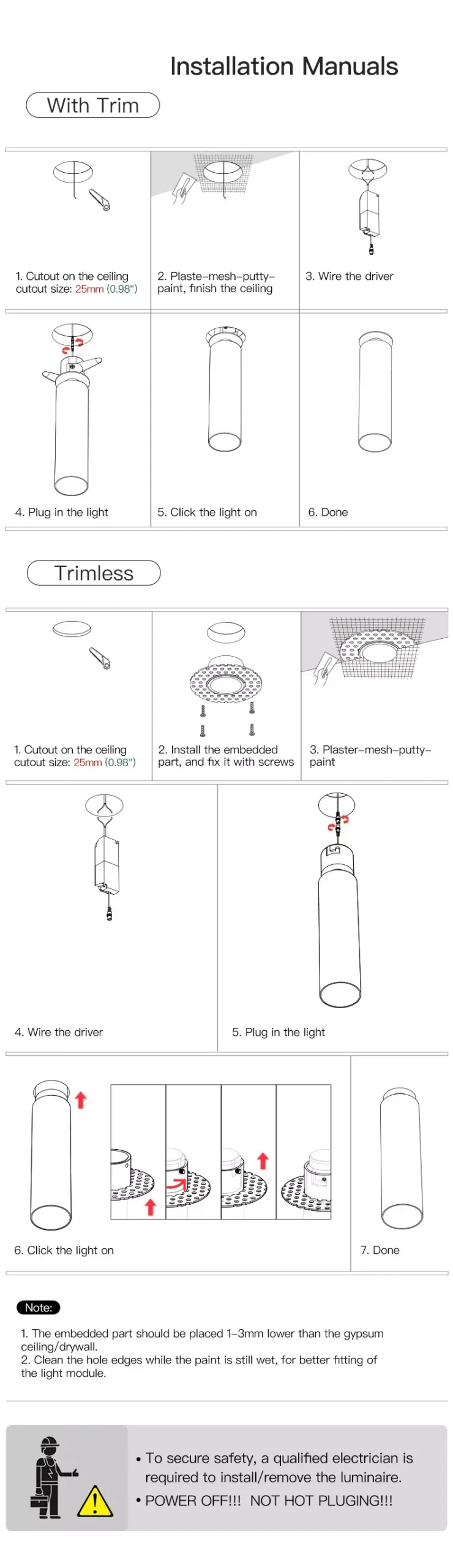

- Installation guidePDF
- Revit and CAD blocksOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
