Collections/Downlights/2 Inch Recessed Concave Gypsum Downlight
2 Inch Recessed Concave Gypsum Downlight
Downlights · 20 Degrees

2 Inch Recessed Concave Gypsum Downlight

Model N75-R31 · 3 trims

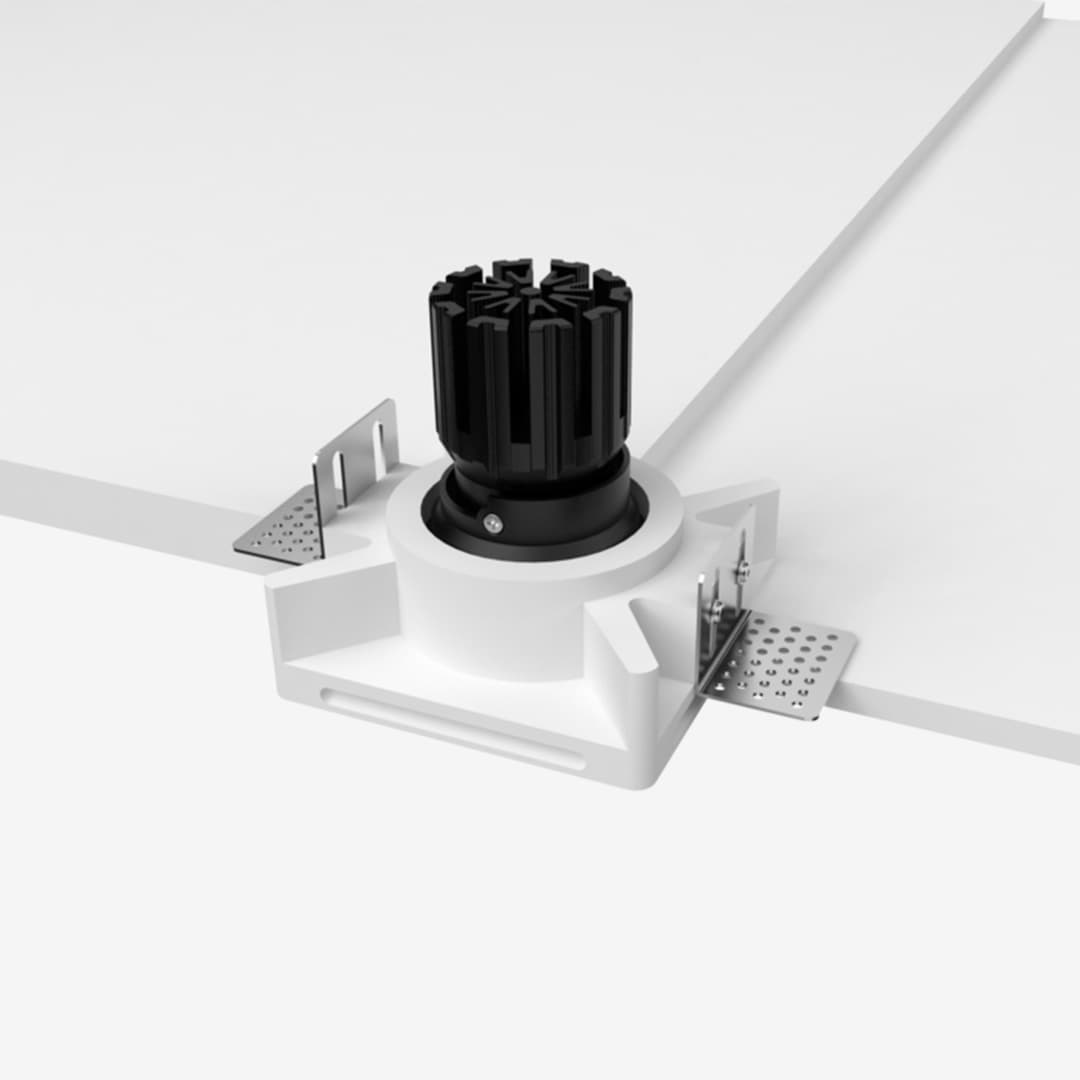

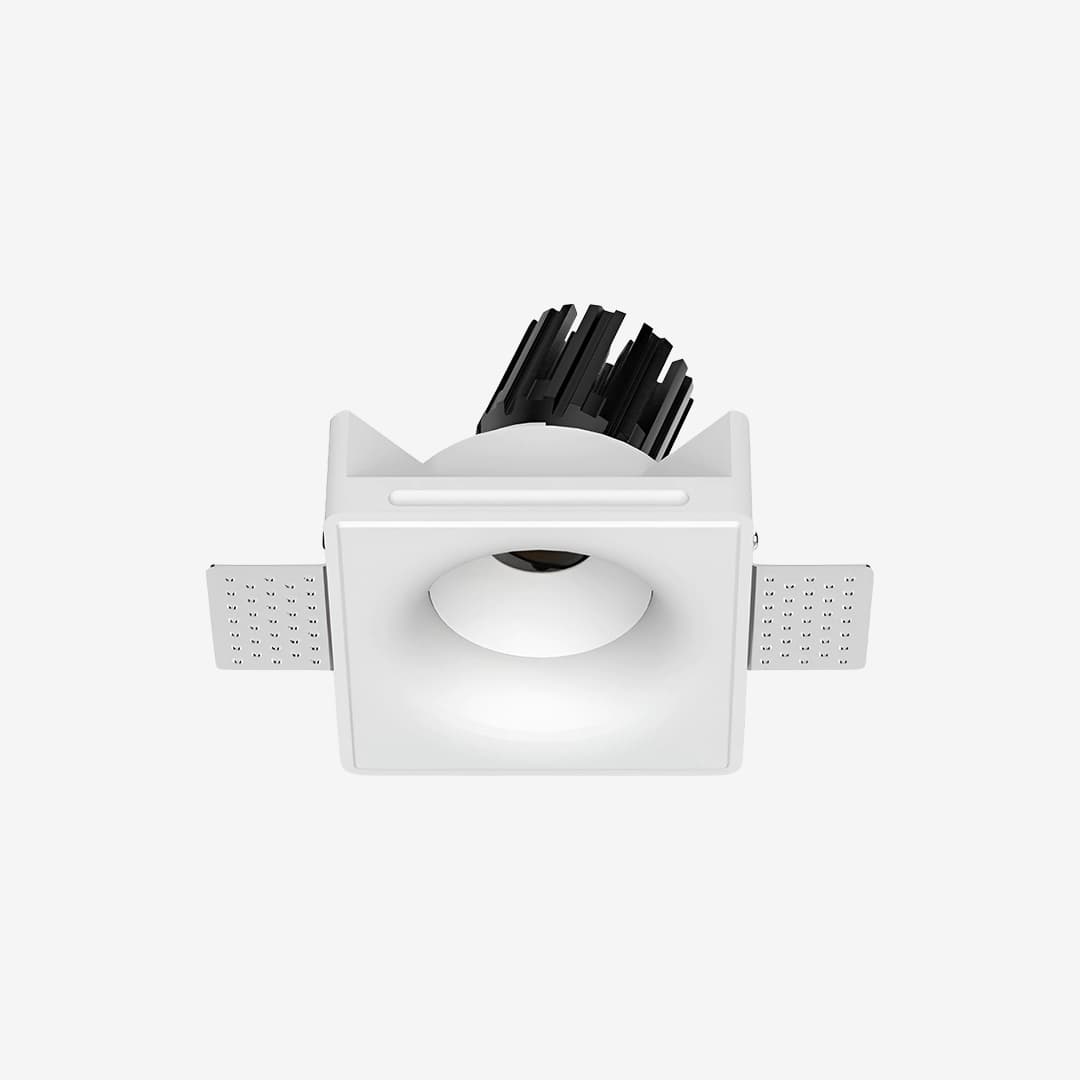

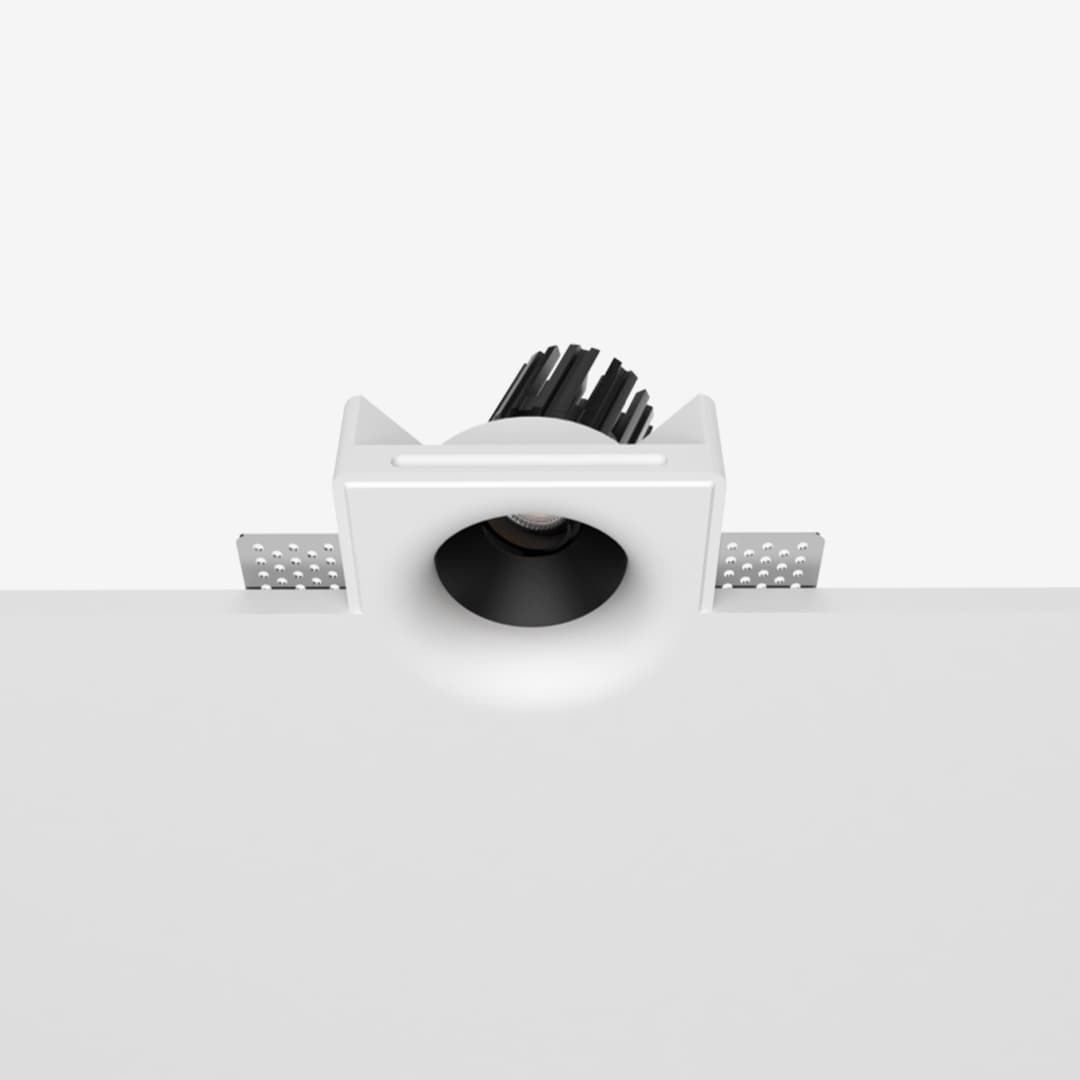

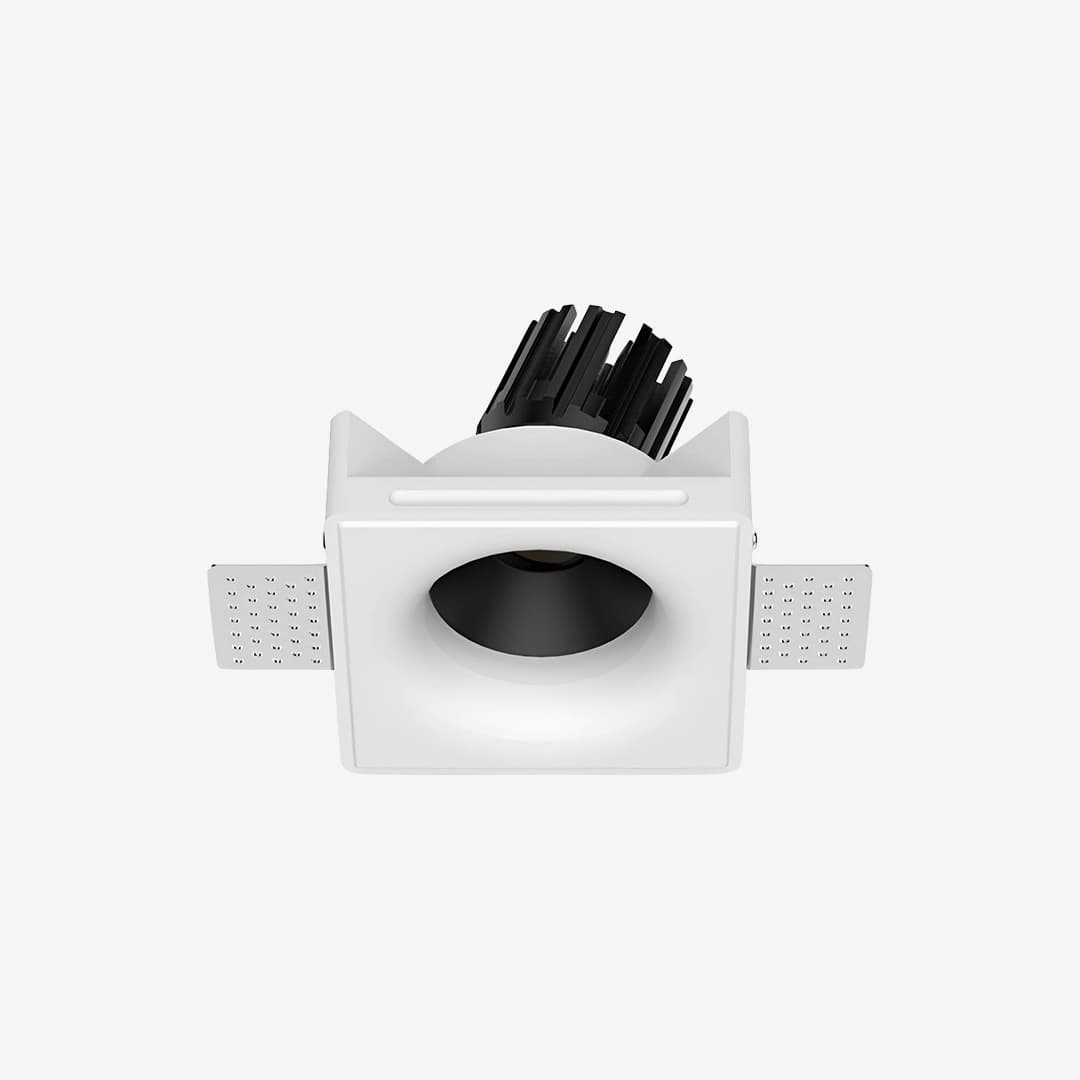

The 2 Inch Recessed Concave Gypsum Downlight is built for projects where lighting should enhance architecture without calling attention to itself. Designed with a plaster-in gypsum housing, the fixture is installed flush with drywall or plaster ceilings and finished on site. Once painted, the trim vanishes completely, leaving only a clean concave opening that feels intentional and minimal.

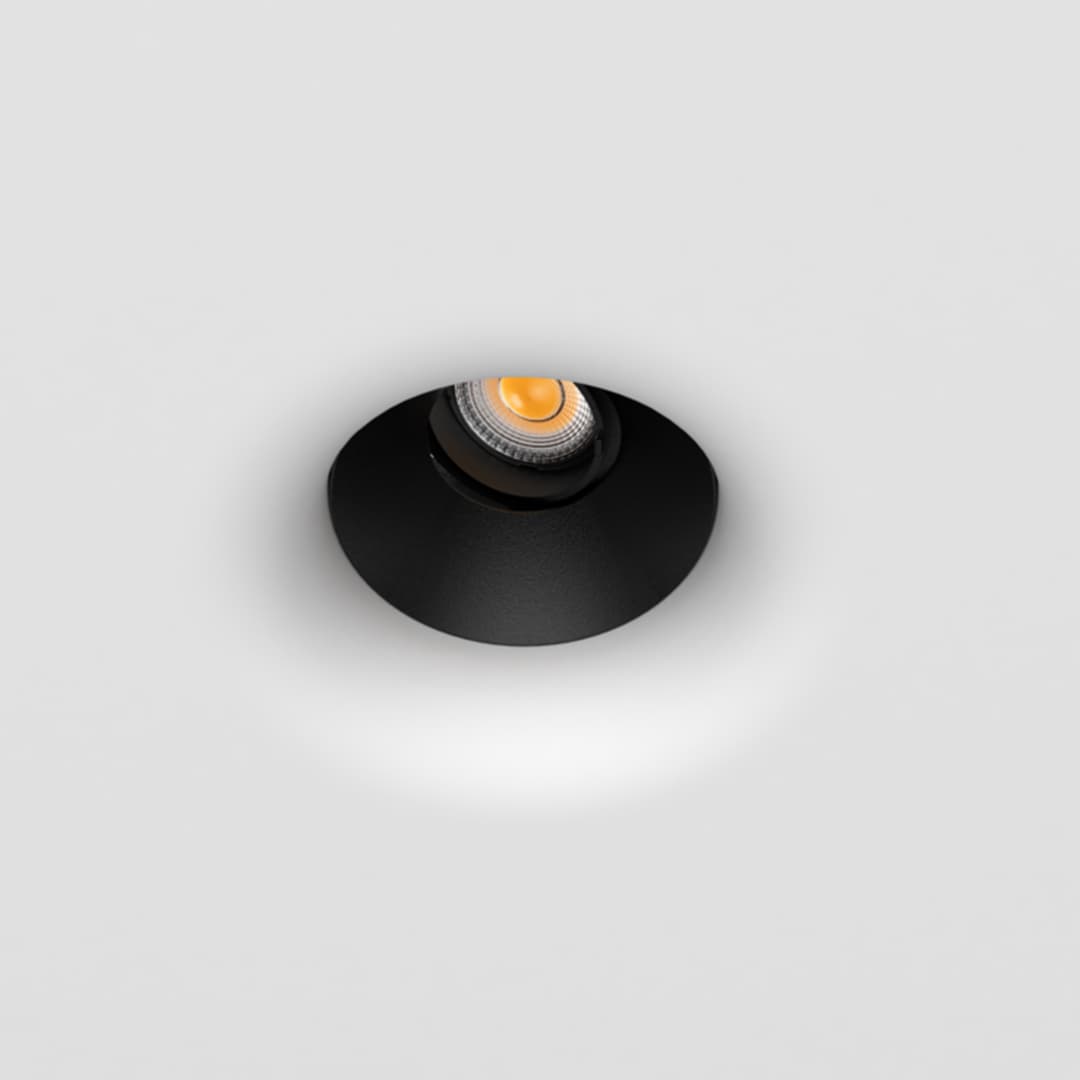

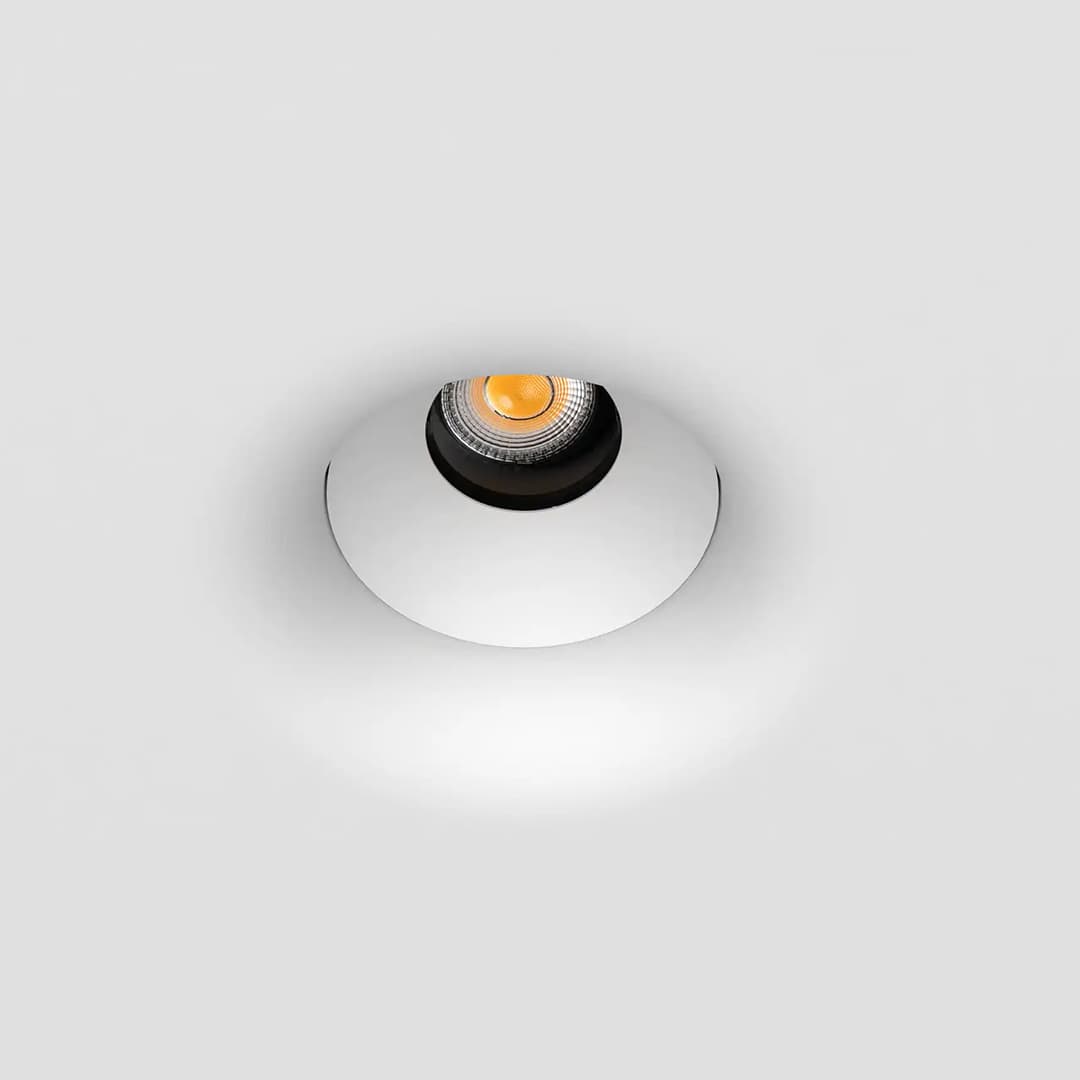

The concave geometry plays a key role in visual comfort. By recessing the light source deeper into the ceiling plane, glare is significantly reduced while maintaining focused, usable illumination. The result is a soft, controlled beam that highlights surfaces and objects without harsh cut-off or visual noise, making it ideal for living spaces, corridors, galleries, and hospitality interiors.

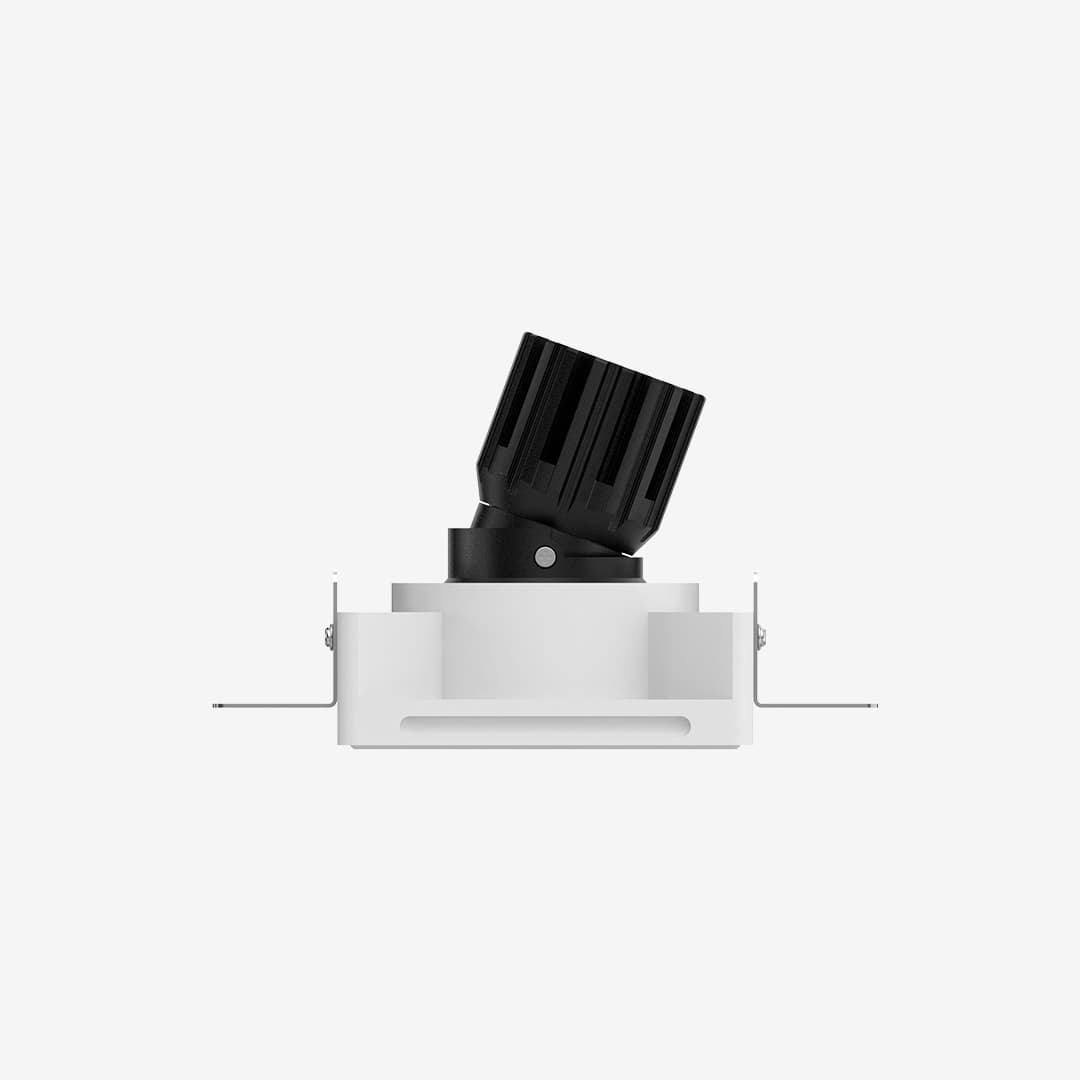

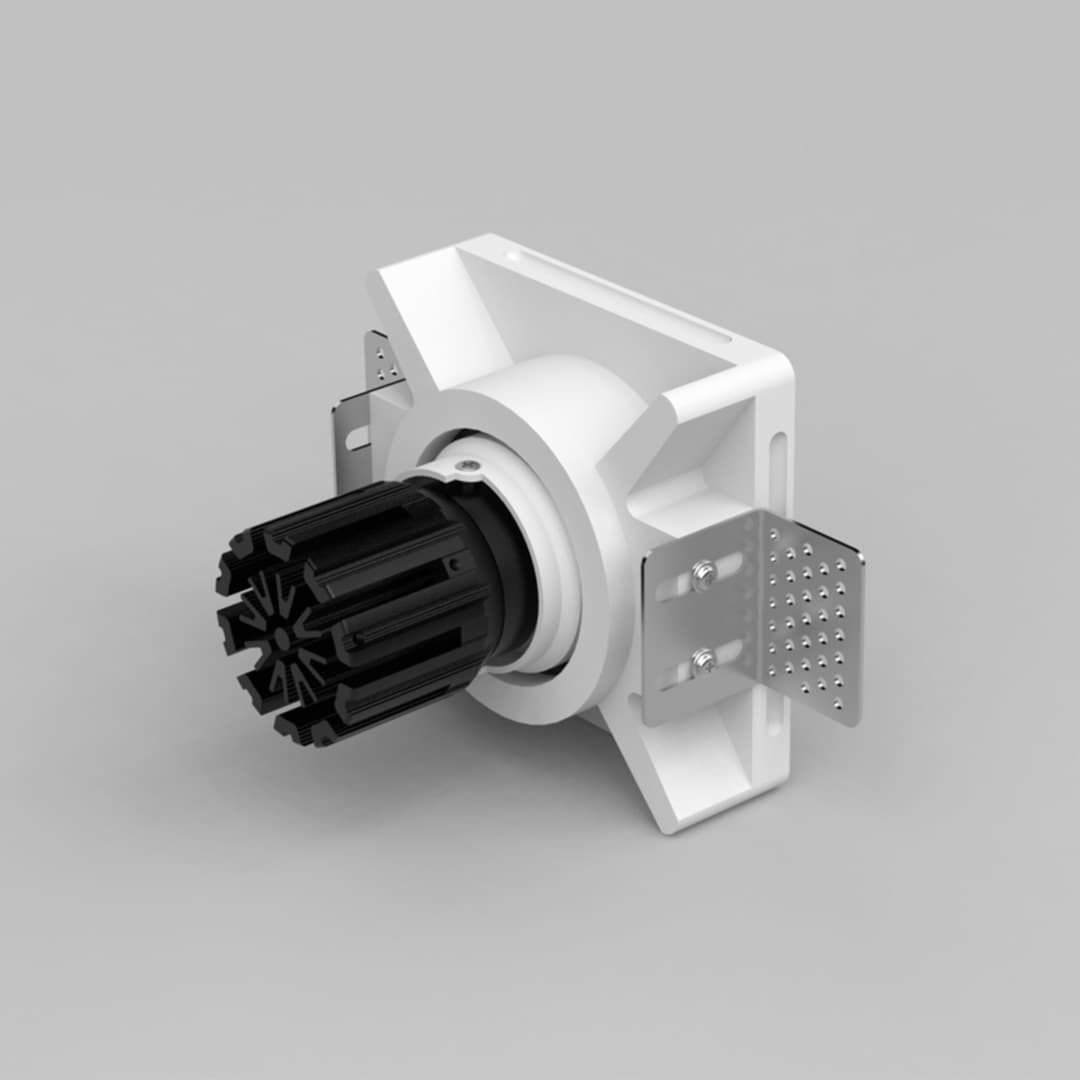

This model features an adjustable light module, allowing up to 20 degrees of tilt and full 360-degree rotation. This flexibility makes it suitable for accent lighting, artwork illumination, and directional applications where precise aiming is required. Despite its compact size, the downlight delivers strong performance through a high-quality COB LED paired with an optimized optic for clean beam definition and consistent output.

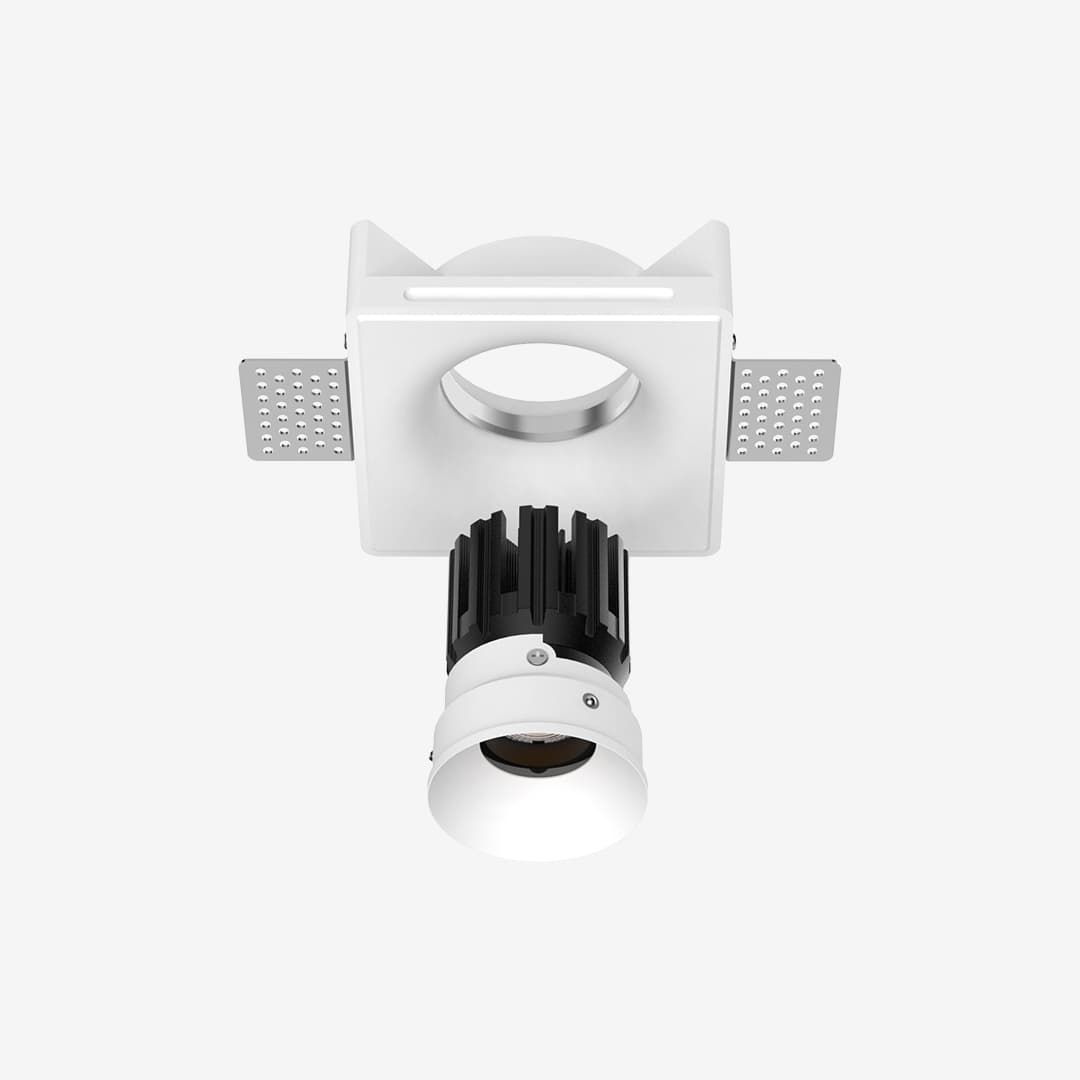

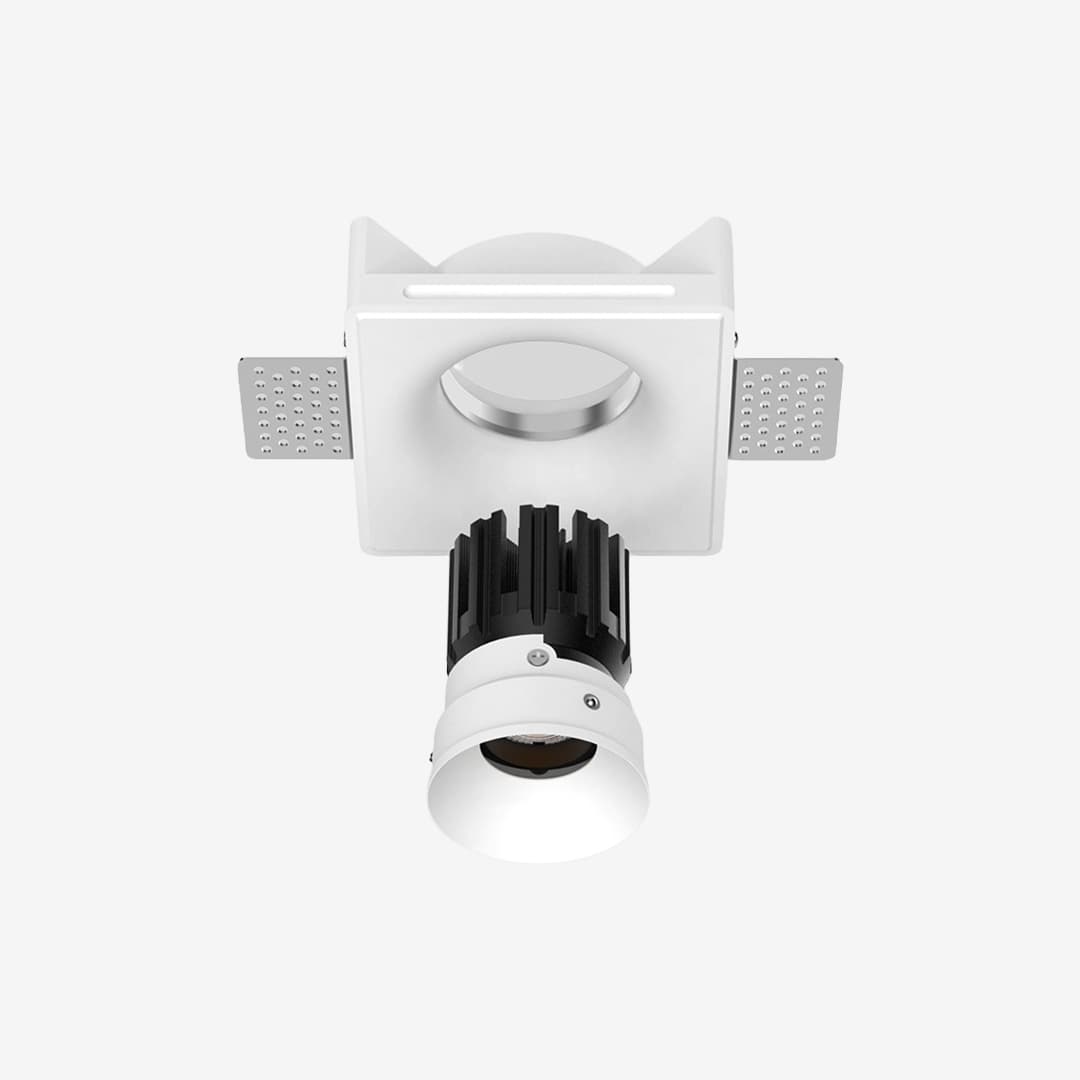

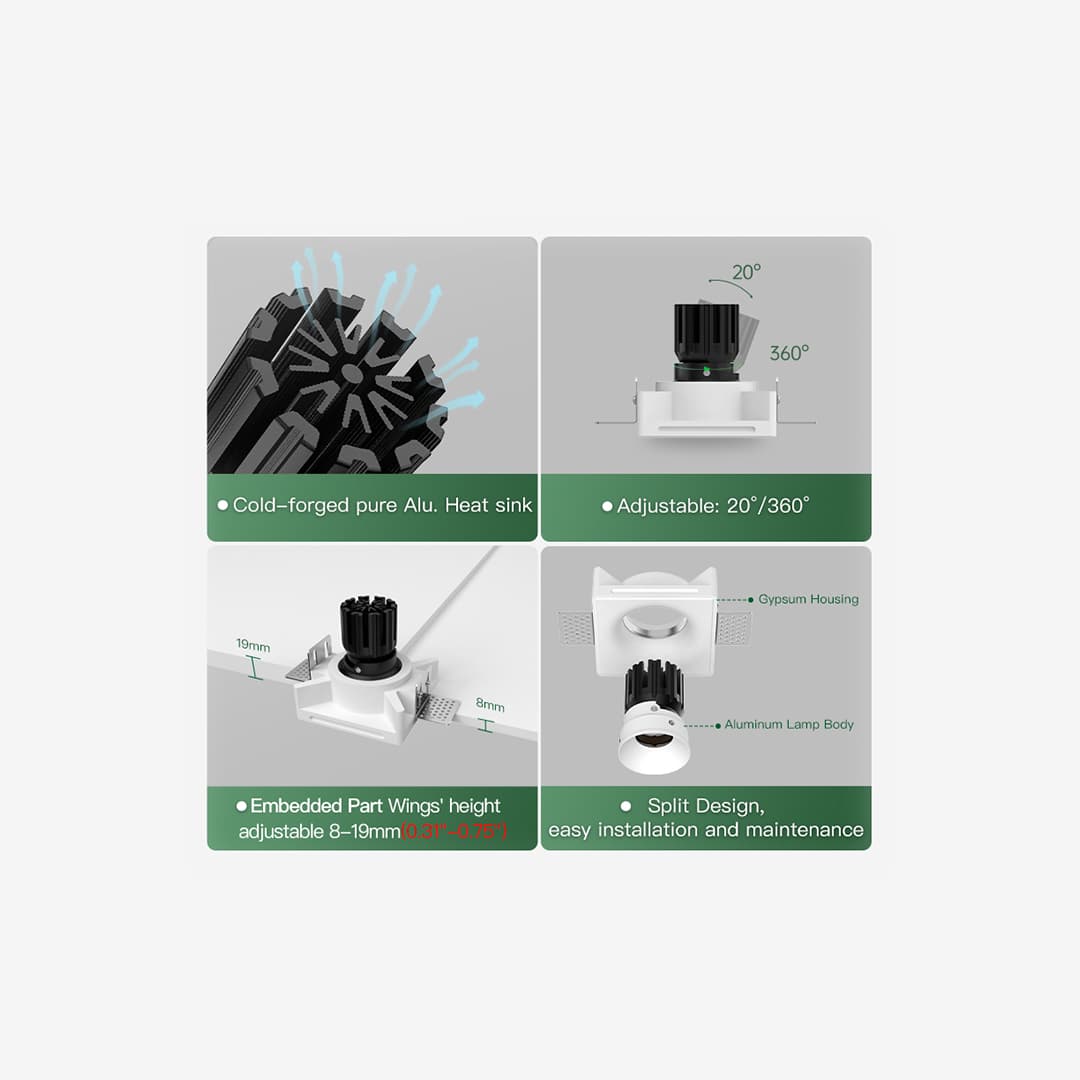

Thermal performance is handled by a cold-forged aluminum heat sink integrated into the lamp body, ensuring stable operation and long-term reliability. The split design allows for easier installation and future maintenance, even after the gypsum housing has been plastered and painted in place.

Designed exclusively as a trimless solution, this downlight is ideal for architects and designers seeking a refined, modern ceiling aesthetic with professional-grade performance. It fits naturally into minimalist interiors where every detail is deliberate and nothing feels added on.

Key points

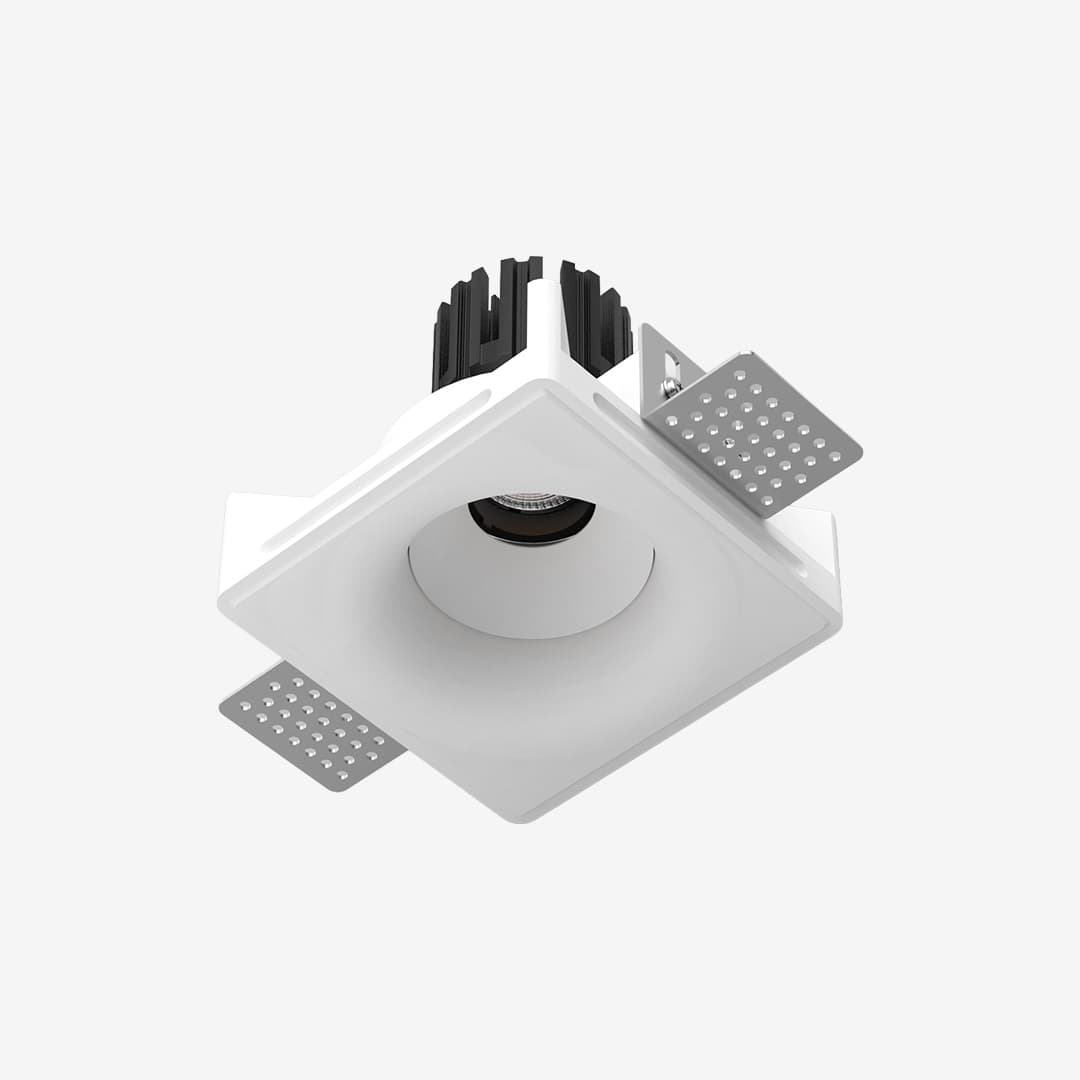

  • Trimless plaster-in gypsum housing for seamless ceilings

  • Concave recessed aperture for superior glare control

  • Adjustable beam with tilt and full rotation for precise aiming

  • High-CRI COB LED for accurate color rendering

  • Cold-forged aluminum heat sink for thermal stability

  • Split design for easier installation and maintenance

  • Ideal for residential, hospitality, and commercial interiors

  • Designed for dry interior environments

Beam
15-80°
Color
97 CRI
Ingress
IP20-65
Output
15 W
Configure this fixtureSpecs and downloads

Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.

Certified & rated

  • ETLIntertek listed
  • FCC
  • CEEU conformity
  • IP65Wet location

Ratings apply per build. The IP65 rating belongs to the builds that carry it, not to every option on this page.

Configurator

Build the fixture, get the order code.

Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.

1 of 12 required

Shape (required)

Required

COB Chip (required)

Required

CCT (required)

Required

Colour Temperature

n/a

Beam Angle (required)

Required

IP Rating (required)

Required

Trim (required)

Required

Reflector Colour (required)

Required

Trim Colour (required)

Required

Driver (required)

Required

Housing (required)

Required

Tethered Controller (required)

Required

Order code

N75-····-··-XK-··-··-····-··-··-··-··

11 required axes remaining

Configured price

$189.00

Photometrics

See what the beam does before you cut the hole.

Pick an optic, a mounting height and a color temperature. One set of inputs drives all four views: the beam in section, the polar distribution, the spacing a run sets out at, and color rendition. Tested IES files for every build are in the downloads below.

Beam angle
Ceiling height
Colour temperature
DistanceFocus Ø
1.0 m0.44 m
2.0 m0.89 m
Floor · 2.74 m1.22 m

The diameter is geometry from the rated beam angle and holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.

h = 9 ft / 2.74 m25° beam · 3000KFocus 1.22 m / 4.0 ft
N75 · Beam section25° · 3000K · 9 ft ceilingScale varies

Installed

At work in projects we lit.

View projects →

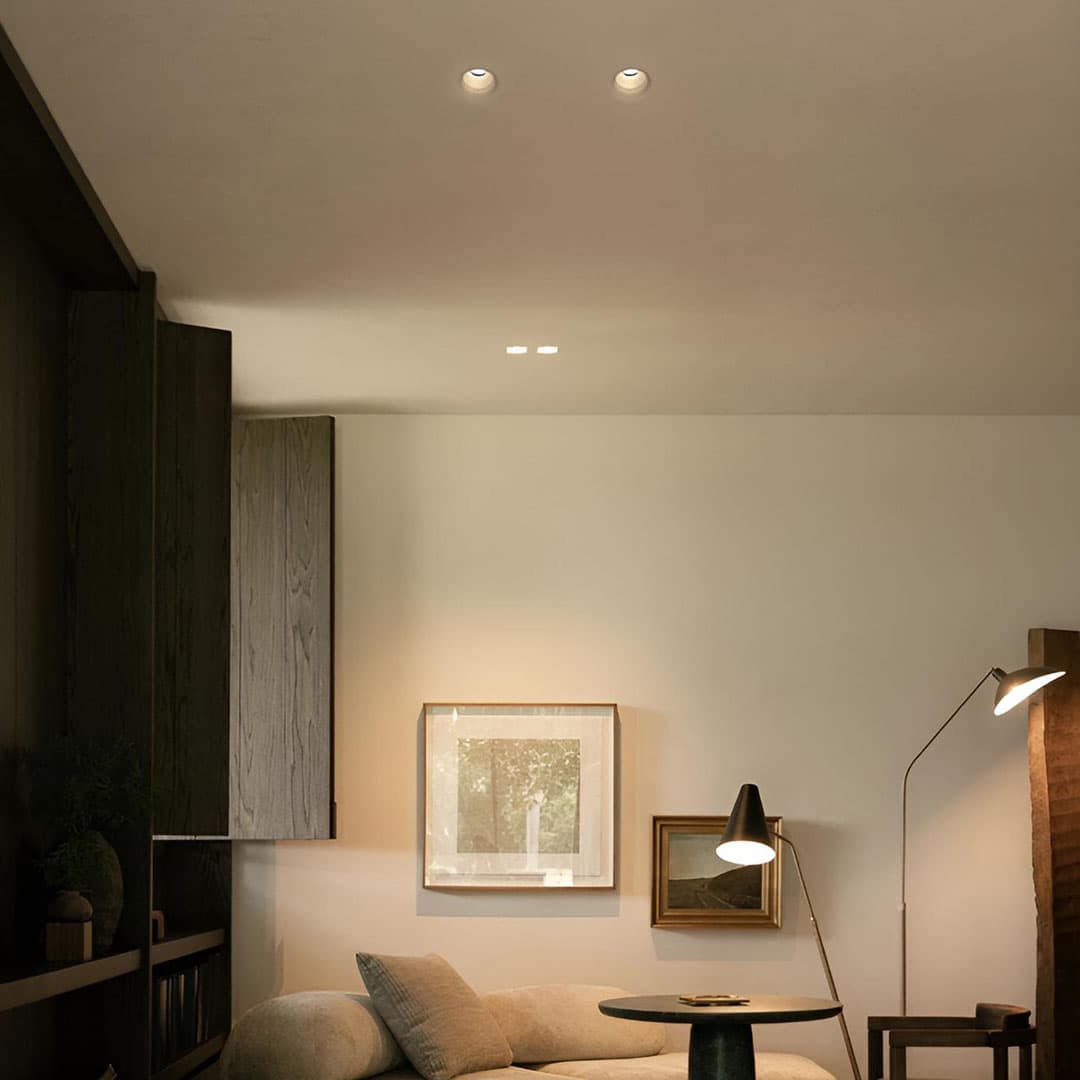

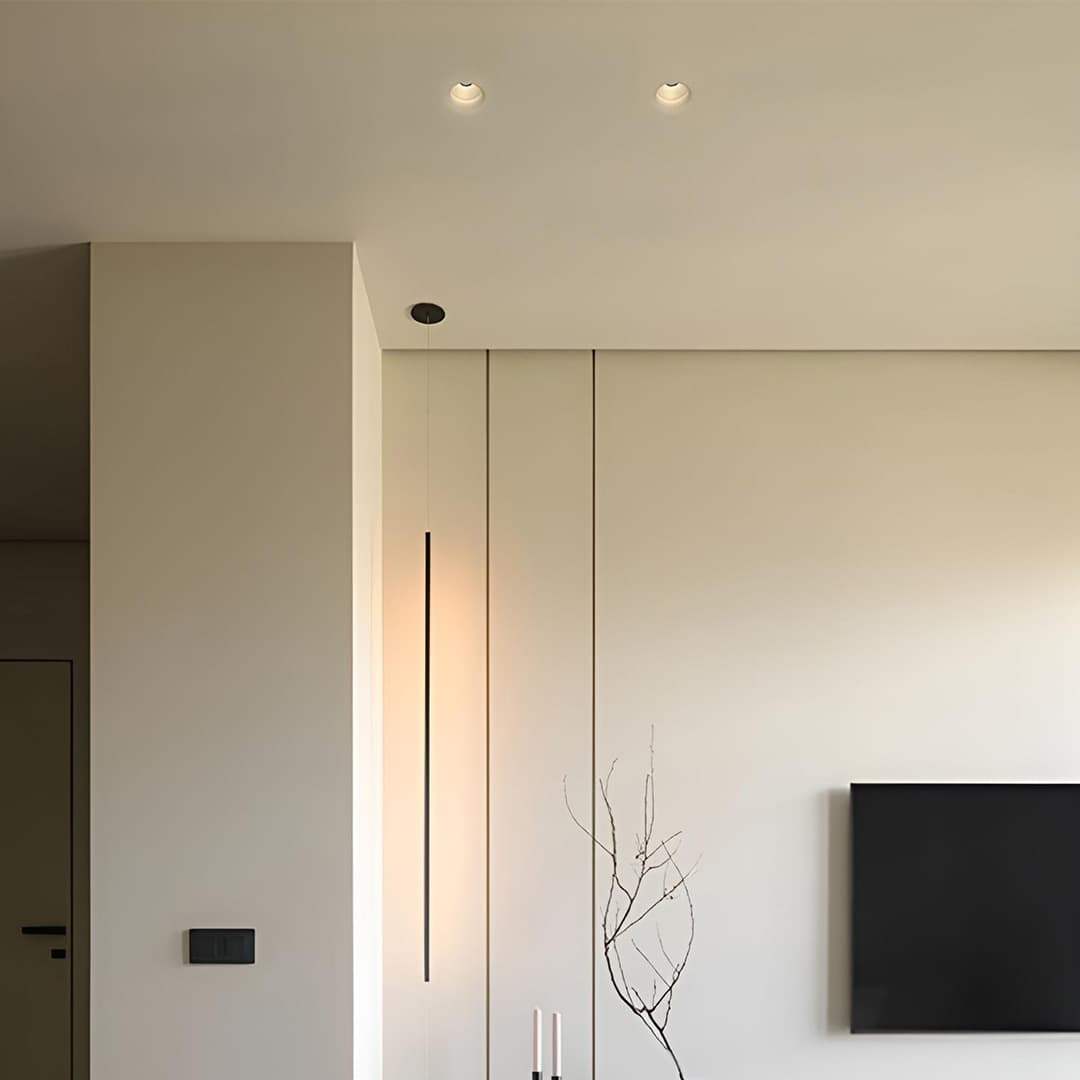

Recessed downlights set flush into a plaster ceiling
A pair of recessed downlights in an unbroken ceiling plane

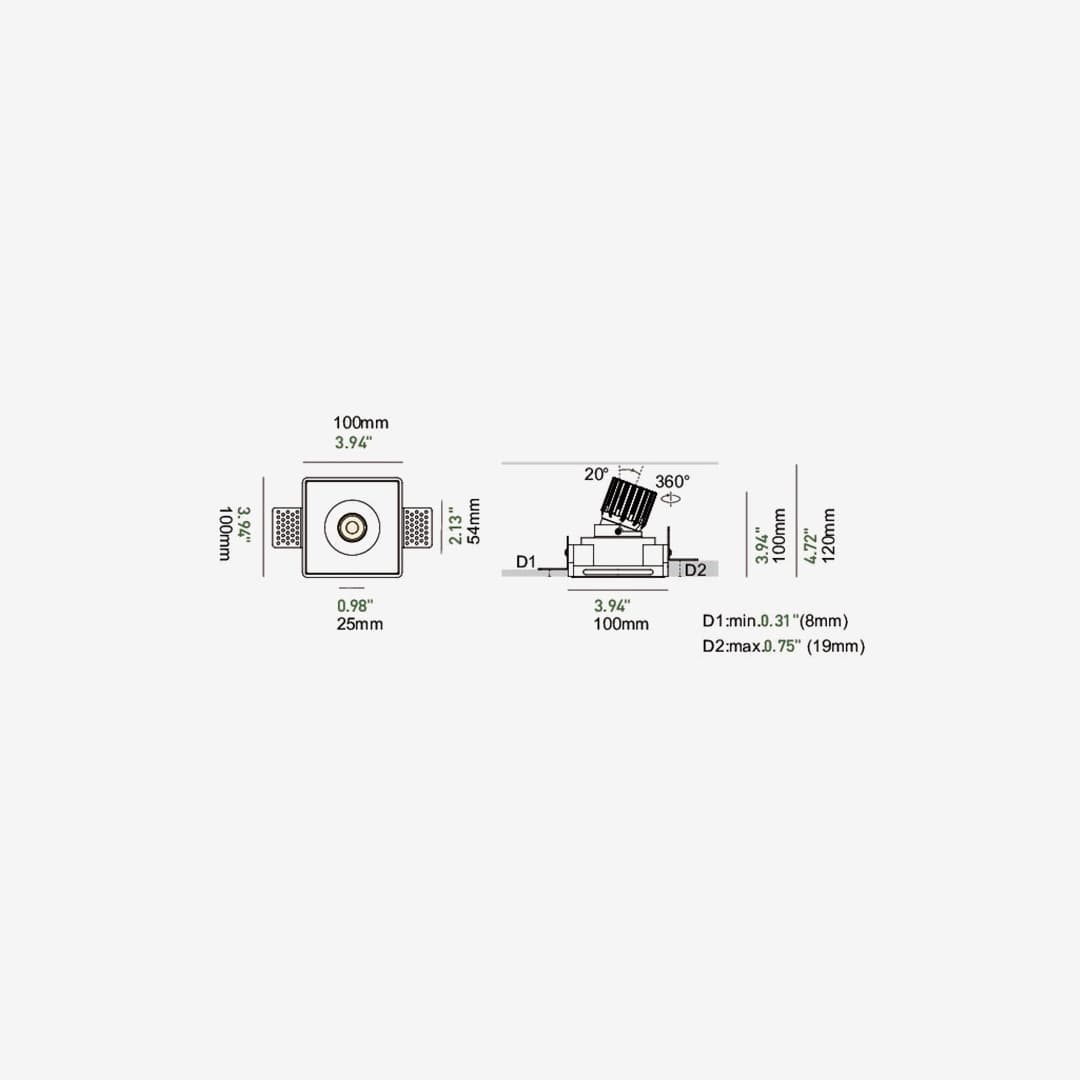

Technical specification

Material
Gypsum Housing, Aluminum Body
Shape
Round · Square
COB chip
24V CV · 36V CC
Colour
Static CCT · 5CCT Switch · 2700K to 6000K · 1800K to 5500K · 3000K to 1800K · RGBW
Beam angles
15° · 25° · 35° · 50° · 80°
Ingress and aiming
IP20 · IP44 · IP65
Trim
Trimless · Micro-flange · Millwork
Reflector colour
Black · White
Driver
Remote driver · 0-10V · Triac · Dali2
Housing
None · Flat Bracket · Non-IC Housing · IC-Housing
Tethered control
Casambi · Tuya
Certification
Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
Warranty
5 years

Downloads

  • Spec sheetPDF
  • IES photometric filesOn request

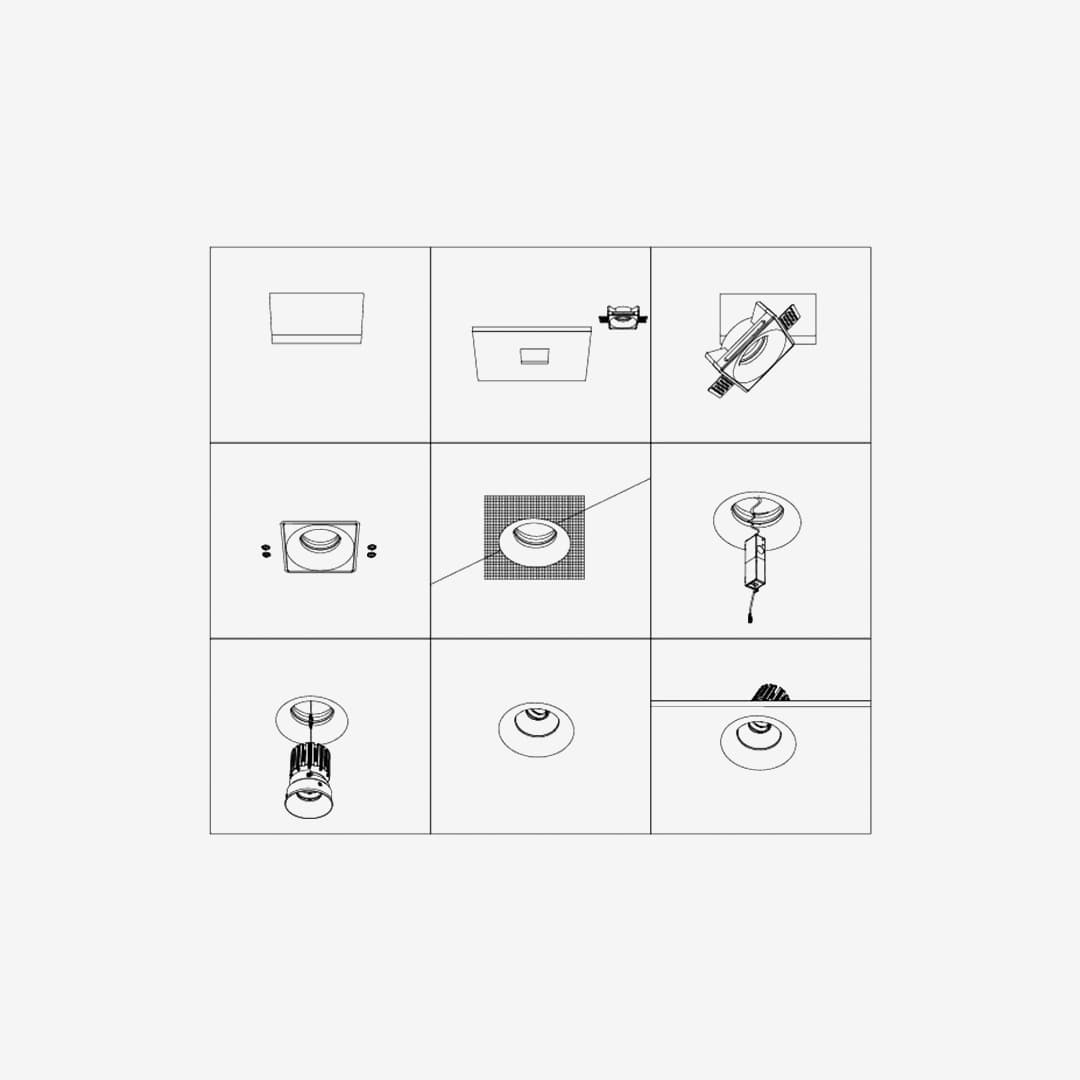

  • Installation guidePDF
  • Revit and CAD blocksOn request

Anything marked on request we will send the same day. Ask at info@nuordic.com.
