Downlights

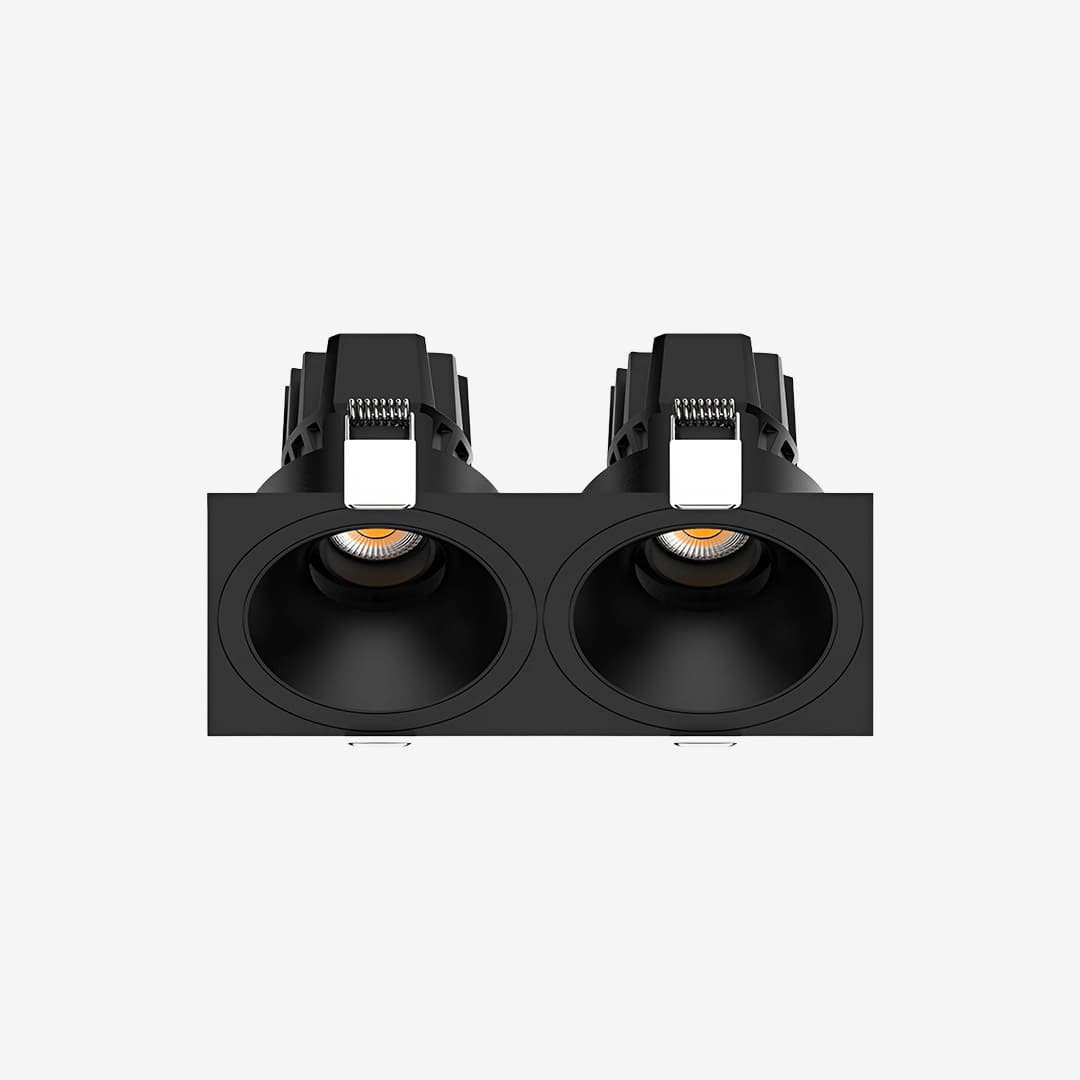

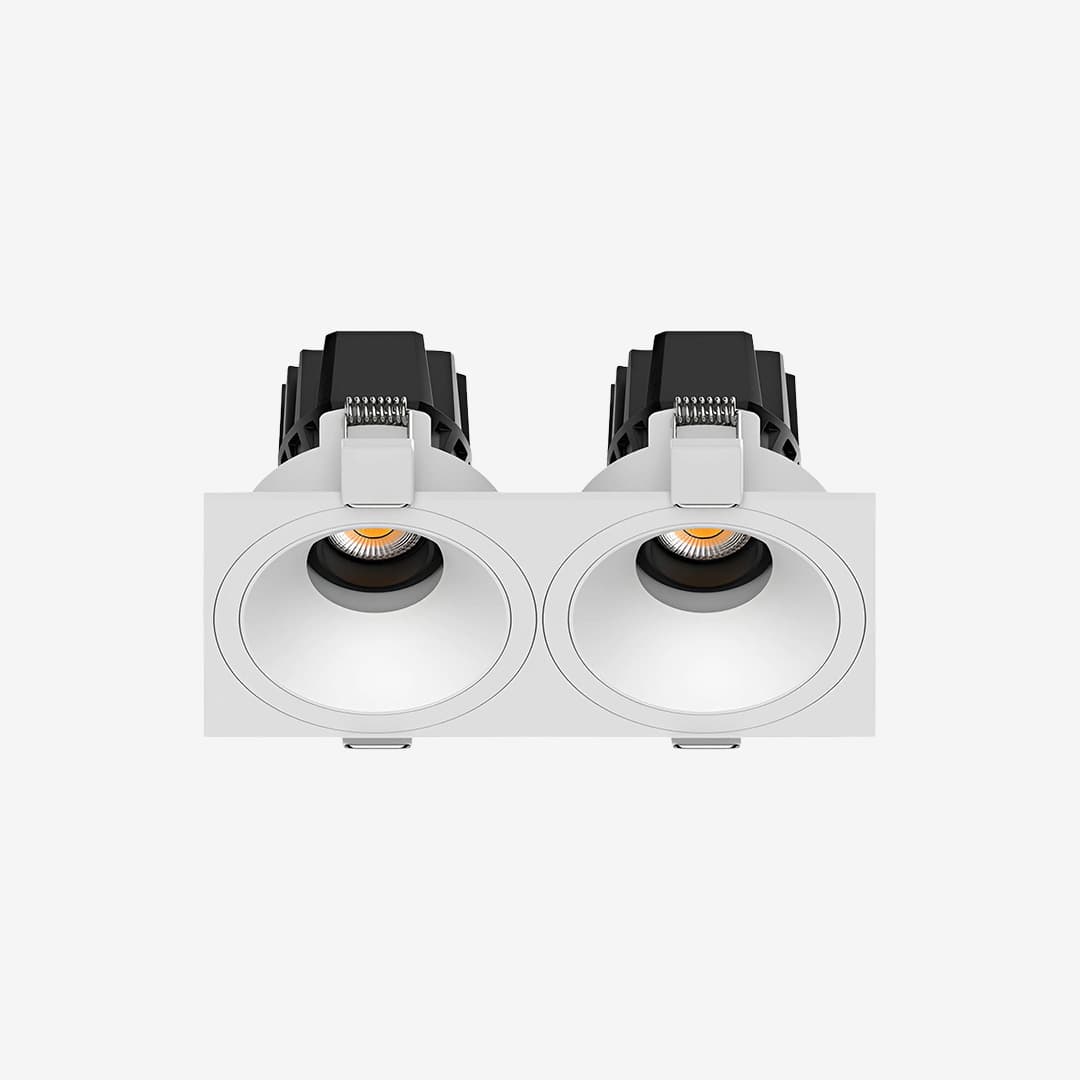

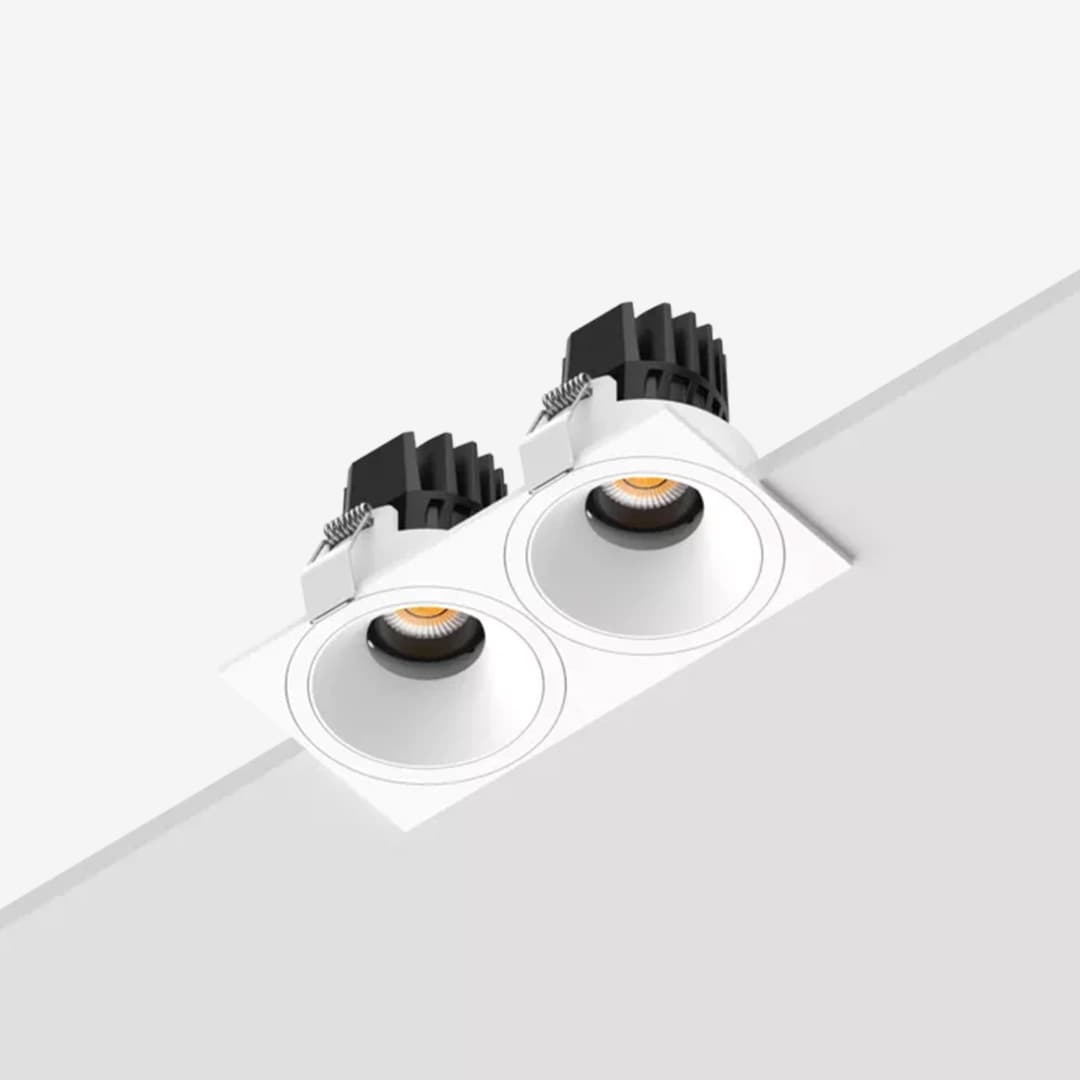

3 Inch Recessed Round Adjustable Double Downlights
Model N75-R01Q2 · 3 trims

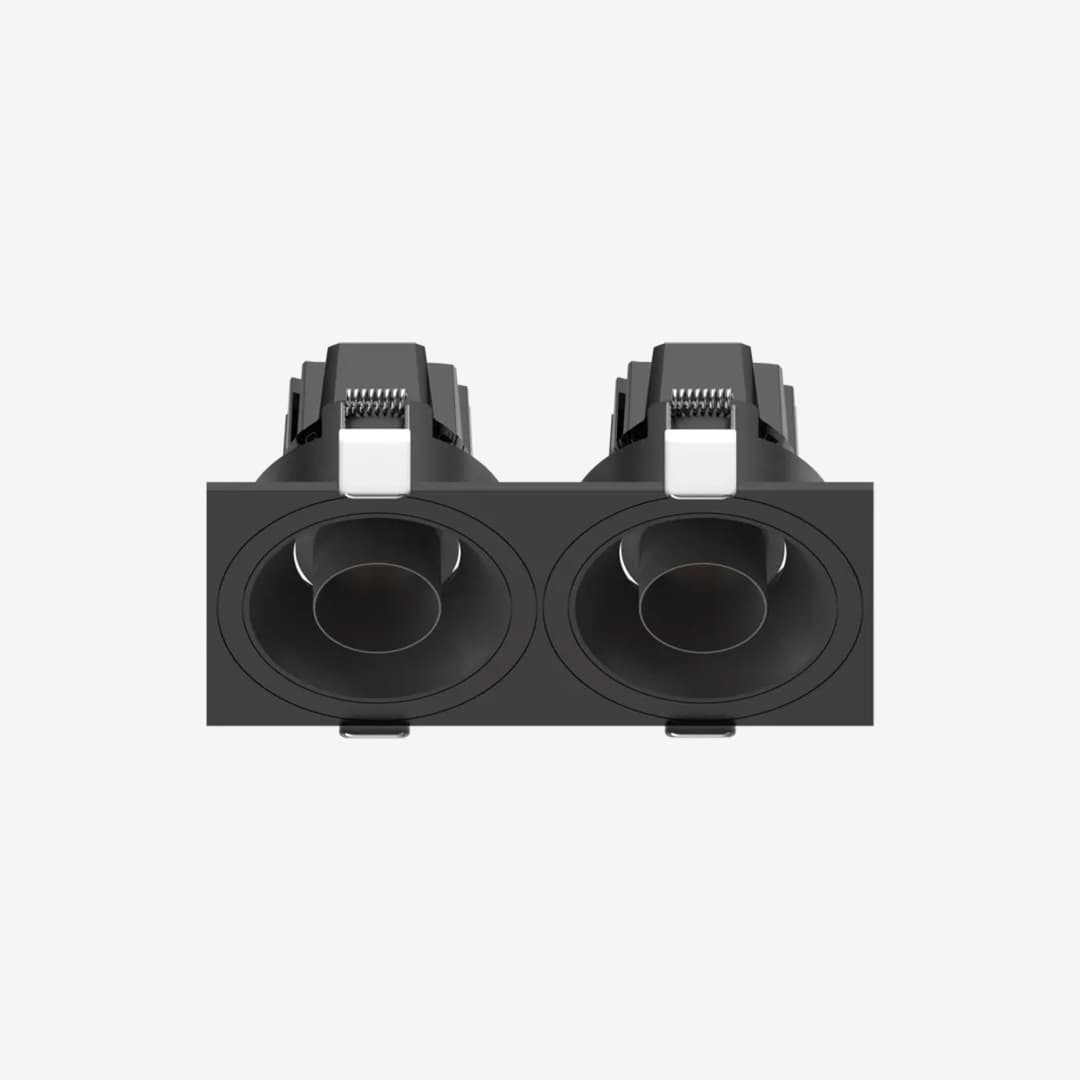

The 3 Inch Recessed Round Adjustable Double Downlight is designed for interiors where lighting needs to be both functional and refined. With two integrated LED COB light engines, the fixture offers greater coverage and control compared to single-source downlights, making it ideal for layered and accent lighting applications. The high CRI rating of 97 ensures accurate color reproduction, allowing materials, finishes, and products to appear natural and vibrant under the light.

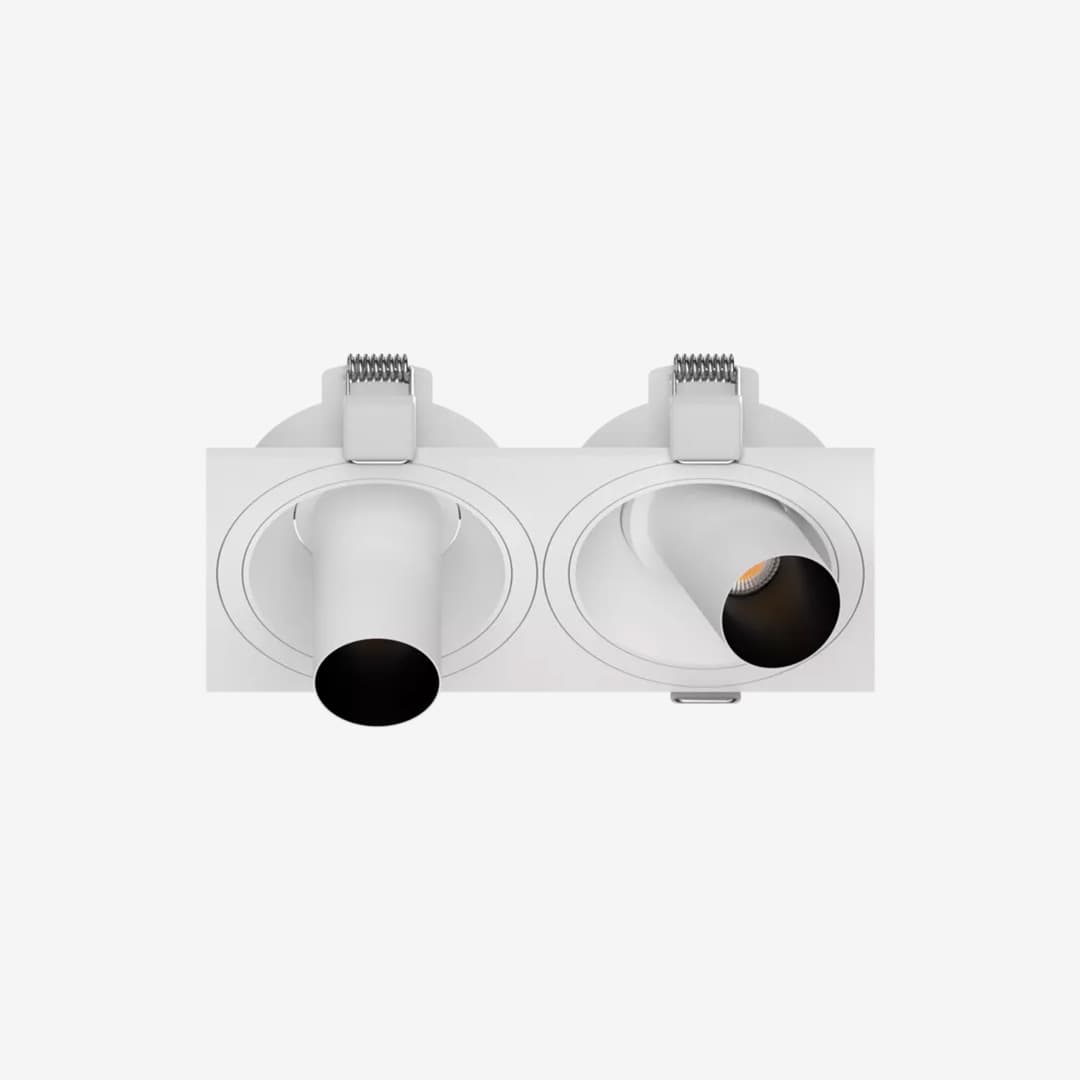

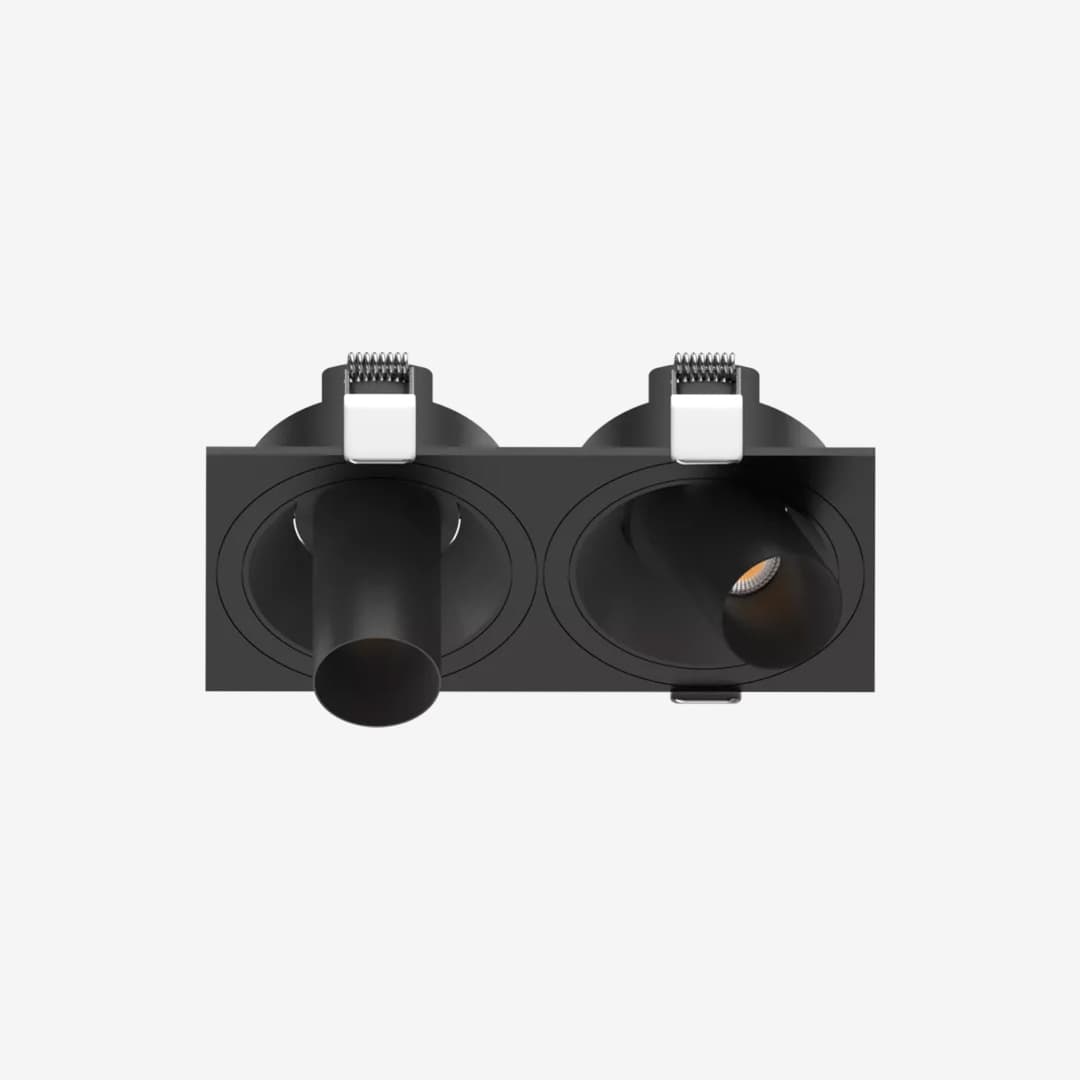

Each light engine is independently adjustable, offering a 25° tilt and full 360° rotation. This flexibility allows designers and installers to direct light exactly where it is needed, whether highlighting architectural details, artwork, or specific zones within a space. The optical lens system incorporates multiple anti-glare layers, producing soft, uniform illumination with reduced glare and minimal visual fatigue.
Constructed from high-quality aluminum, the fixture is built for long-term durability and efficient heat dissipation. With a total power consumption of 2 × 12W, it delivers strong illumination while remaining energy efficient. The no-plaster installation design simplifies fitting, making it suitable for both new builds and renovation projects.

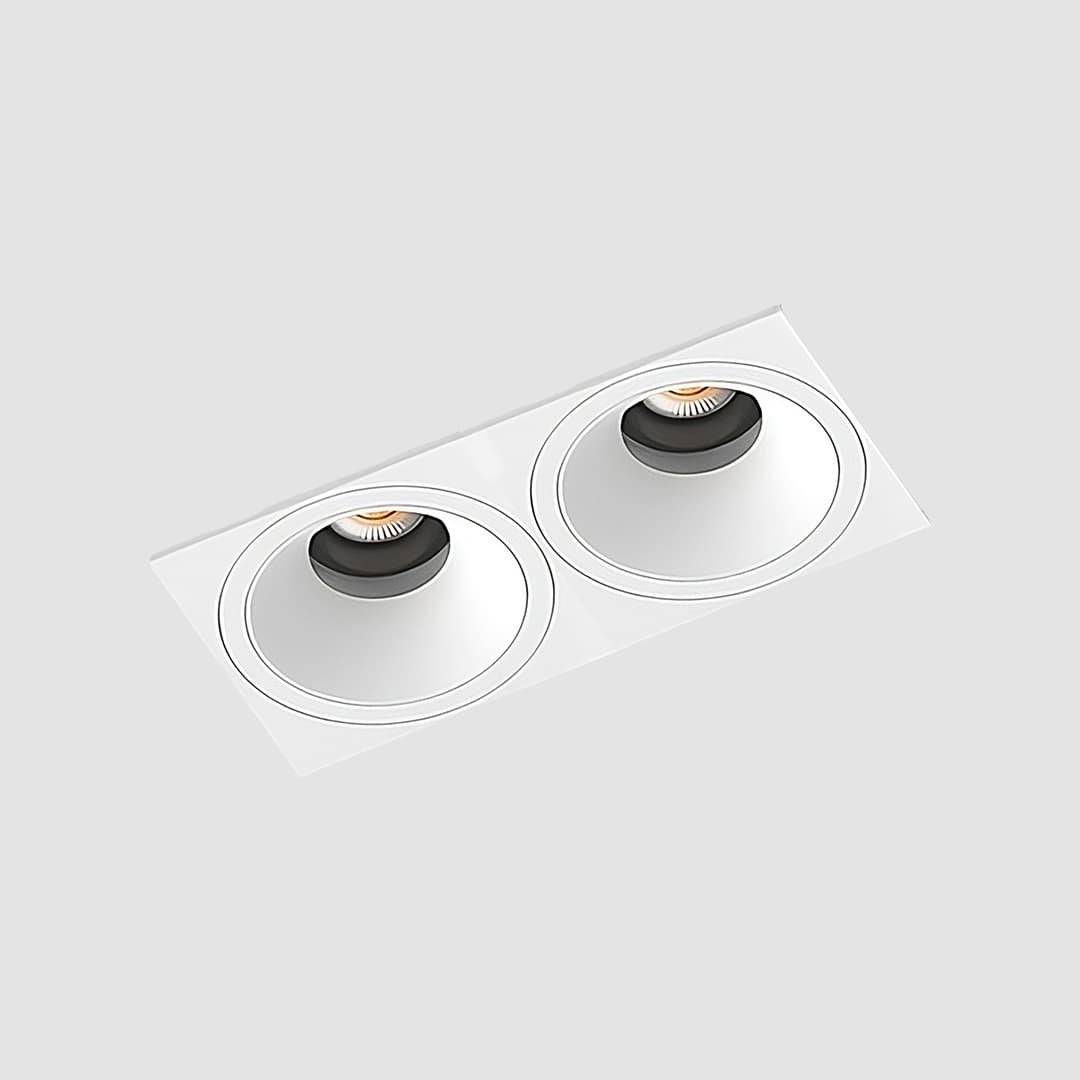

Available in black or white finishes, this double downlight integrates seamlessly into a wide range of interior styles. It is well suited for modern residences, retail environments, showrooms, offices, and other commercial spaces where precise, adjustable lighting is essential.
Key points
• Dual LED COB light engines with 97 CRI for accurate color rendering

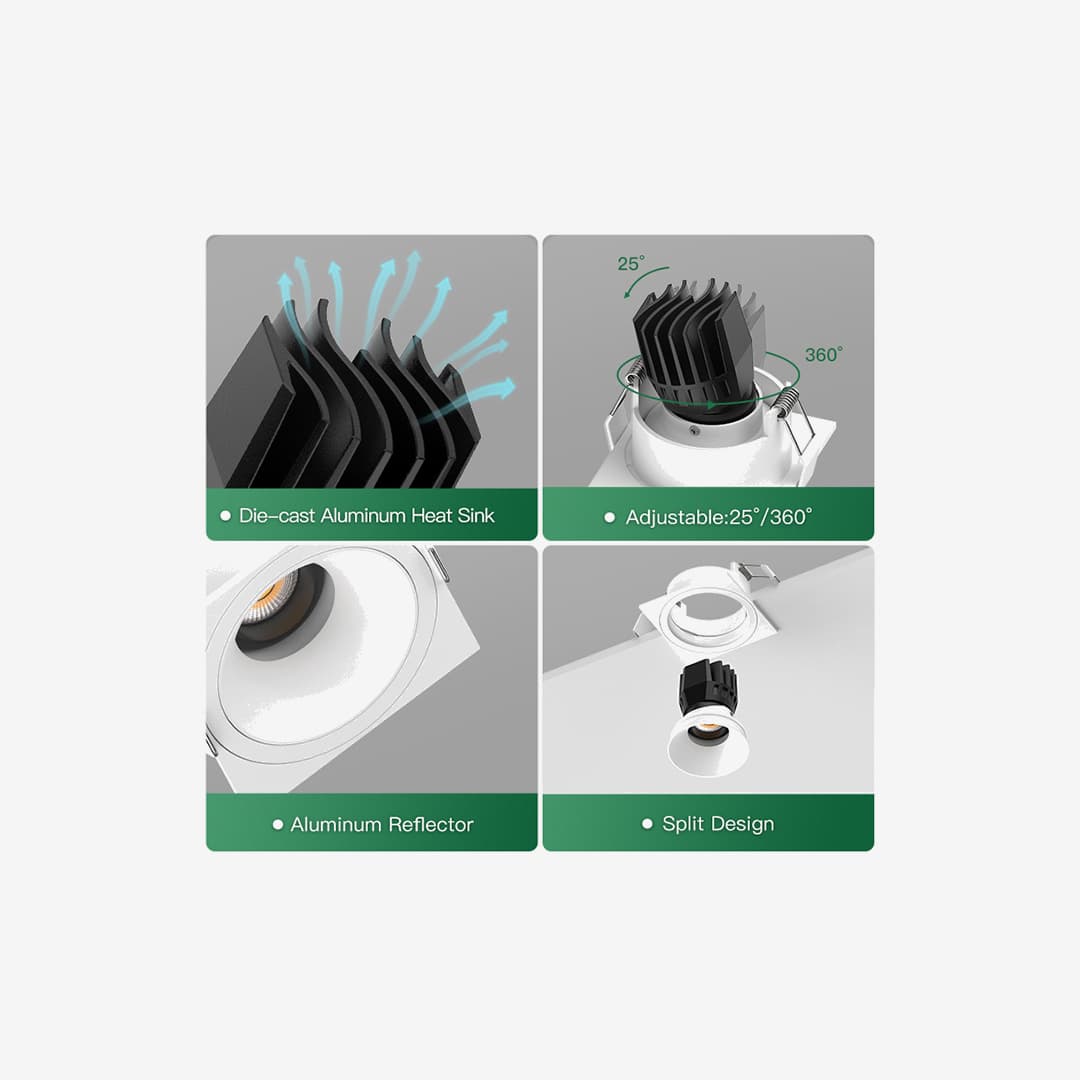

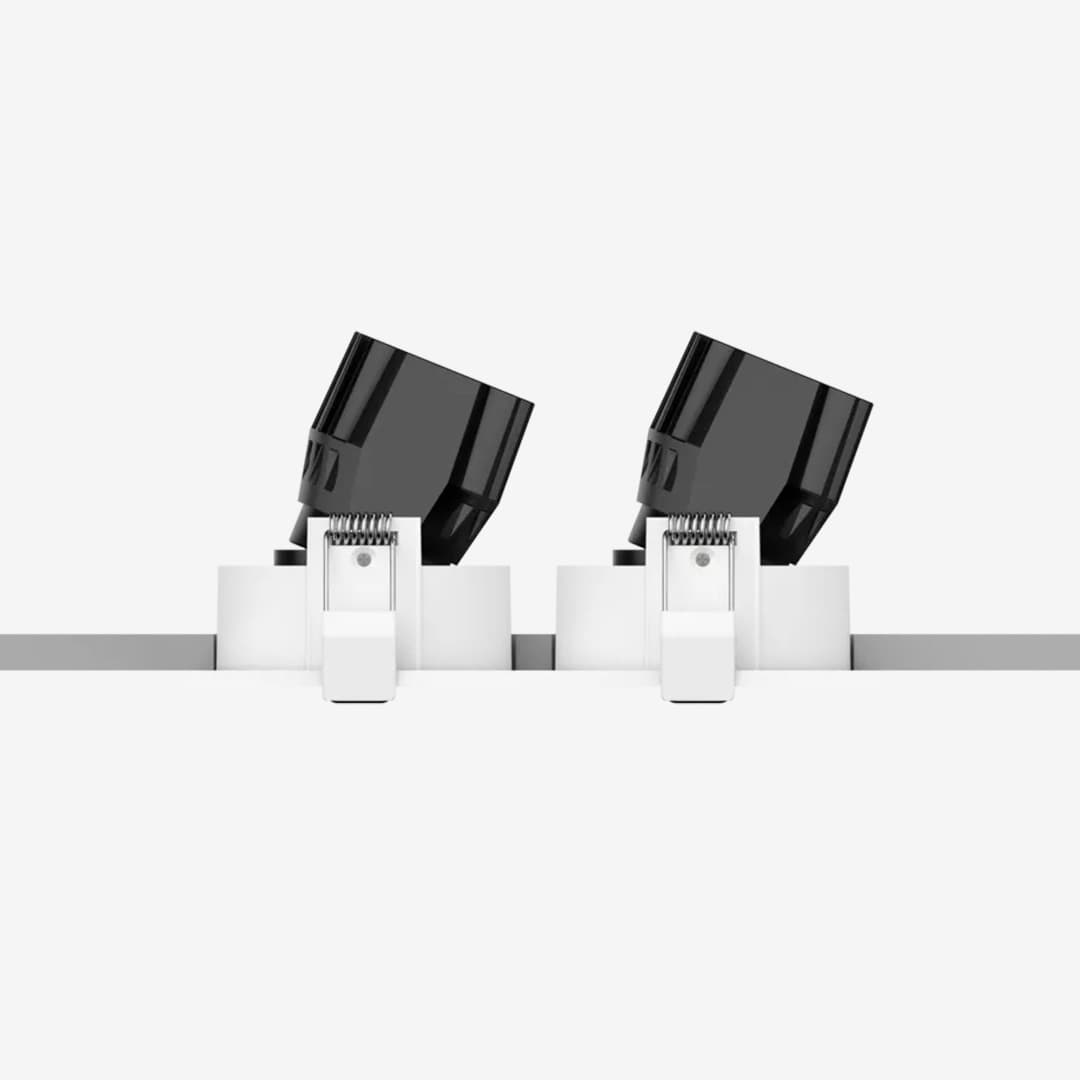

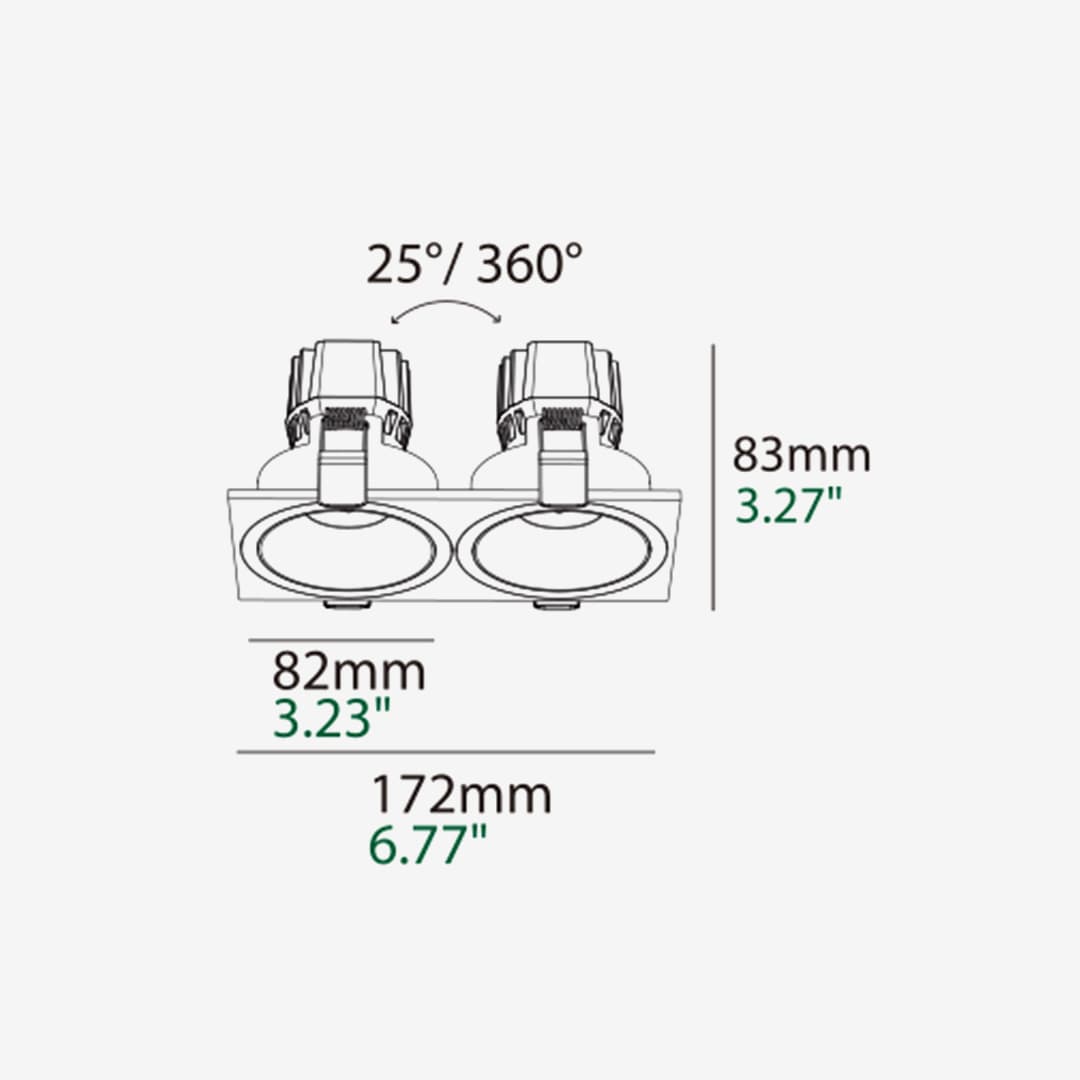

• 25° adjustable tilt and 360° rotation for precise light control
• Advanced optical lens with multiple anti-glare layers
• Durable aluminum construction with efficient heat management
• Energy-efficient performance with 2 × 12W power consumption

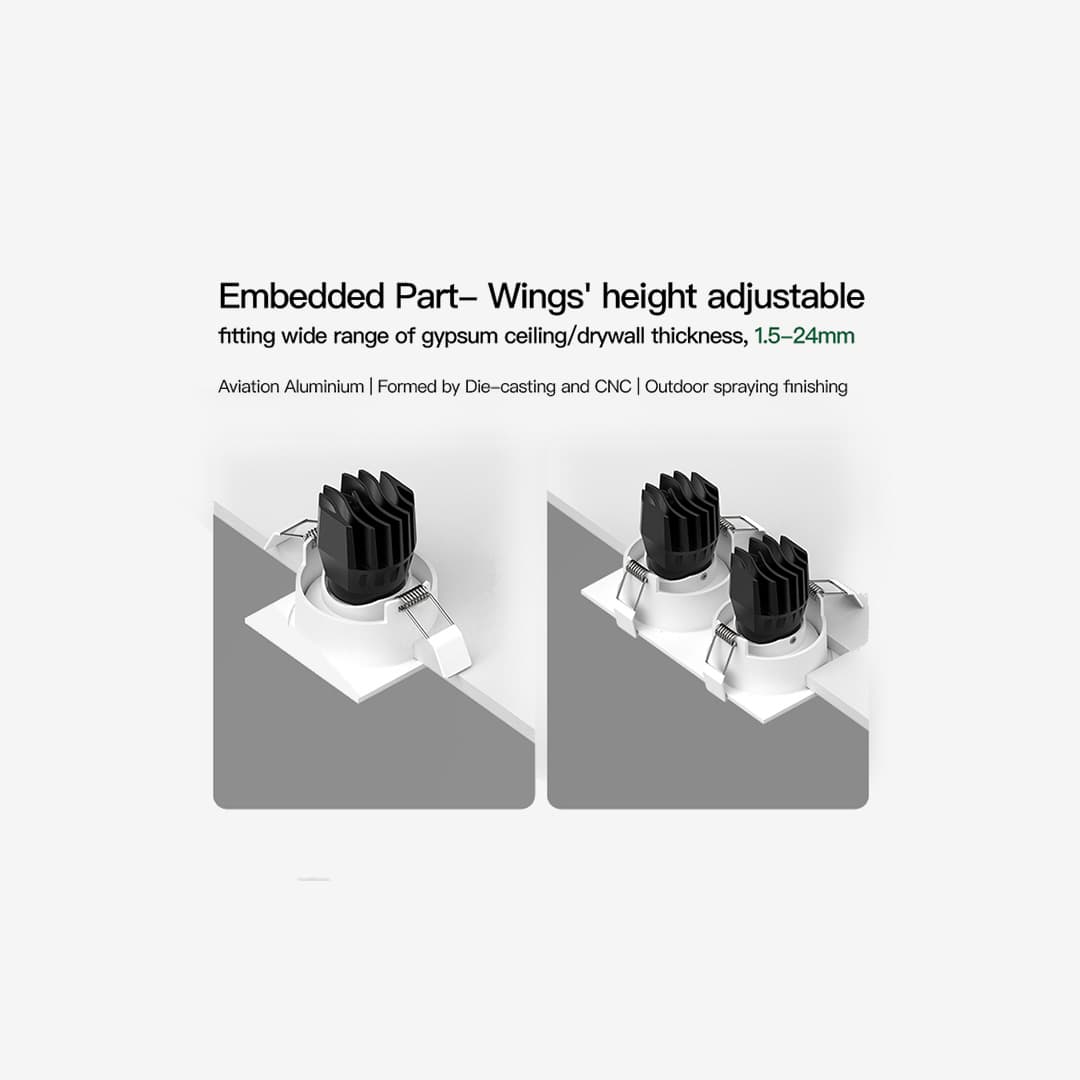

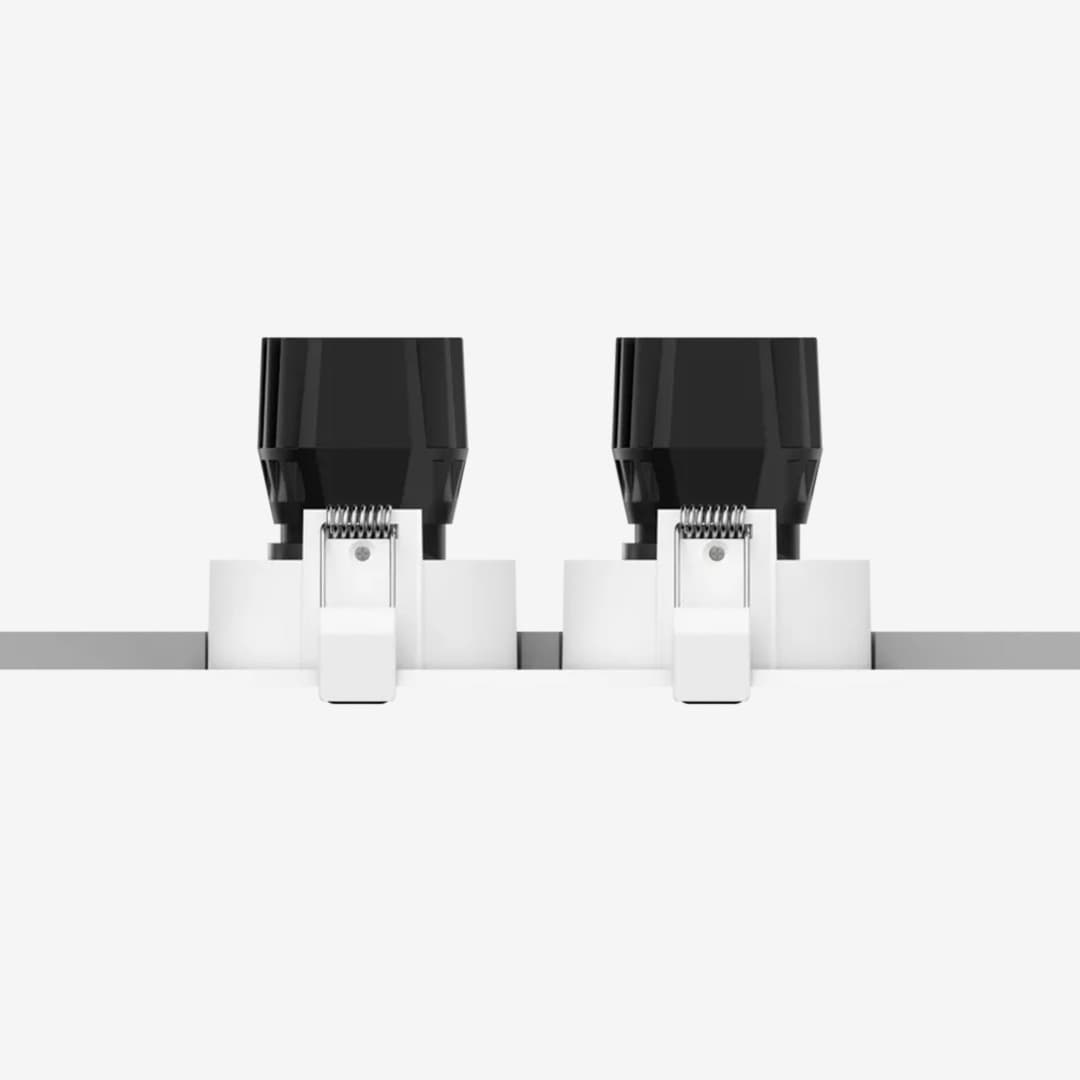

• Easy, no-plaster installation for new and retrofit projects

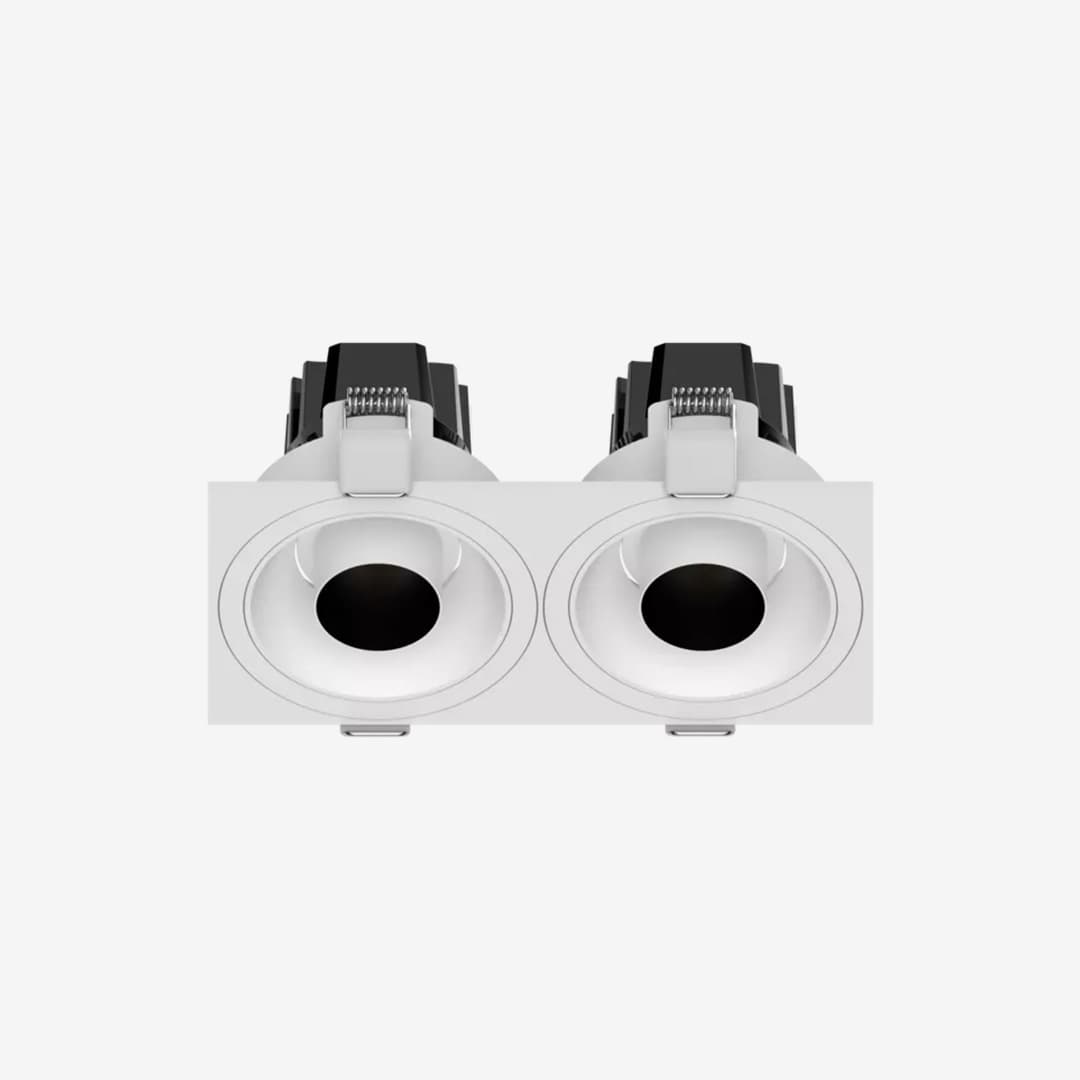

• Available in black and white finishes
• Ideal for residential, commercial, and retail lighting applications
- Beam
- 15-80°
- Color
- 97 CRI
- Ingress
- IP20-65
- Trims
- 3
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- ETLIntertek listed
- CEEU conformity
- FCC
- IP65Wet location
Ratings apply per build. The IP65 rating belongs to the builds that carry it, not to every option on this page.
Configurator
Build the fixture, get the order code.
Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.
1 of 12 required
Shape (required)
RequiredCOB Chip (required)
RequiredCCT (required)
RequiredColour Temperature
n/aBeam Angle (required)
RequiredIP Rating (required)
RequiredTrim (required)
RequiredReflector Colour (required)
RequiredTrim Colour (required)
RequiredDriver (required)
RequiredHousing (required)
RequiredTethered Controller (required)
RequiredOrder code
N75-····-··-XK-··-··-····-··-··-··-··
11 required axes remaining
Configured price
$189.00
Photometrics
See what the beam does before you cut the hole.
Pick an optic, a mounting height and a color temperature. One set of inputs drives all four views: the beam in section, the polar distribution, the spacing a run sets out at, and color rendition. Tested IES files for every build are in the downloads below.
Beam angle
Ceiling height
Colour temperature
DistanceFocus Ø
1.0 m0.44 m
2.0 m0.89 m
Floor · 2.74 m1.22 m
The diameter is geometry from the rated beam angle and holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.
N75 · Beam section25° · 3000K · 9 ft ceilingScale varies

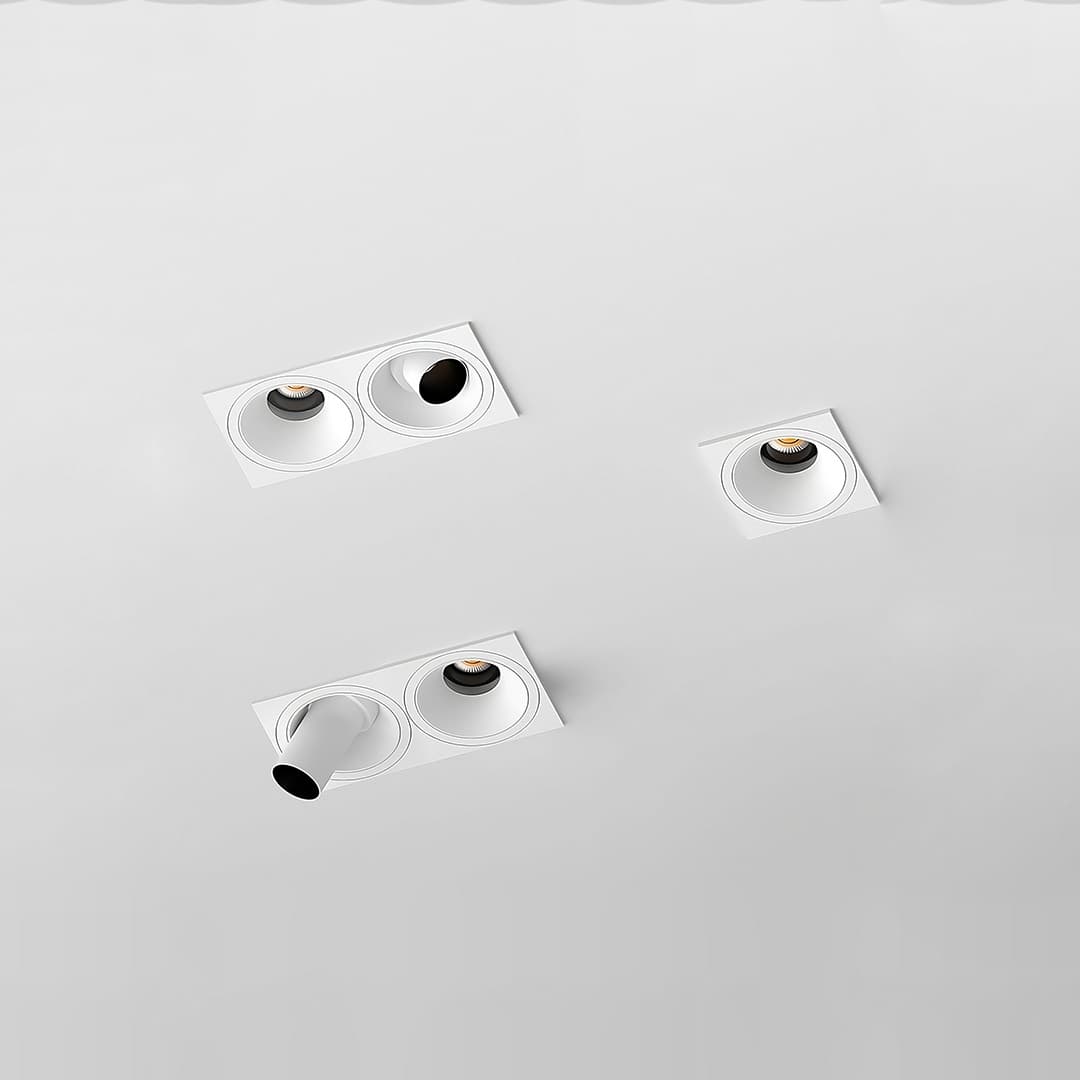

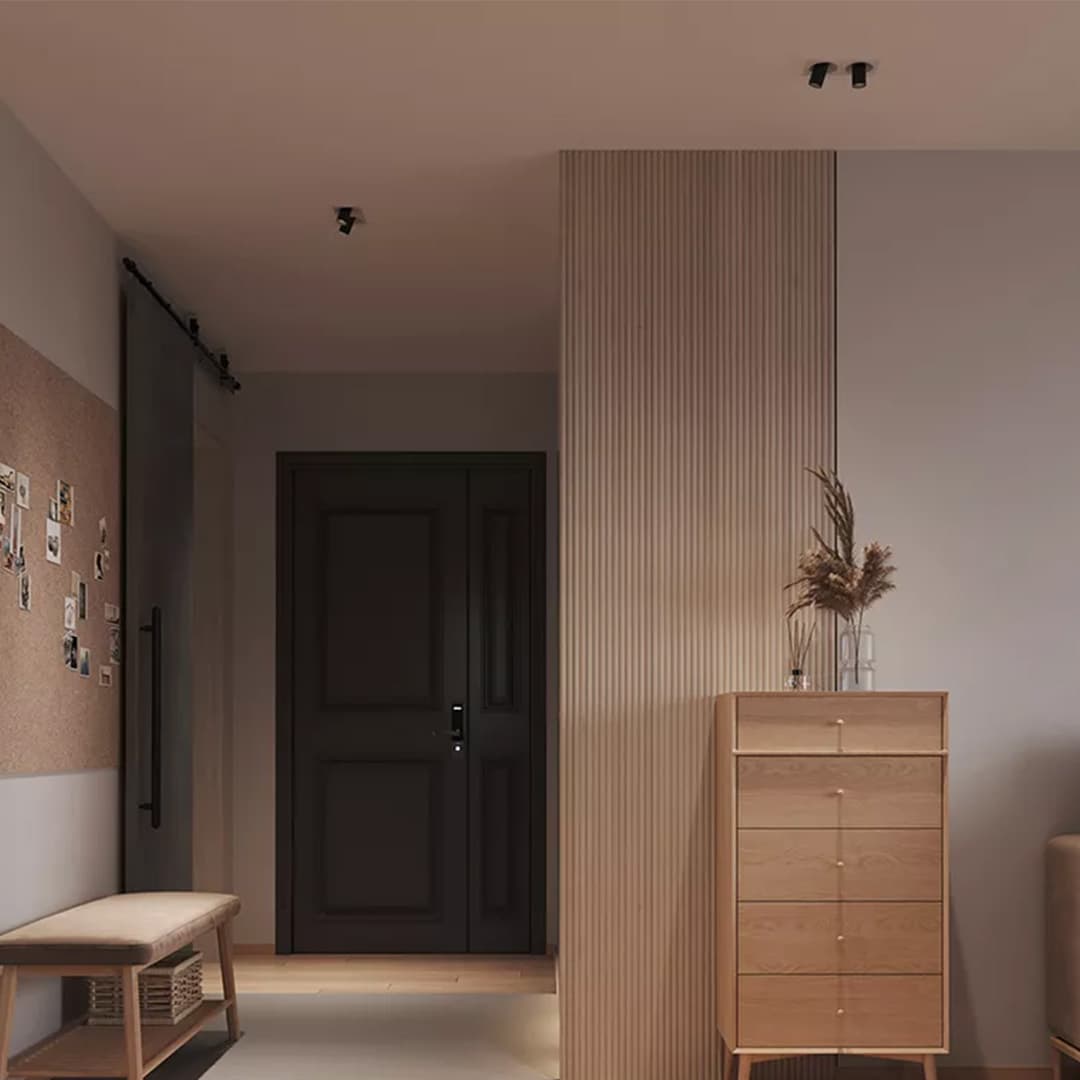

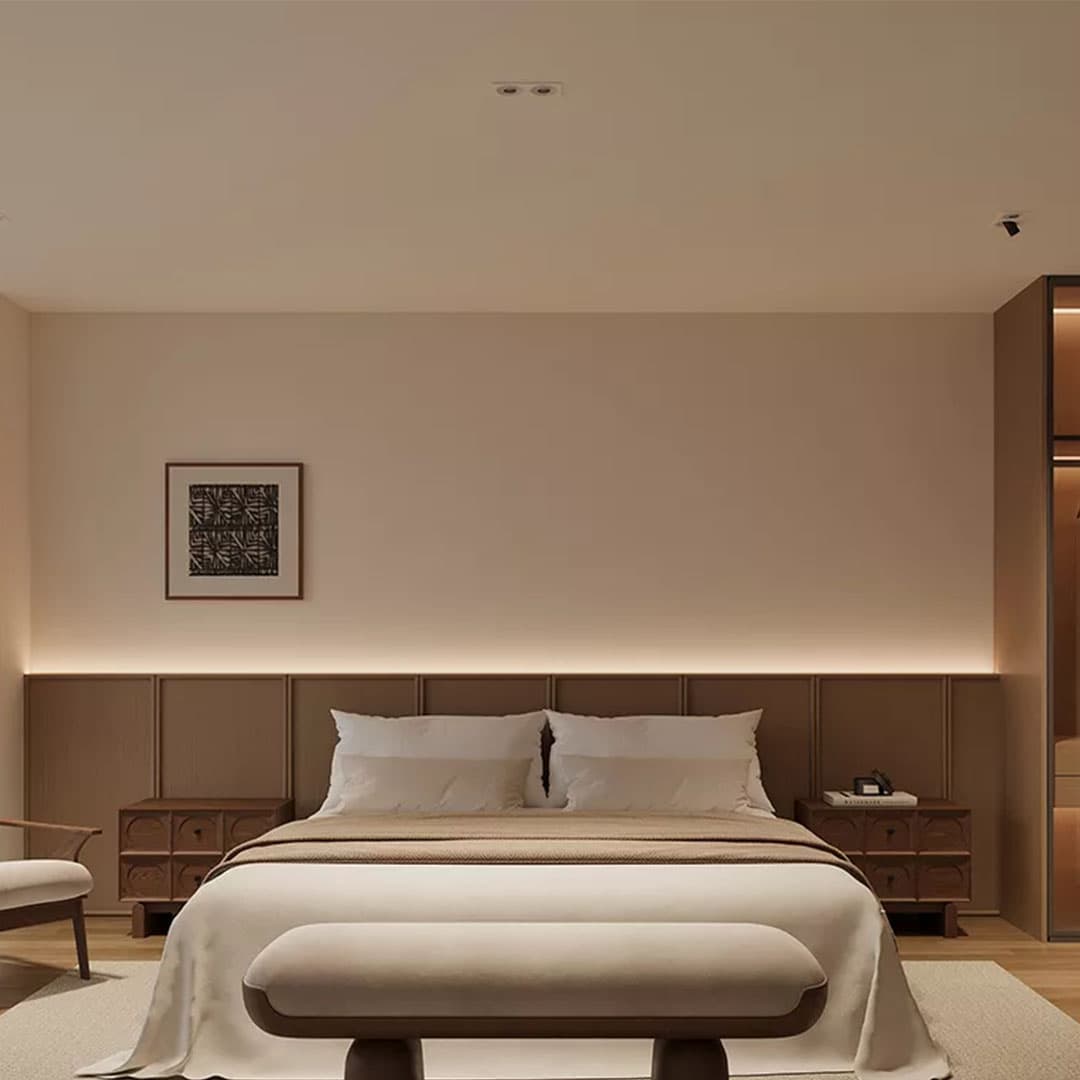

Installed
At work in projects we lit.
Technical specification
- Material
- Cold forged aluminum
- Shape
- Round · Square
- COB chip
- 24V CV · 36V CC
- Colour
- Static CCT · 5CCT Switch · 2700K to 6000K · 1800K to 5500K · 3000K to 1800K · RGBW
- Beam angles
- 15° · 25° · 35° · 50° · 80°
- Ingress and aiming
- IP20 · IP44 · IP65
- Trim
- Trimless · Micro-flange · Millwork
- Reflector colour
- Black · White
- Driver
- Remote driver · 0-10V · Triac · Dali2
- Housing
- None · Flat Bracket · Non-IC Housing · IC-Housing
- Tethered control
- Casambi · Tuya
- Certification
- Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
- Warranty
- 5 years
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guidePDF
- Revit and CAD blocksOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
