Collections/Downlights/3" Round High Output Downlight

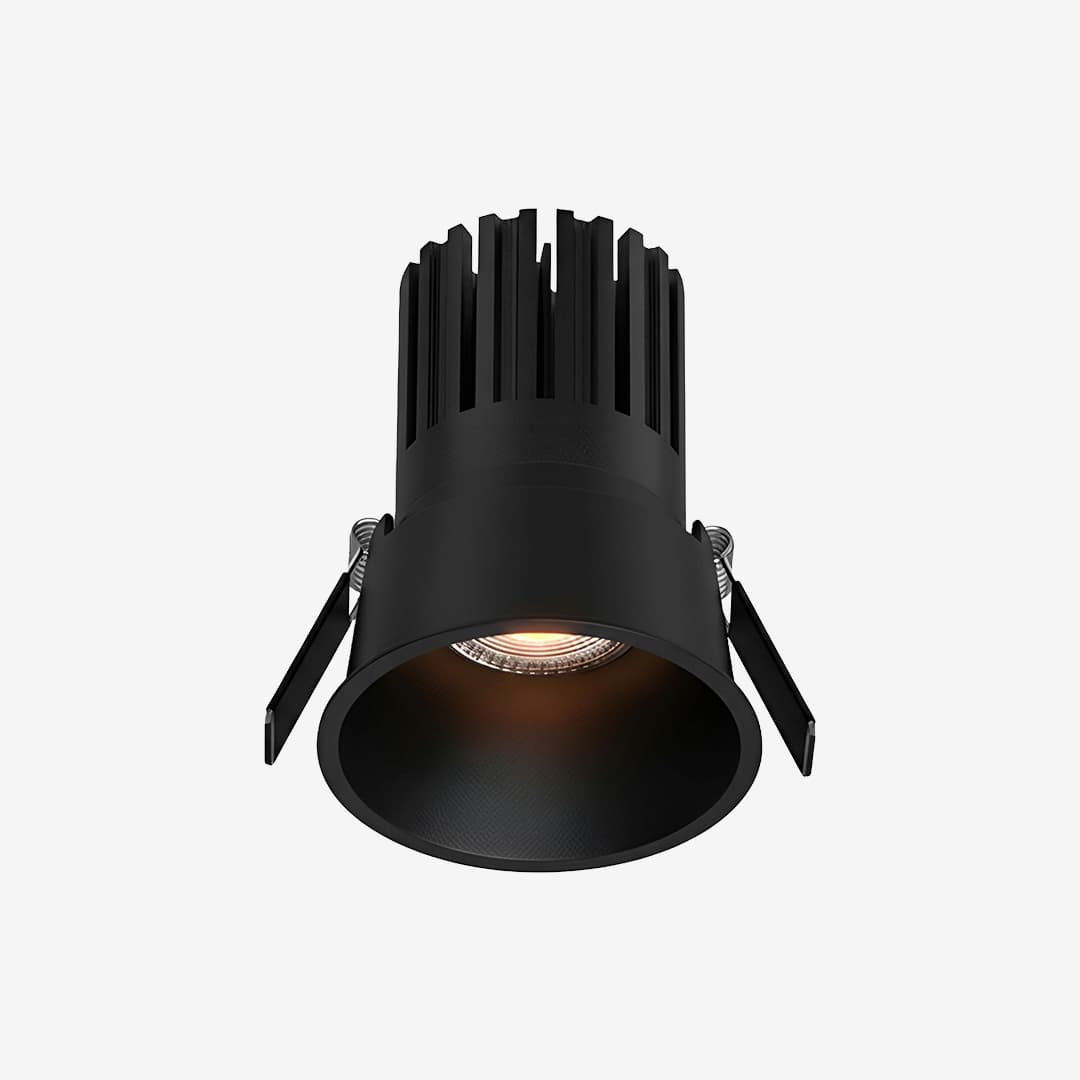

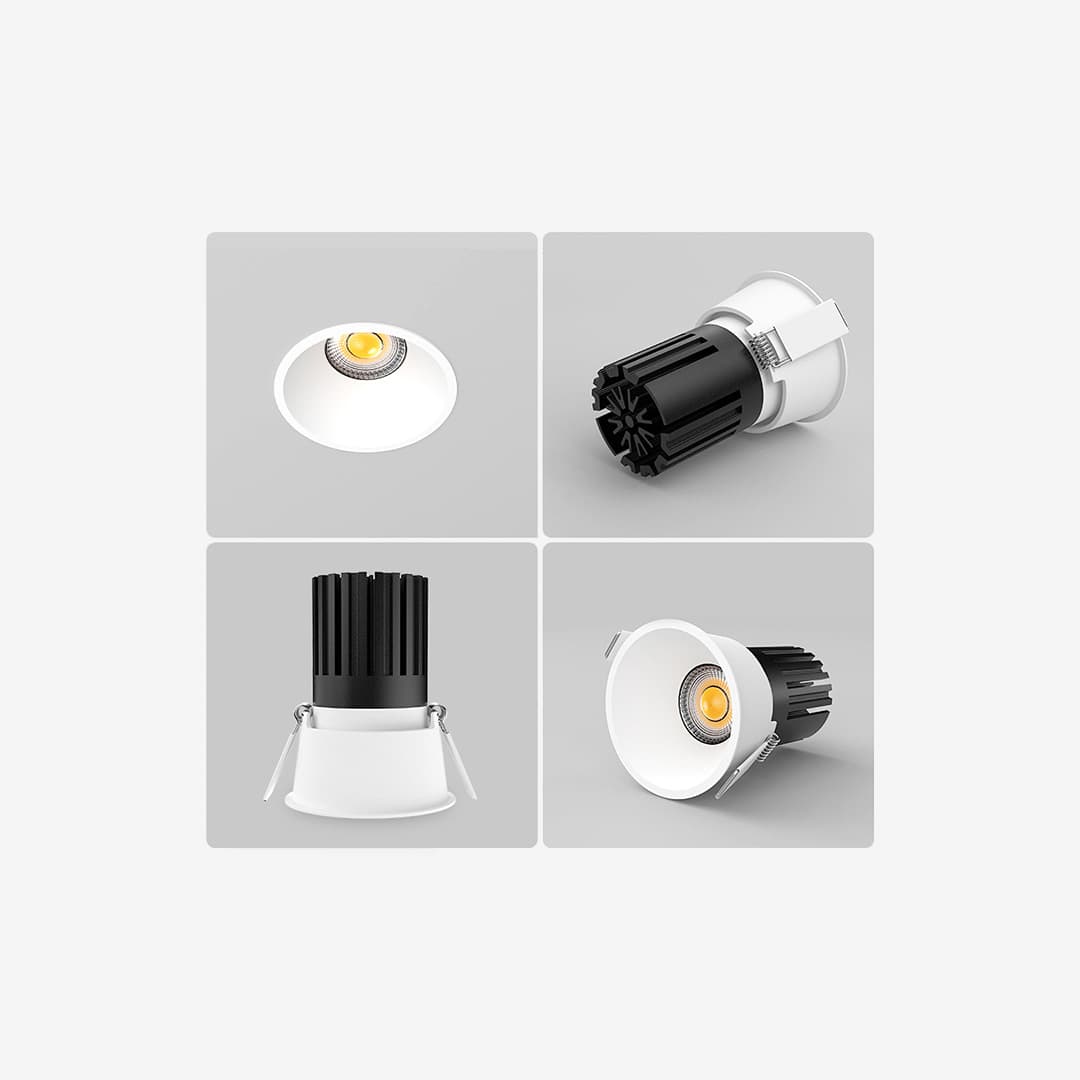

3" Round High Output Downlight
Downlights · None

3" Round High Output Downlight

Model N75-R40 · 3 trims

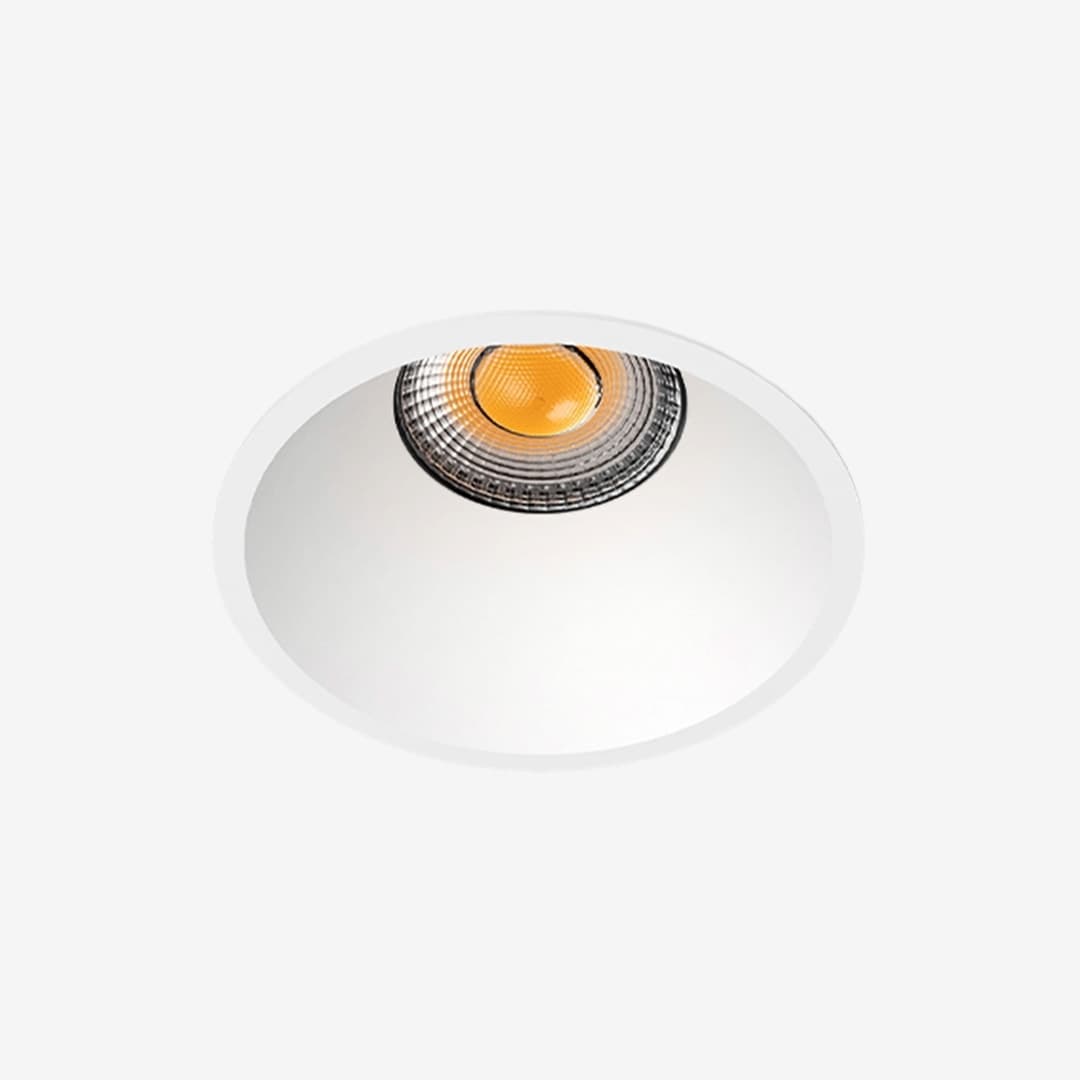

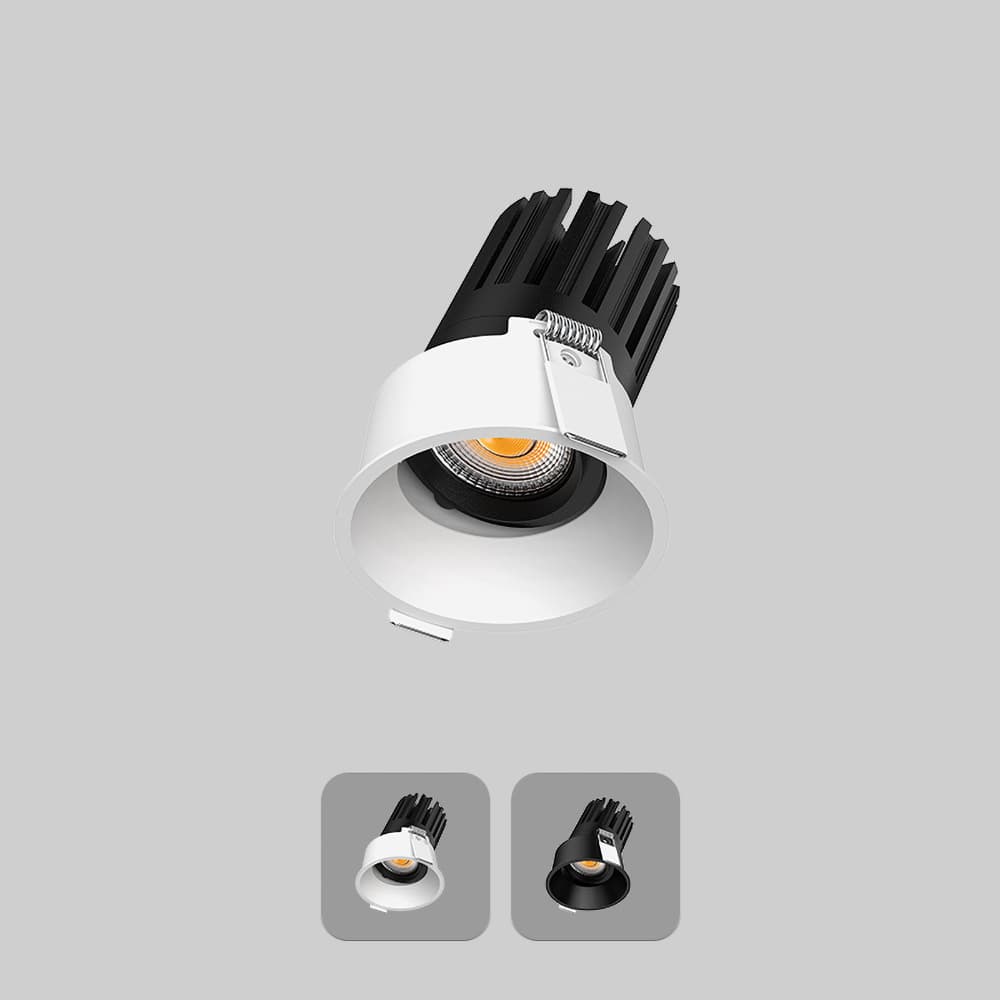

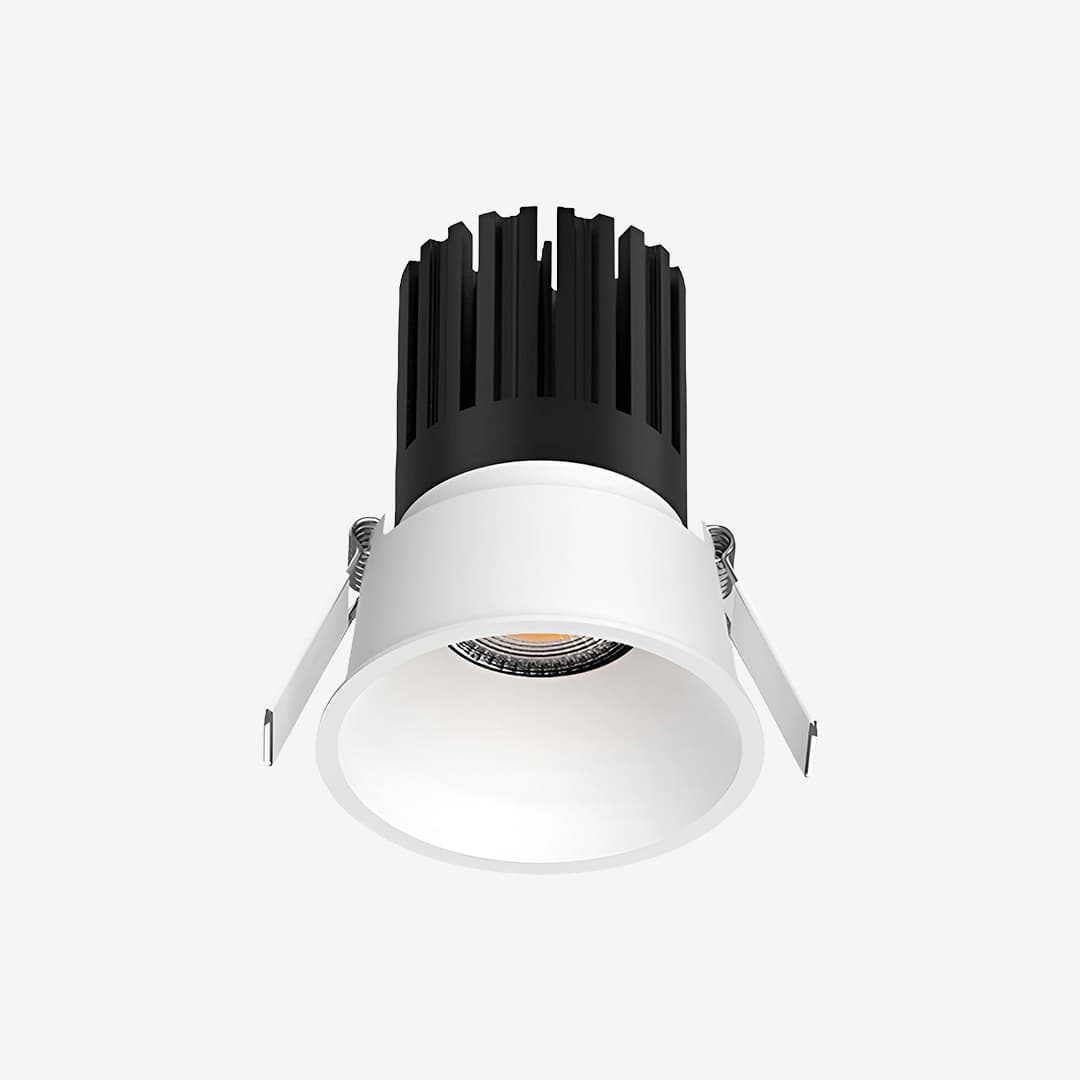

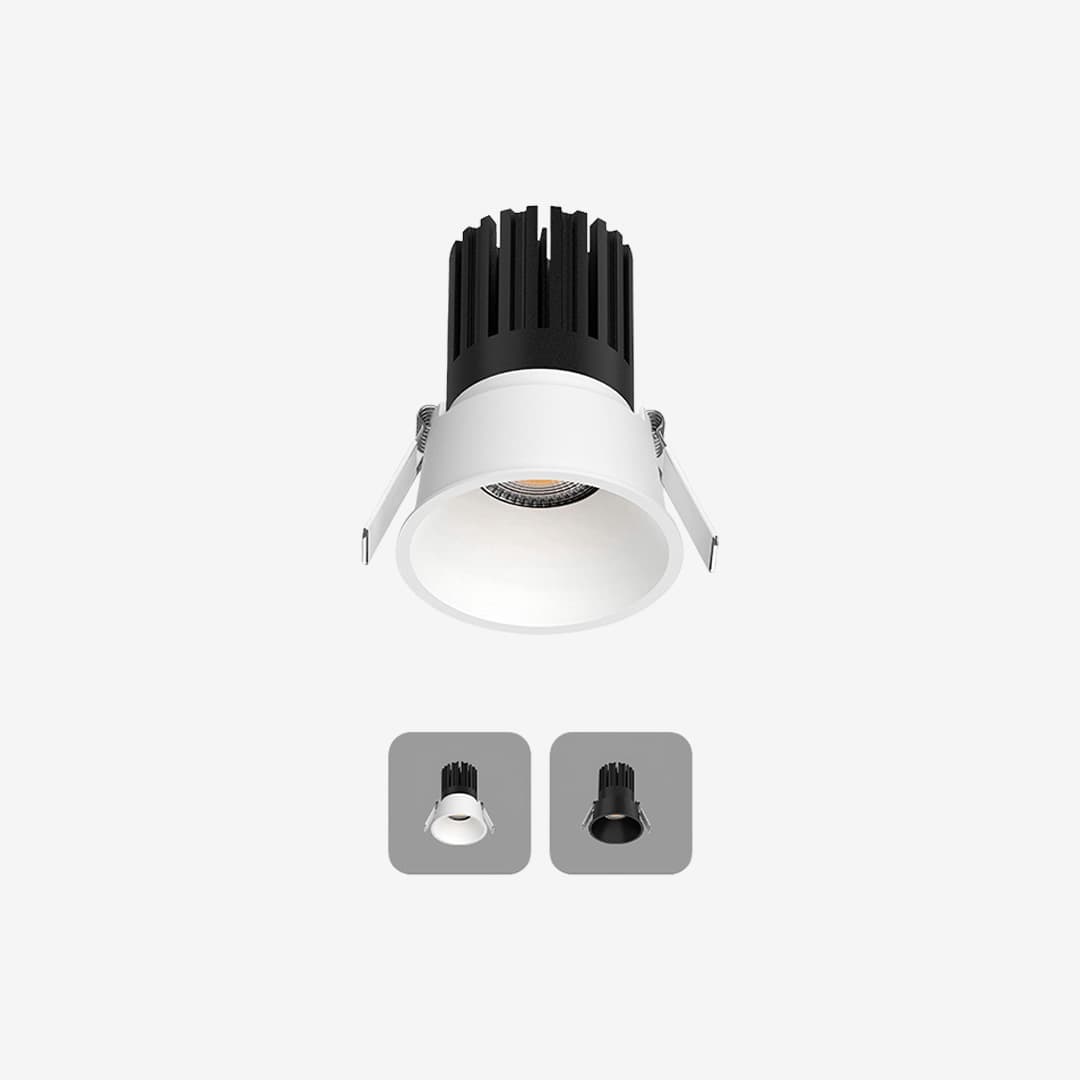

The 3" High Output Round Downlight is an architectural-grade lighting fixture designed for clean ceiling lines and dependable, high-quality illumination. Built with a high-efficiency LED engine and precision optics, it delivers uniform light output with controlled glare, making it suitable for both ambient and task lighting applications.

With a fixed light direction and multiple beam angle options, this downlight adapts easily to different layouts and ceiling heights. High CRI performance ensures accurate color rendering, making it ideal for residential, hospitality, retail, and commercial environments where visual comfort and material clarity are important.

Engineered to support micro flange installations, the fixture integrates seamlessly into drywall ceilings for a minimal, refined appearance. The aluminum housing provides excellent thermal management for long-term performance, while compatibility with common dimming systems allows smooth light control across a wide range of applications.

Key features
• 3 inch recessed round fixed downlight
• Fixed beam with multiple beam angle options
• High CRI for accurate and natural color rendering

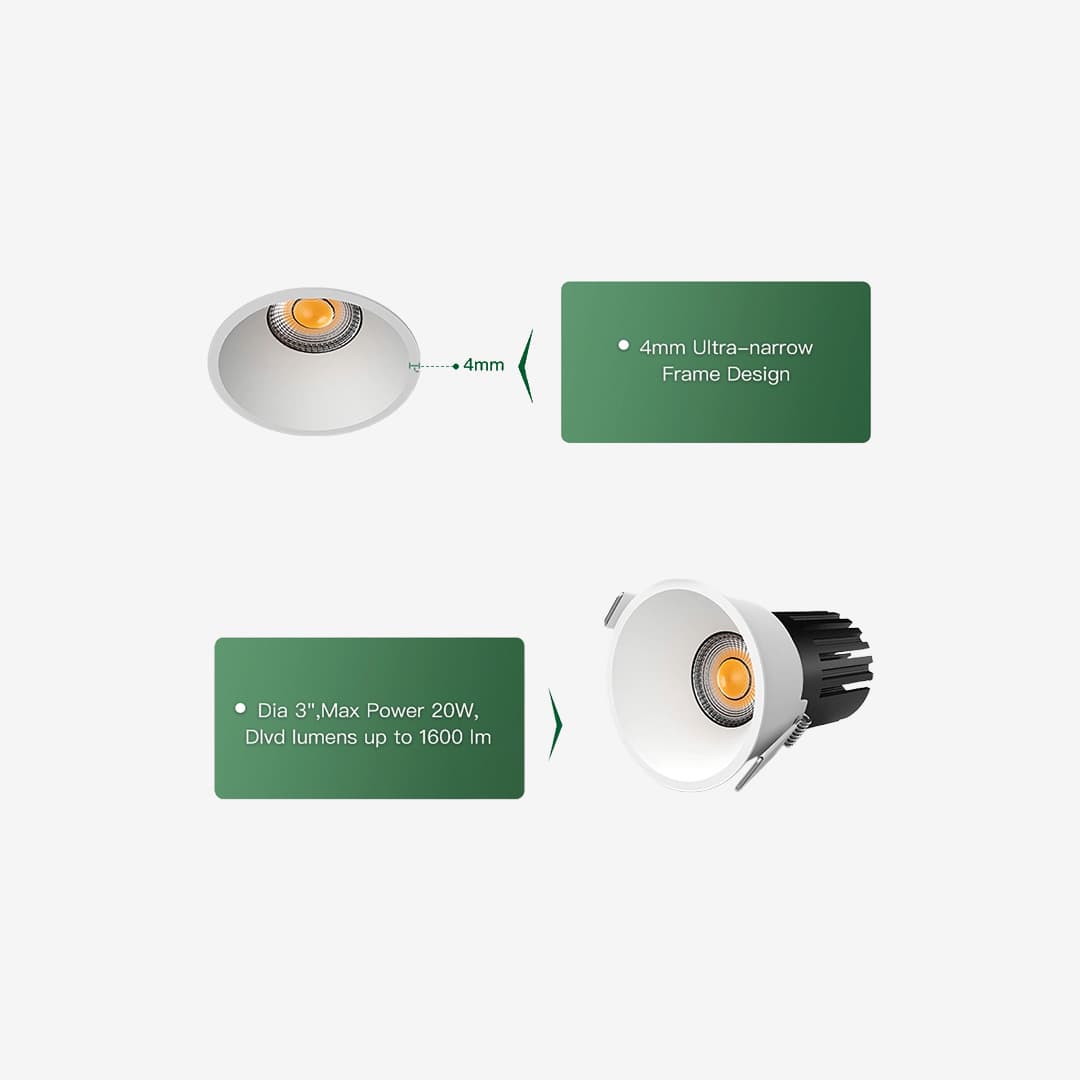

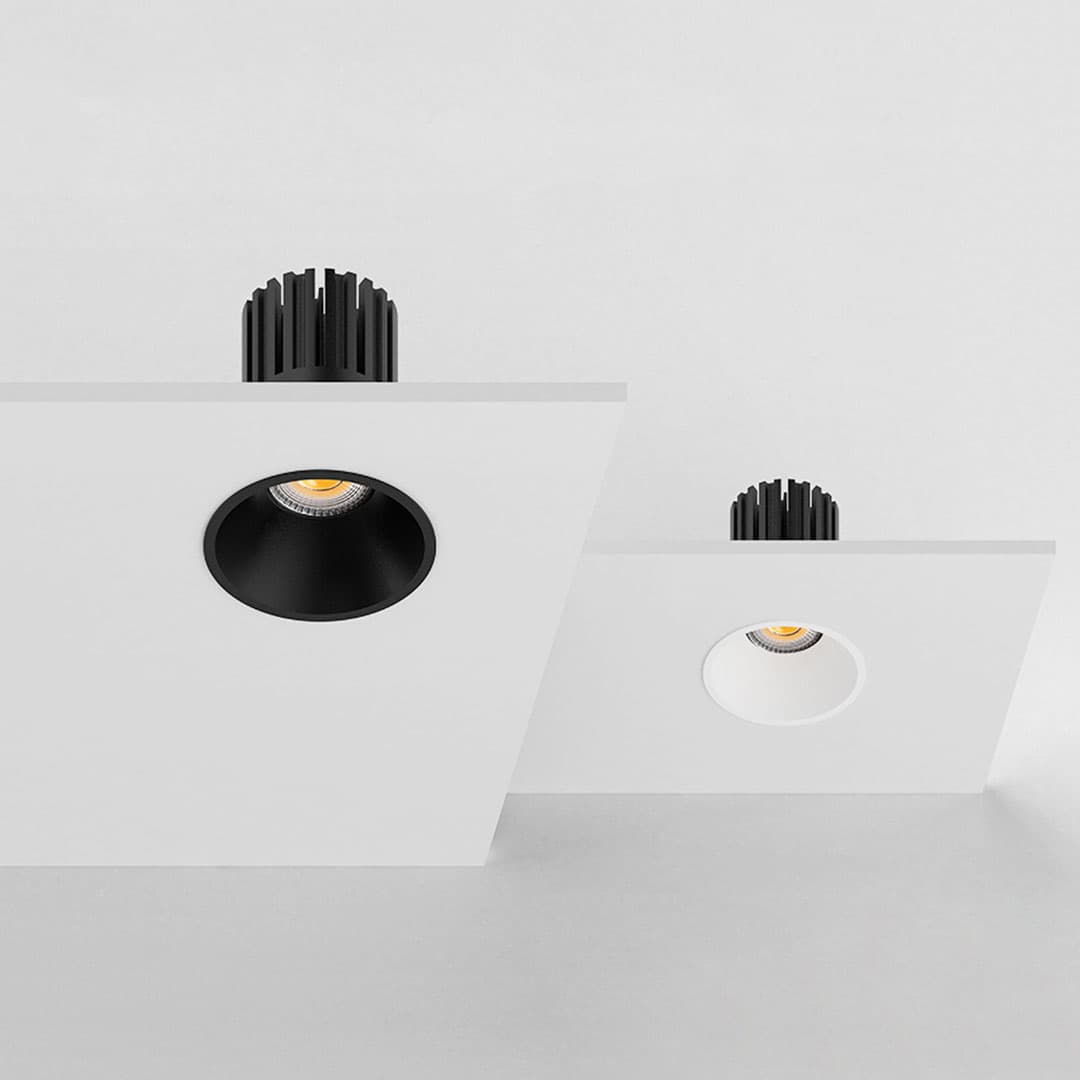

• Compatible with both micro flange and trimless installations

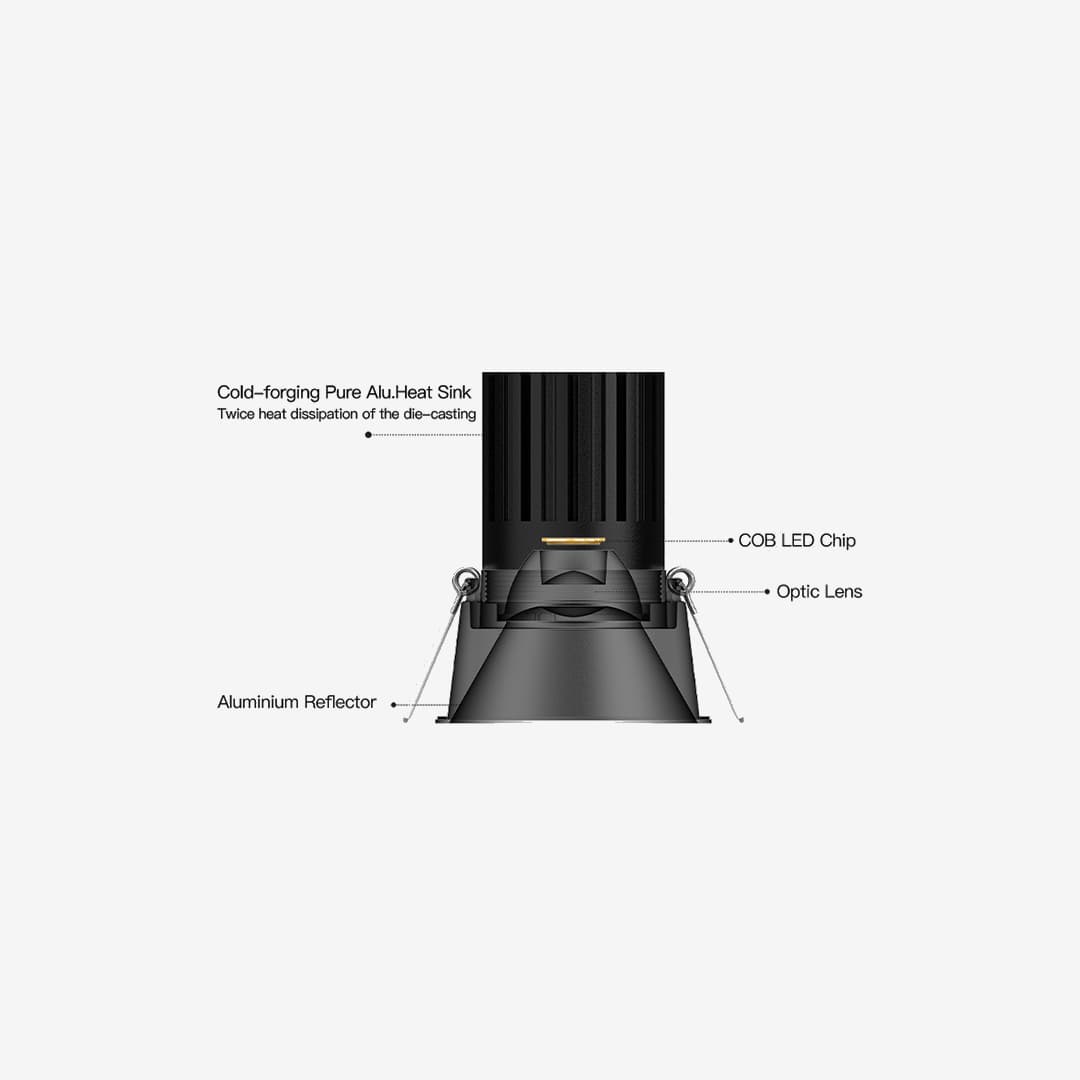

• Precision optical system for glare control

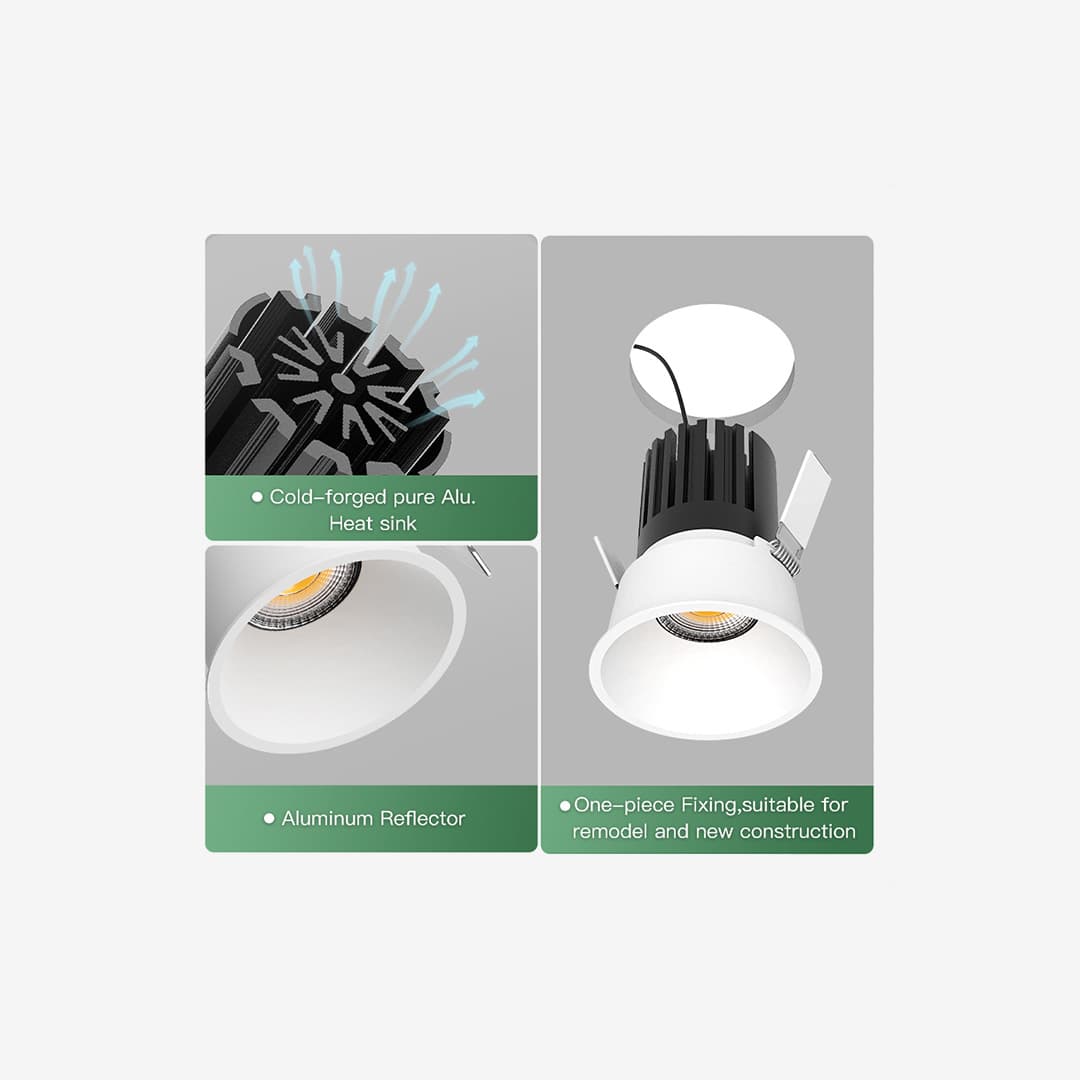

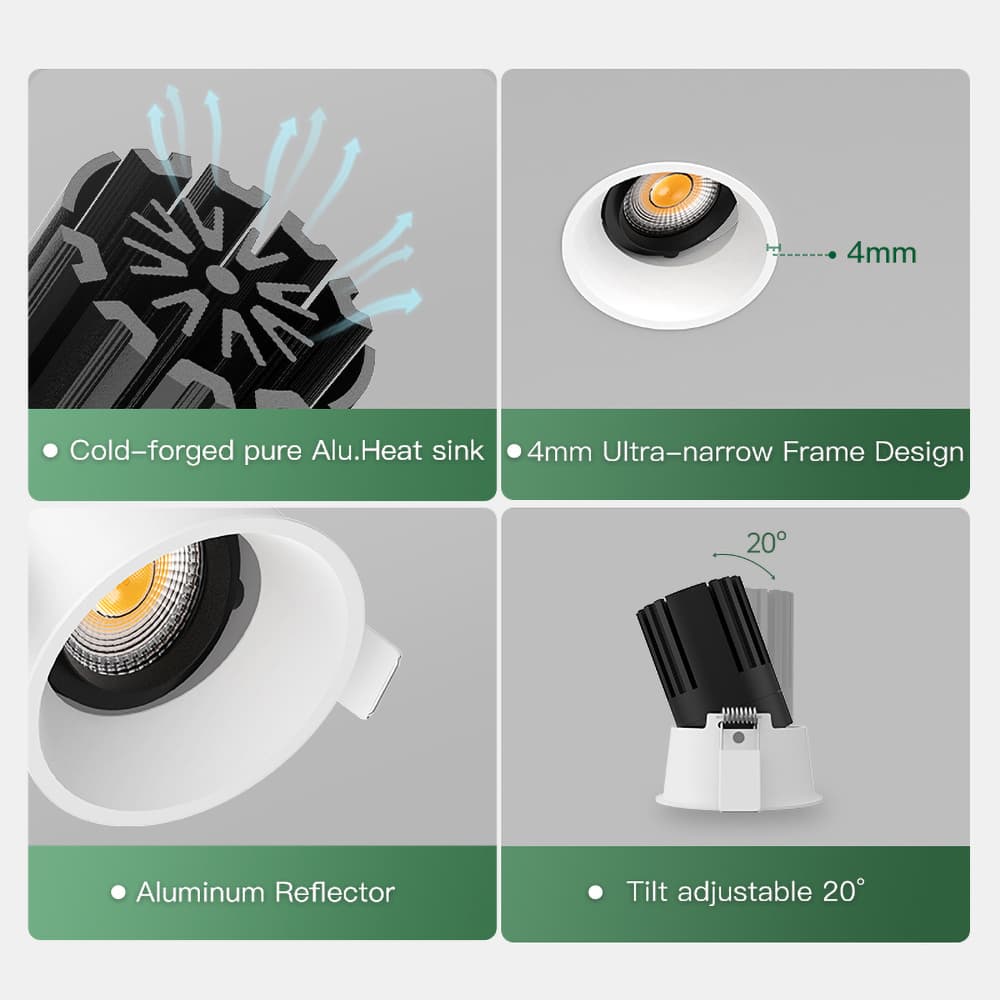

• Durable aluminum housing for effective heat dissipation
• Suitable for residential, hospitality, retail, and commercial interiors

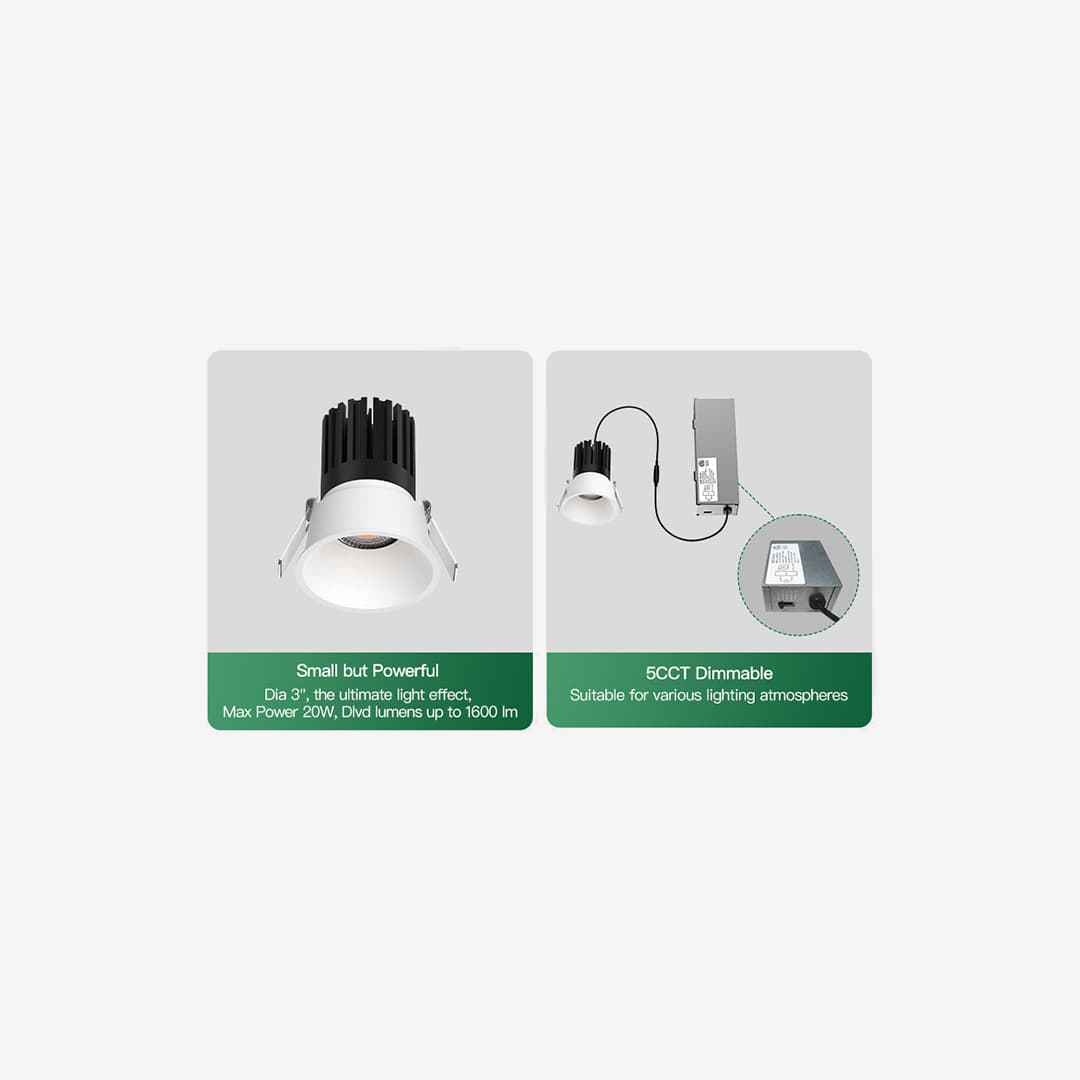

• Dimmable with compatible control systems

Beam
15-80°
Color
97 CRI
Ingress
IP20-65
Output
15 W
Configure this fixtureSpecs and downloads

Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.

Certified & rated

  • ETLIntertek listed
  • FCC
  • CEEU conformity
  • IP65Wet location

Ratings apply per build. The IP65 rating belongs to the builds that carry it, not to every option on this page.

Configurator

Build the fixture, get the order code.

Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.

1 of 12 required

Shape (required)

Required

COB Chip (required)

Required

CCT (required)

Required

Colour Temperature

n/a

Beam Angle (required)

Required

IP Rating (required)

Required

Trim (required)

Required

Reflector Colour (required)

Required

Trim Colour (required)

Required

Driver (required)

Required

Housing (required)

Required

Tethered Controller (required)

Required

Order code

N75-····-··-XK-··-··-····-··-··-··-··

11 required axes remaining

Configured price

$189.00

Photometrics

See what the beam does before you cut the hole.

Pick an optic, a mounting height and a color temperature. One set of inputs drives all four views: the beam in section, the polar distribution, the spacing a run sets out at, and color rendition. Tested IES files for every build are in the downloads below.

Beam angle
Ceiling height
Colour temperature
DistanceFocus Ø
1.0 m0.44 m
2.0 m0.89 m
Floor · 2.74 m1.22 m

The diameter is geometry from the rated beam angle and holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.

h = 9 ft / 2.74 m25° beam · 3000KFocus 1.22 m / 4.0 ft
N75 · Beam section25° · 3000K · 9 ft ceilingScale varies

Installed

At work in projects we lit.

View projects →

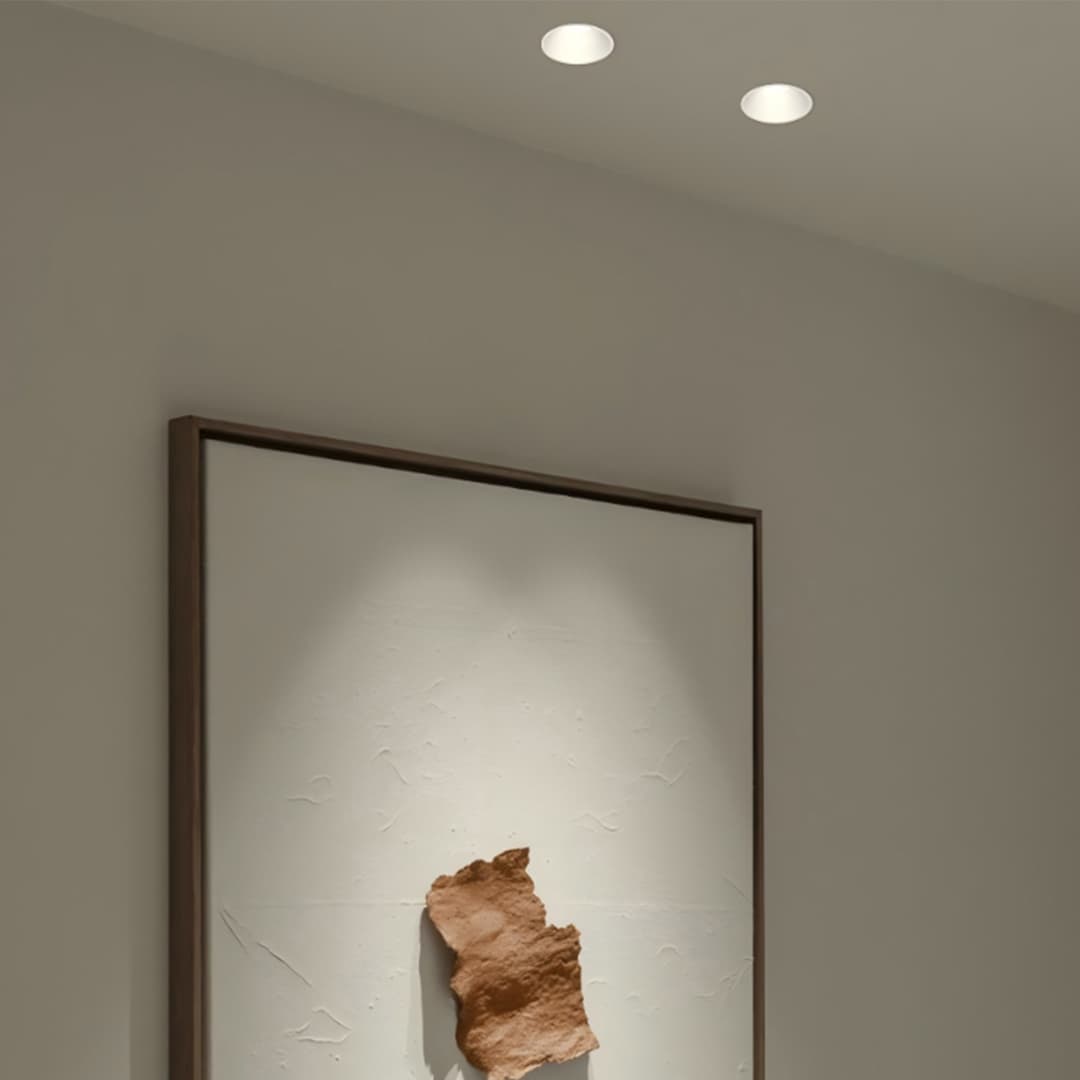

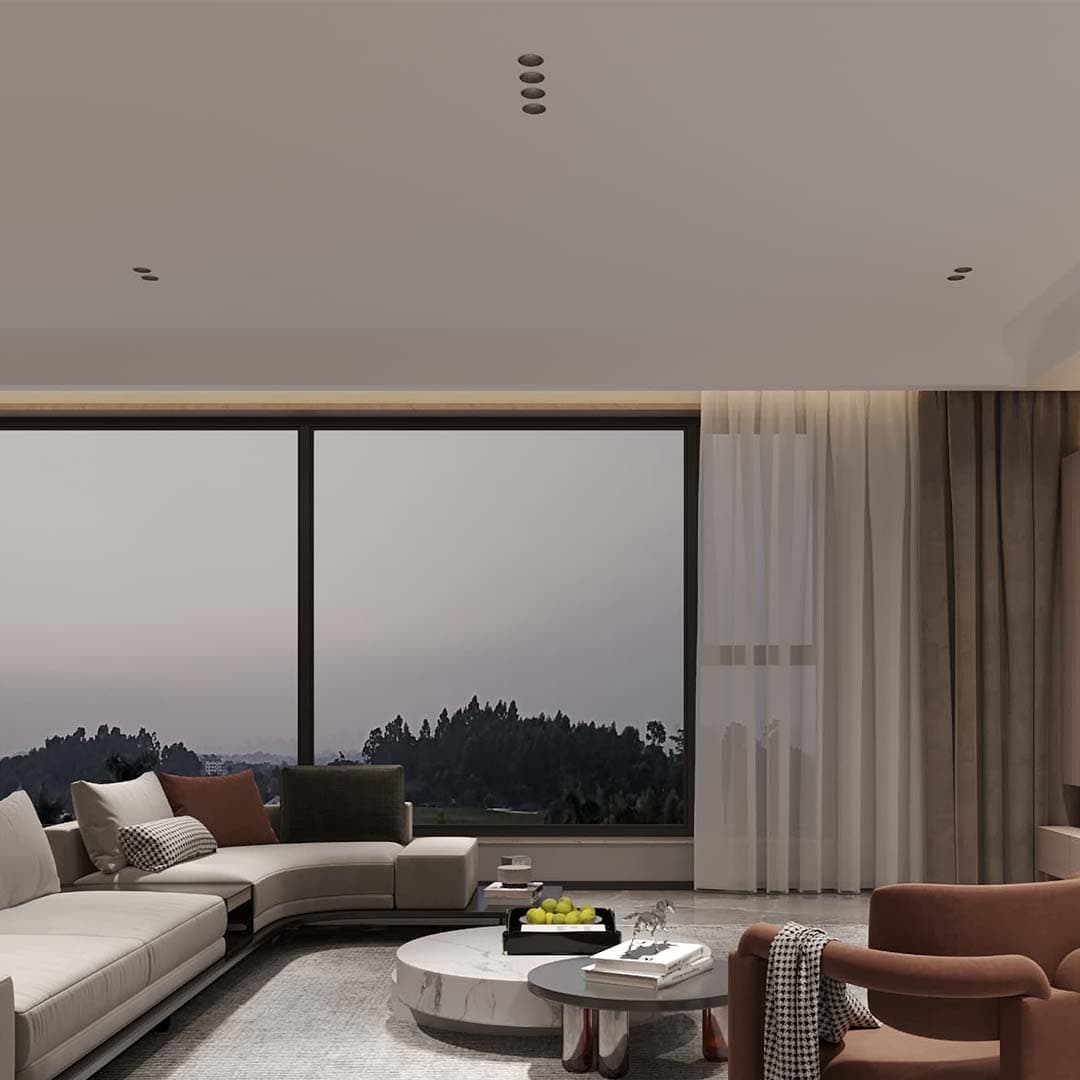

Recessed downlights set flush into a plaster ceiling

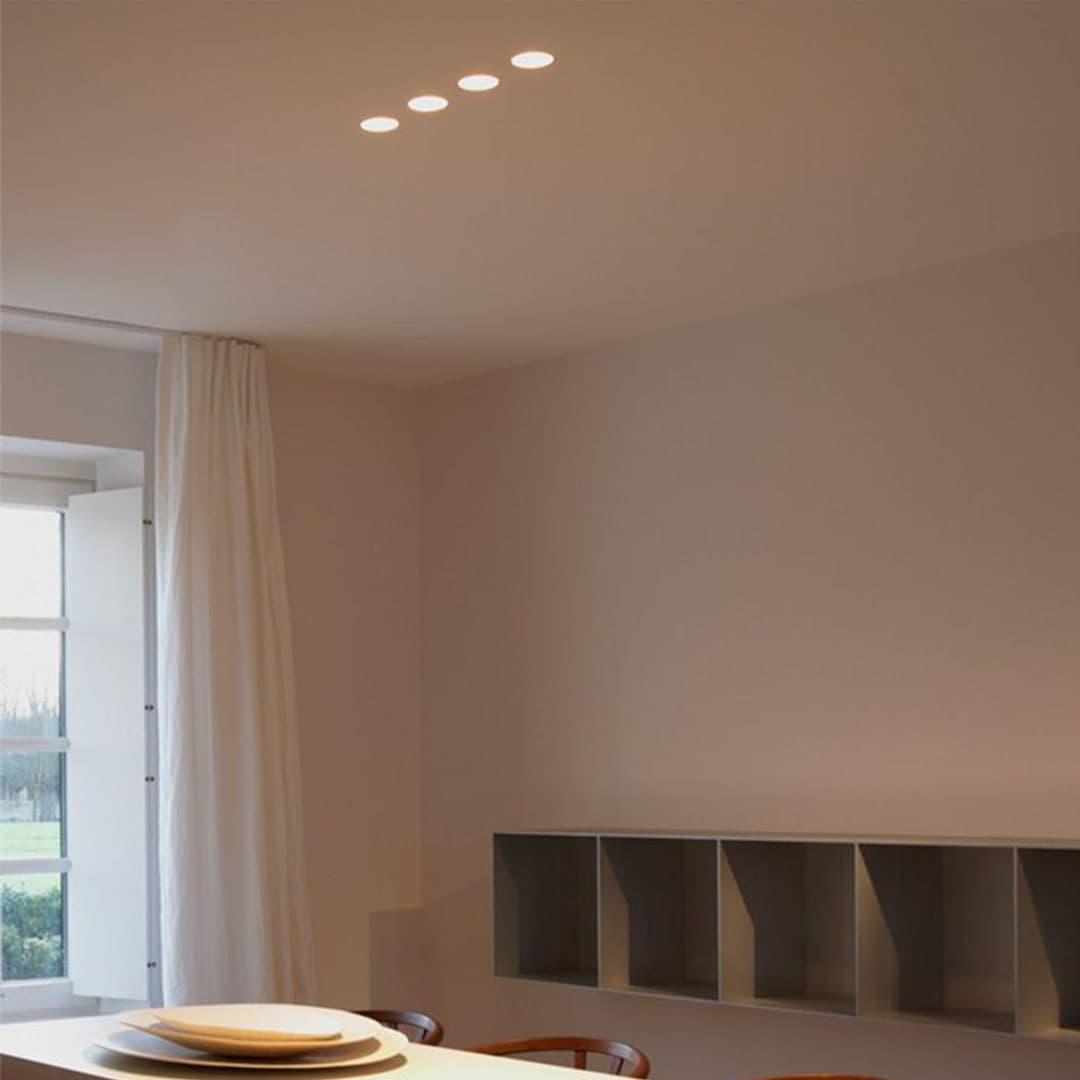

A pair of recessed downlights in an unbroken ceiling plane

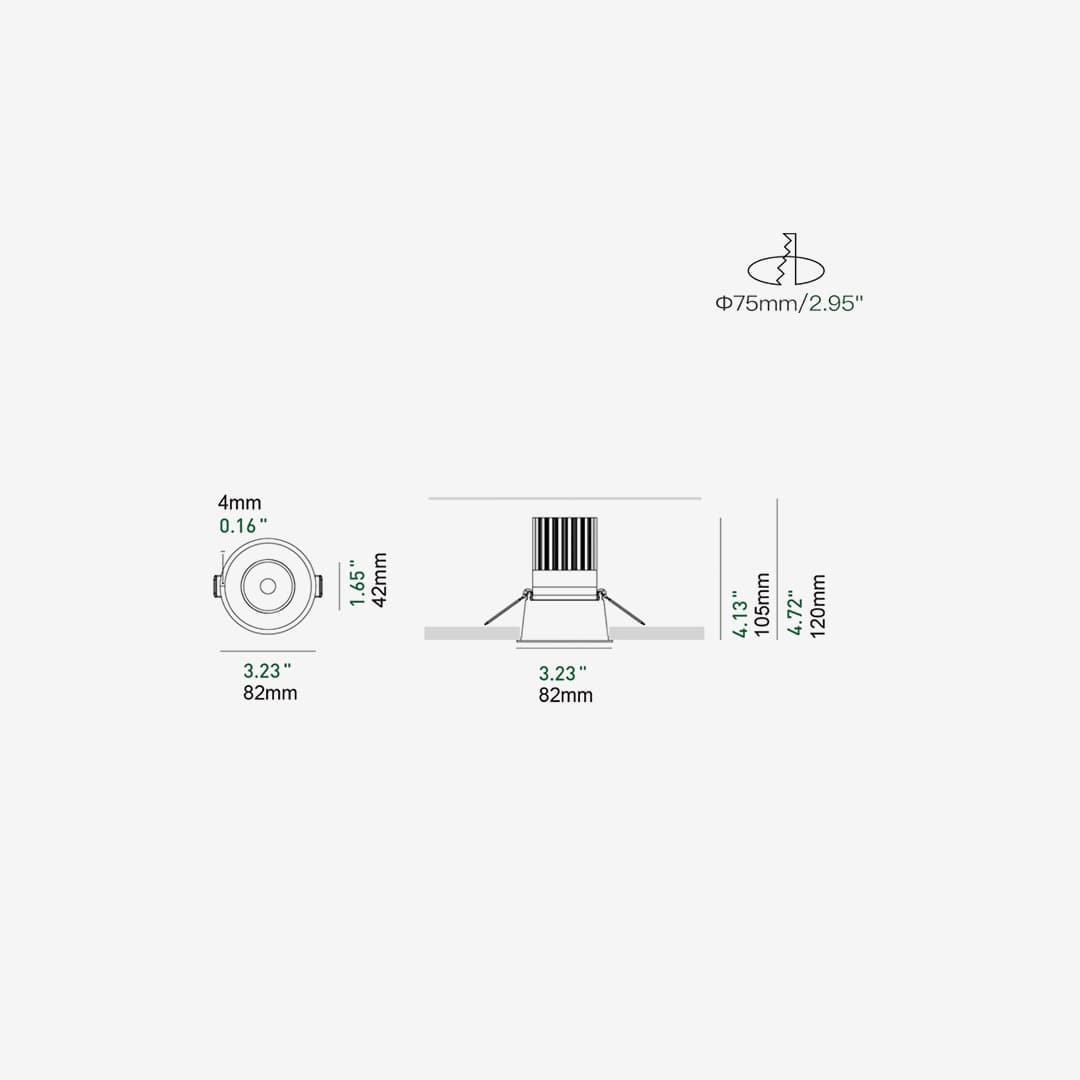

Technical specification

Material
Gypsum Housing, Aluminum Body
Shape
Round · Square
COB chip
24V CV · 36V CC
Colour
Static CCT · 5CCT Switch · 2700K to 6000K · 1800K to 5500K · 3000K to 1800K · RGBW
Beam angles
15° · 25° · 35° · 50° · 80°
Ingress and aiming
IP20 · IP44 · IP65
Trim
Trimless · Micro-flange · Millwork
Reflector colour
Black · White
Driver
Remote driver · 0-10V · Triac · Dali2
Housing
None · Flat Bracket · Non-IC Housing · IC-Housing
Tethered control
Casambi · Tuya
Certification
Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
Warranty
5 years

Downloads

  • Spec sheetPDF
  • IES photometric filesOn request
  • Installation guidePDF
  • Revit and CAD blocksOn request

Anything marked on request we will send the same day. Ask at info@nuordic.com.
