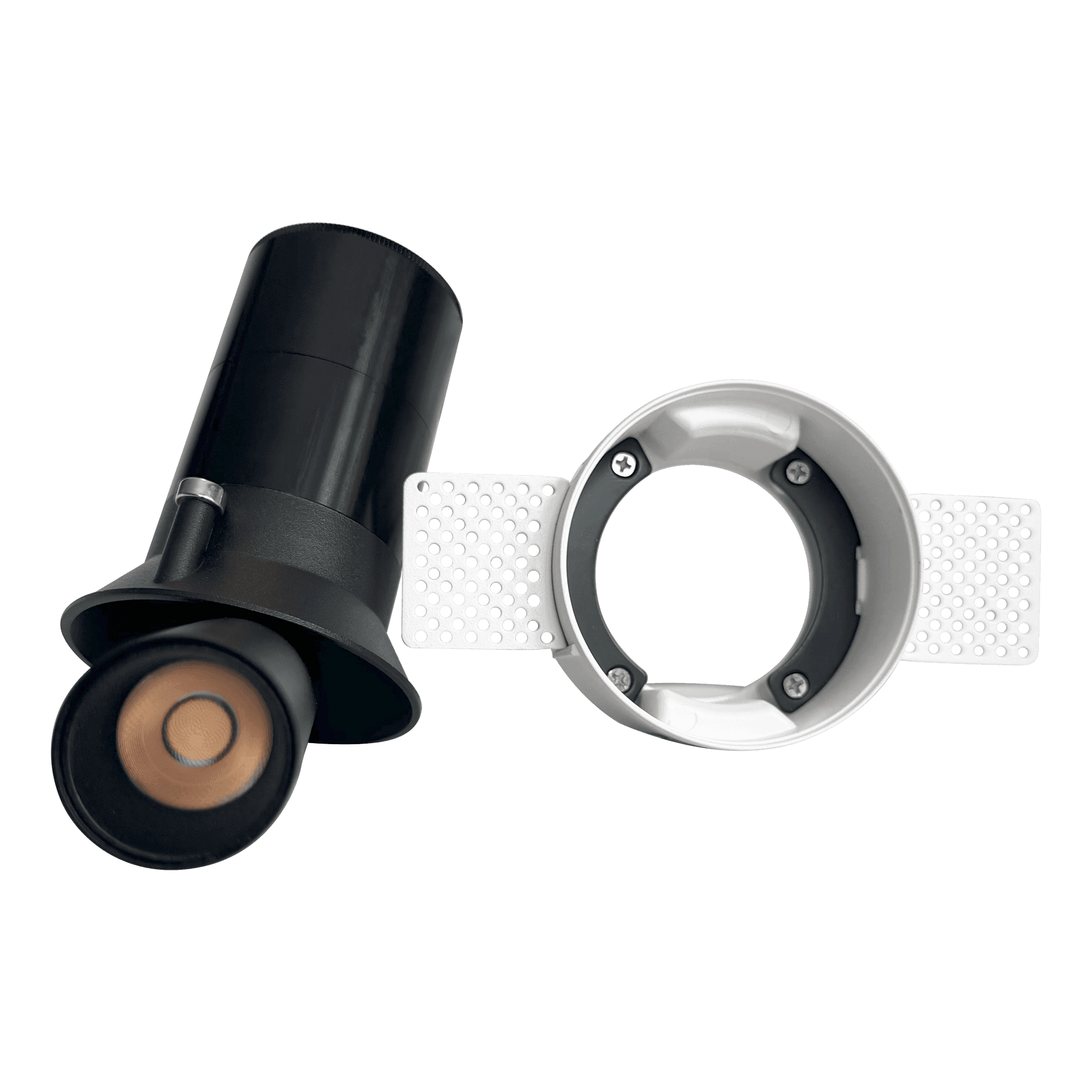

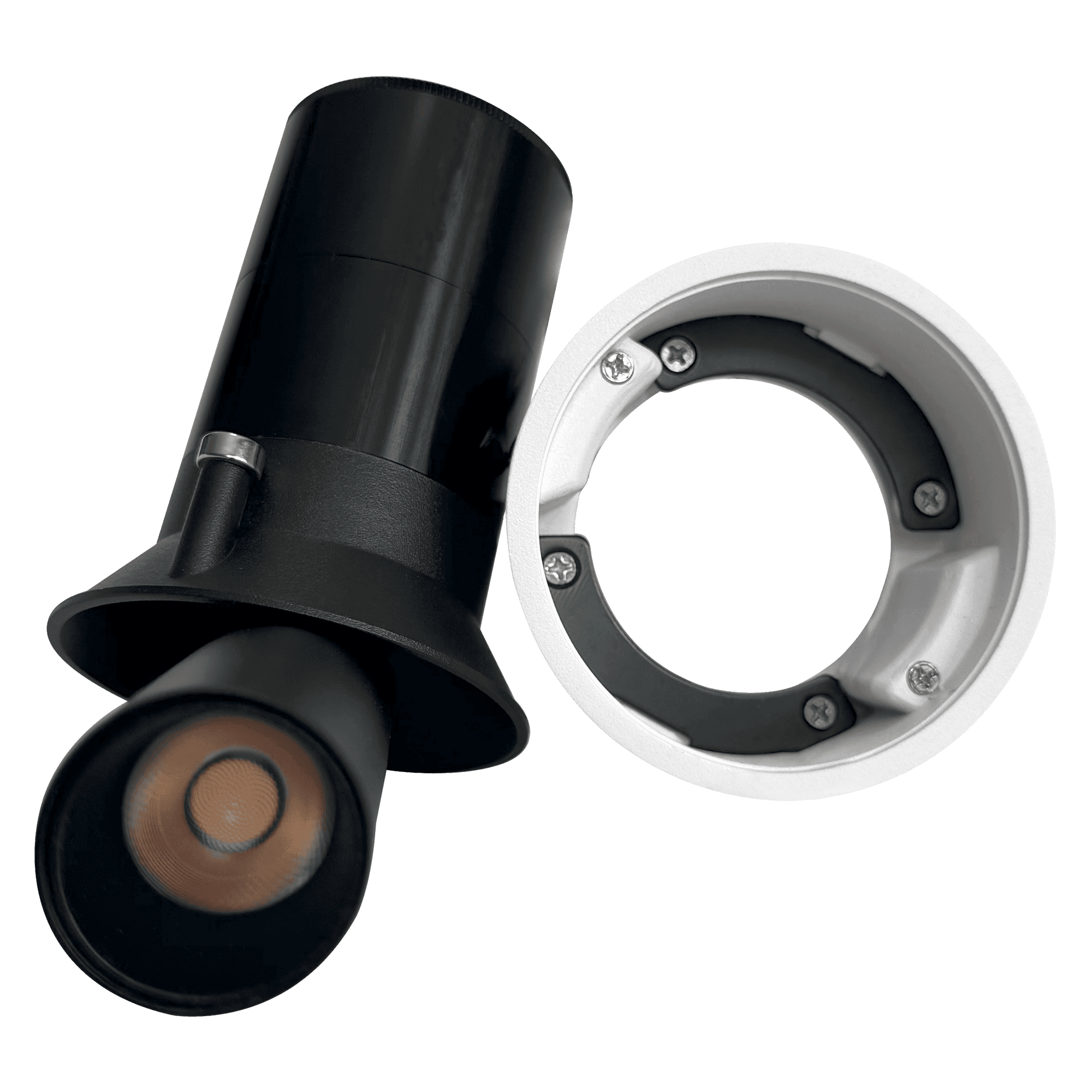

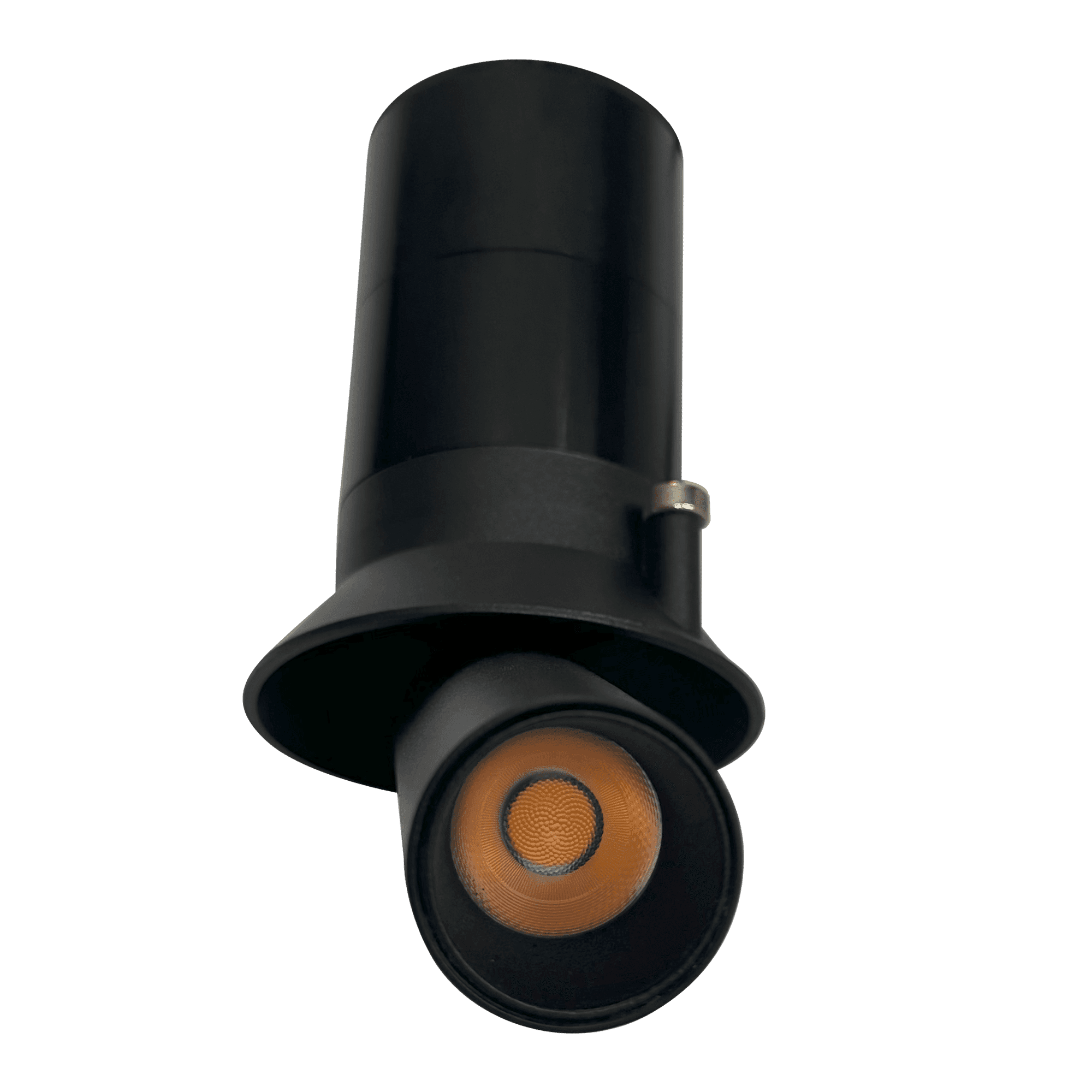

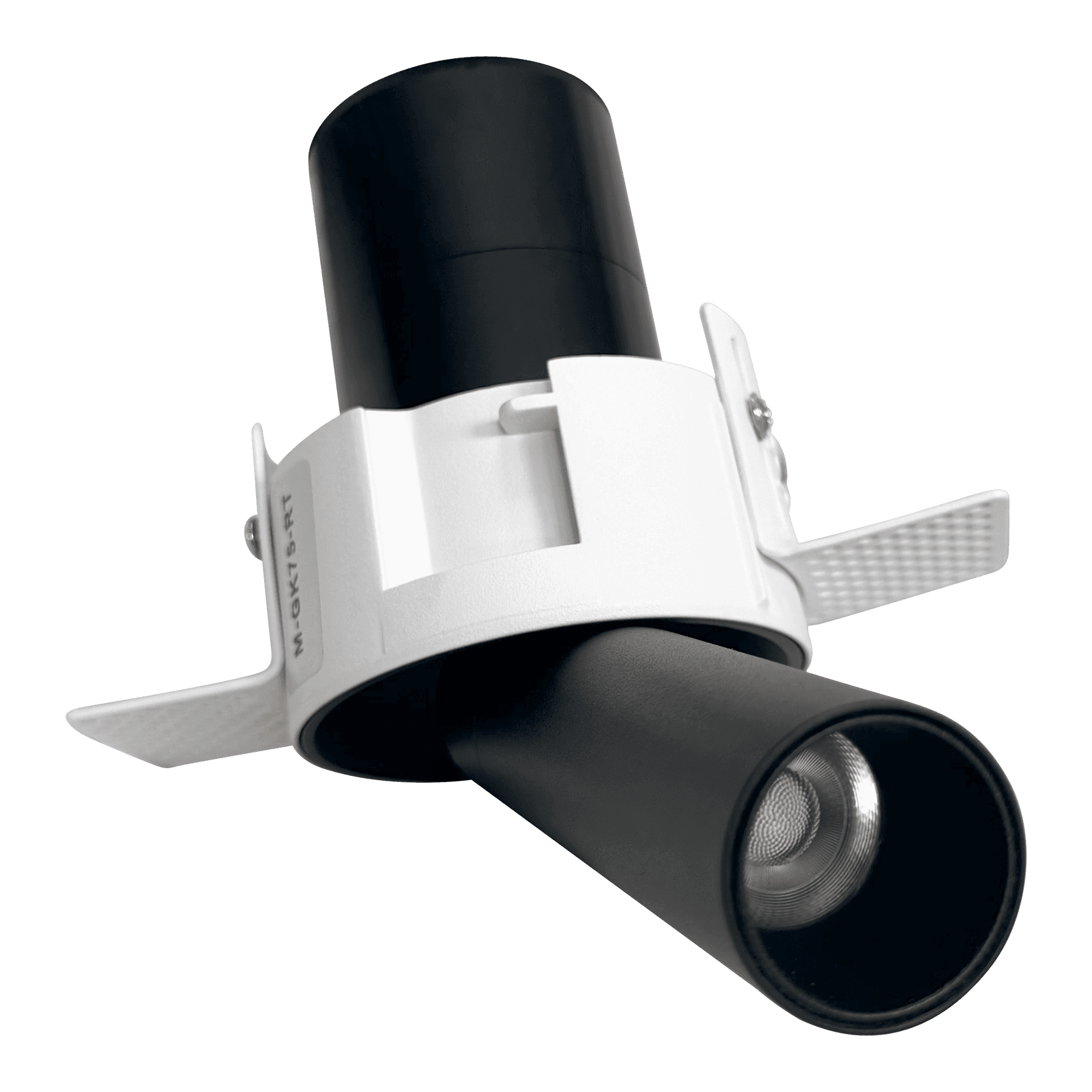

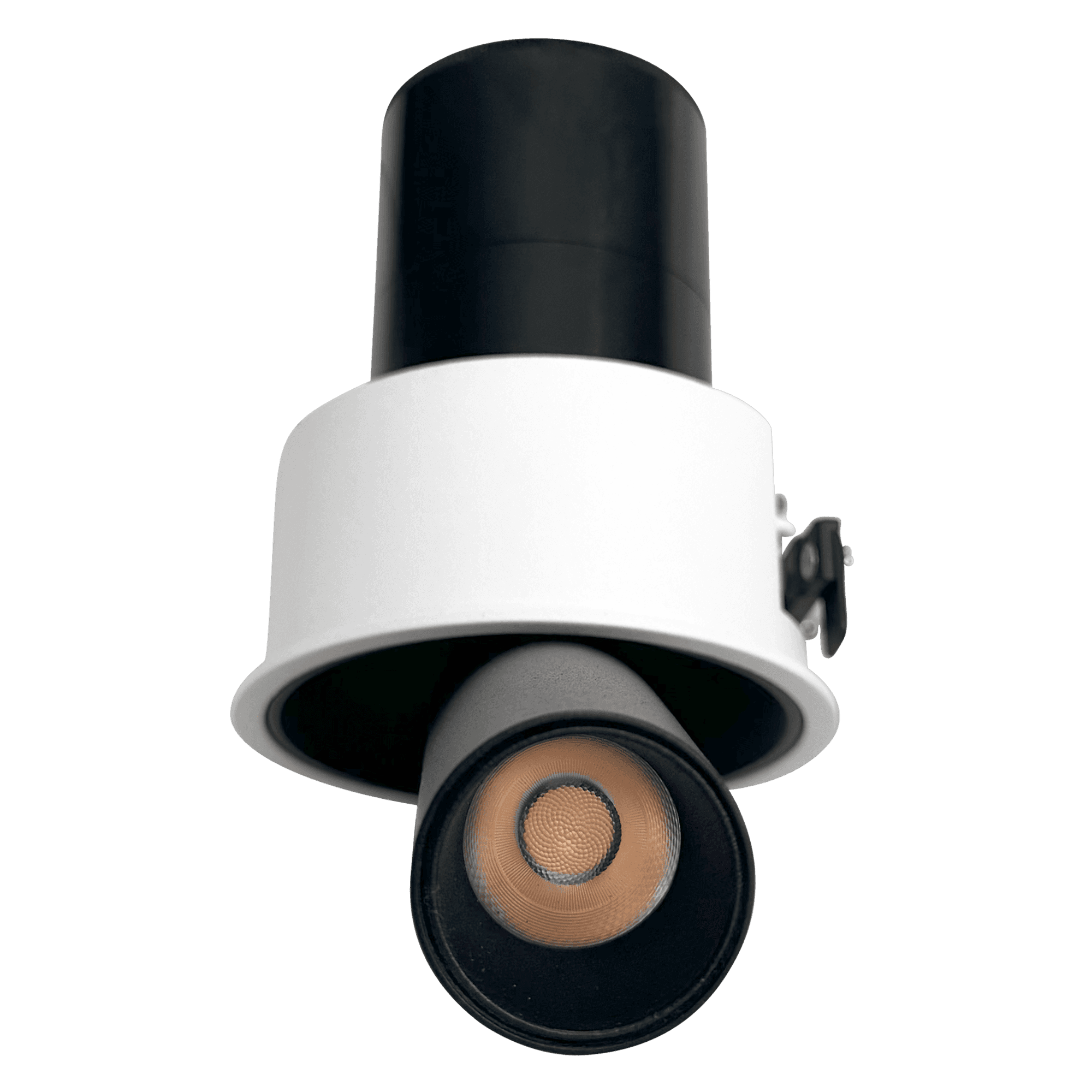

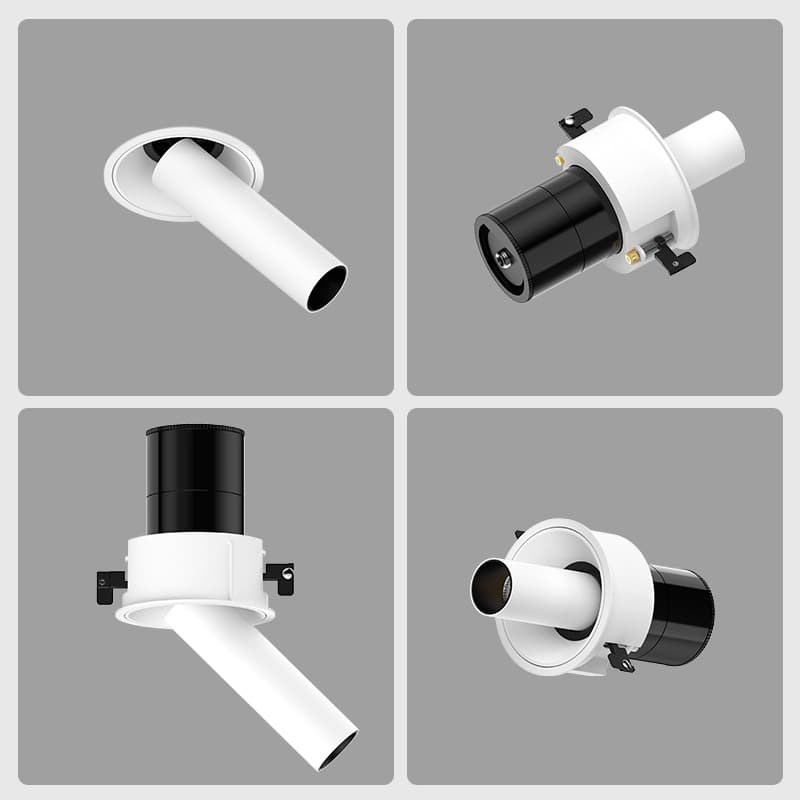

3 Inch Telescopic Spotlight
Model N75-R06 · 3 trims

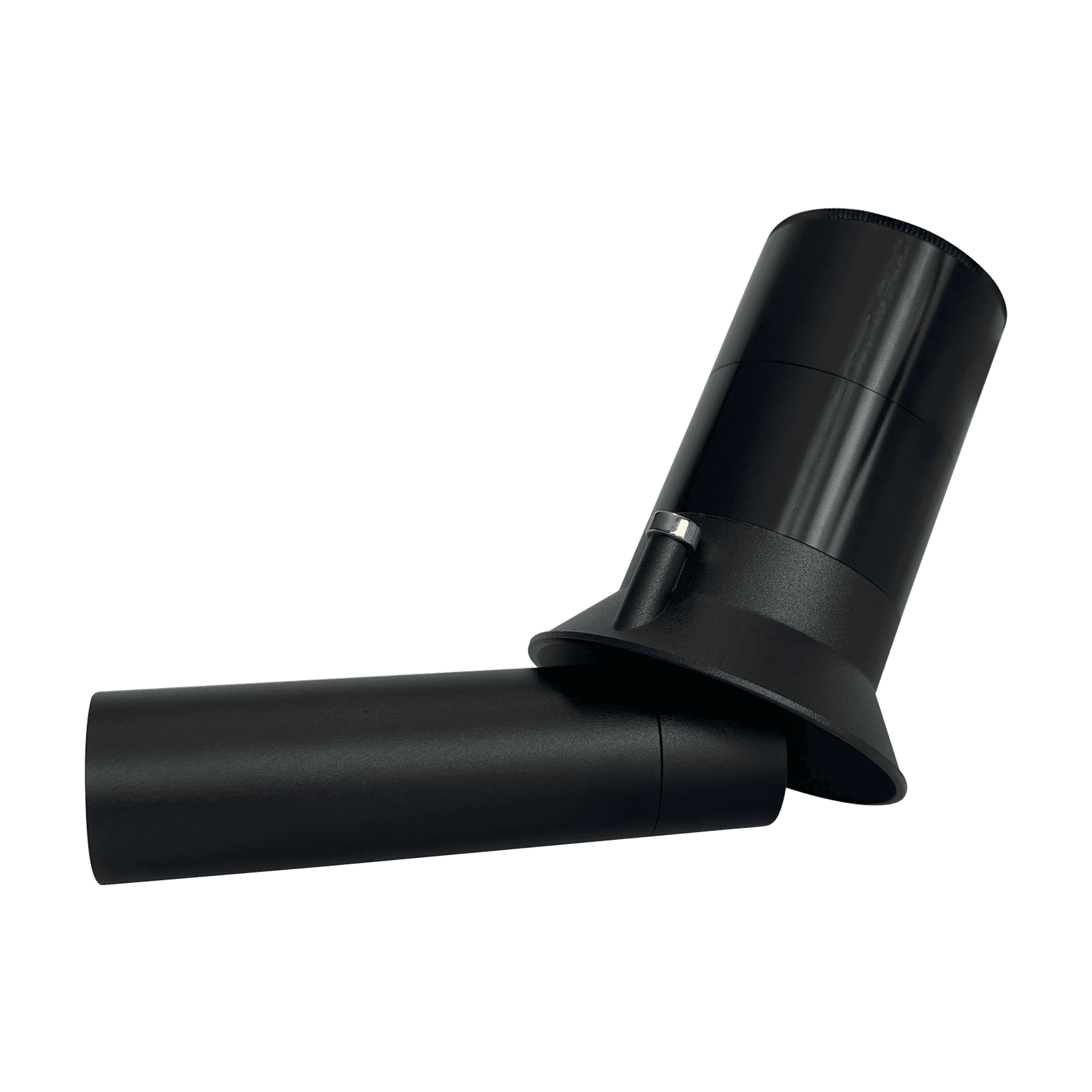

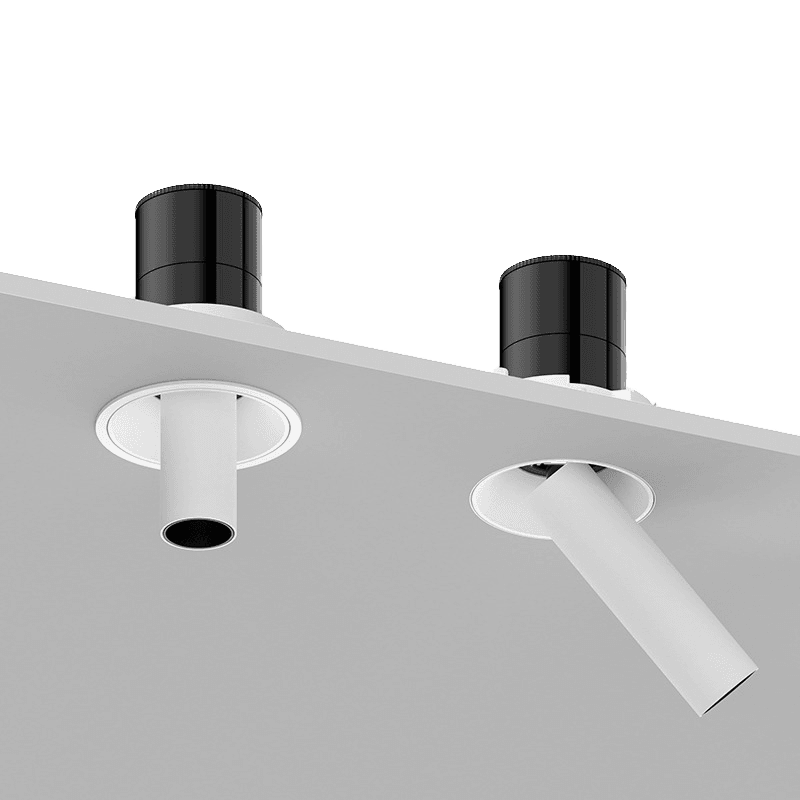

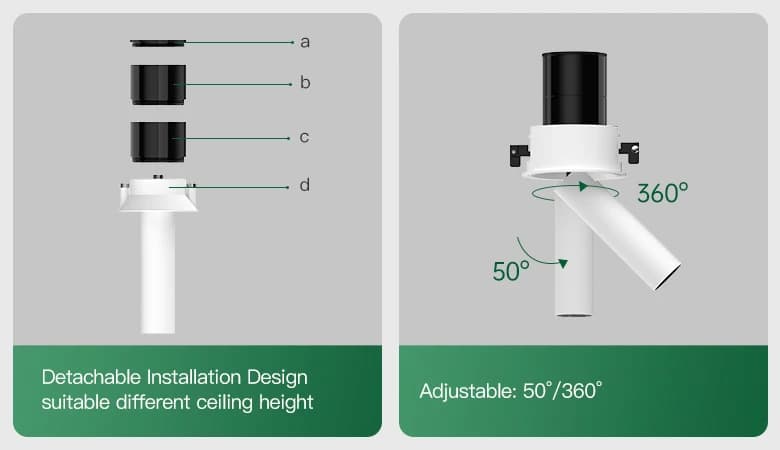

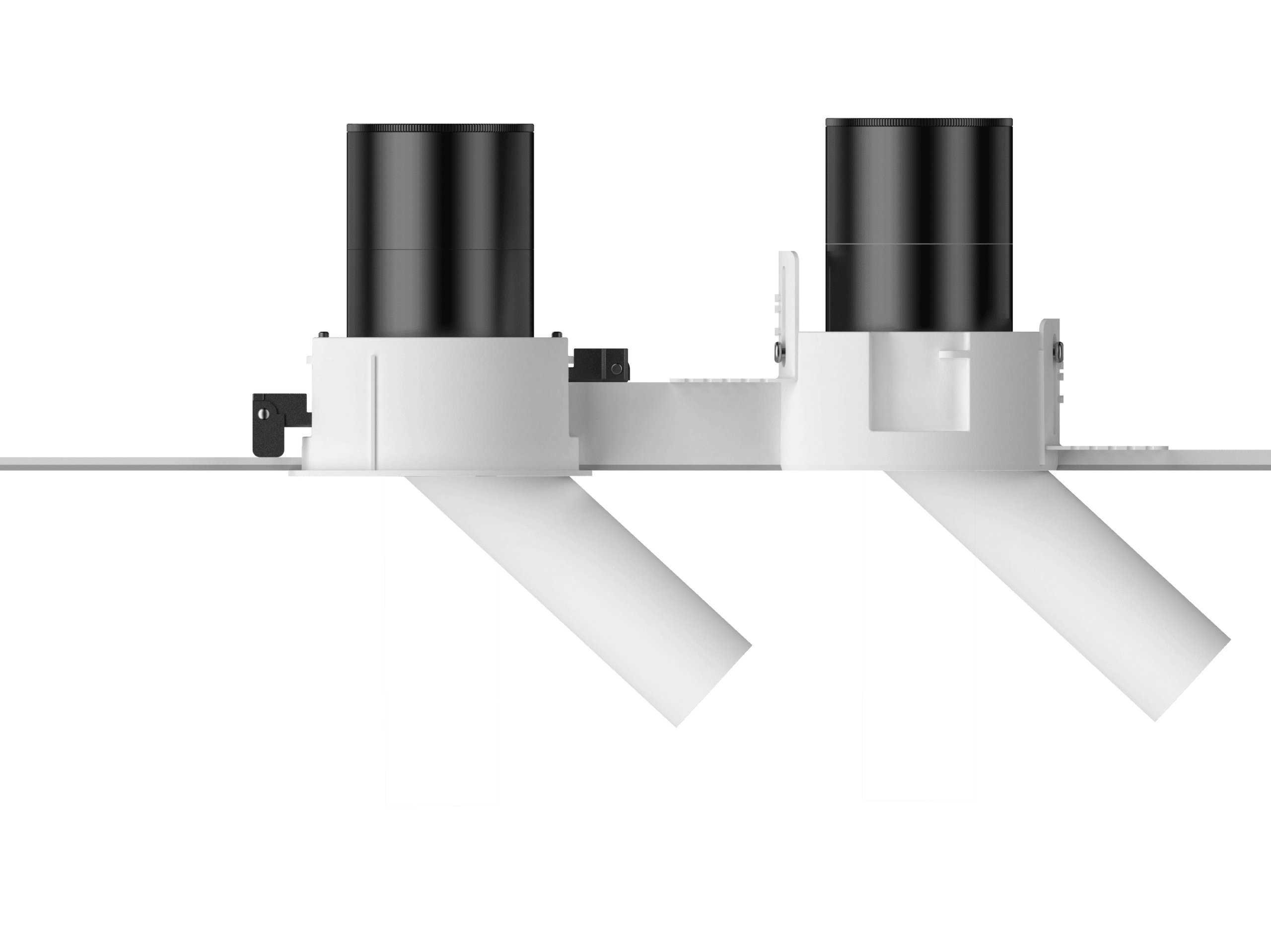

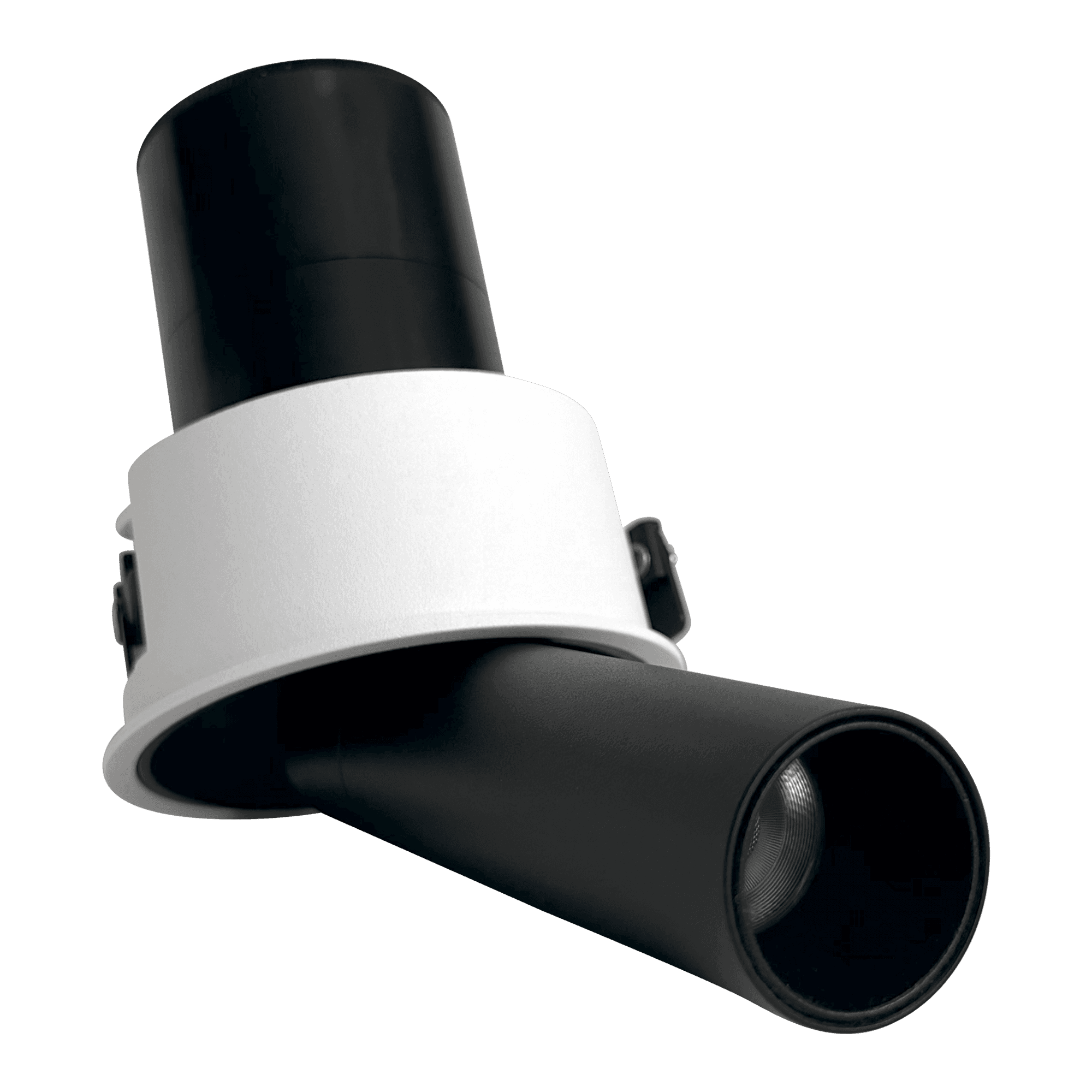

The Retractable Spot Light is a sleek, recessed spotlight engineered for glare-free, high-impact illumination. Its retractable design tilts up to 25°–75° for precise accenting of décor or architectural features, while the anti-glare lens delivers comfortable, soft lighting. Integrate seamlessly with Triac, 0-10V, or DALI dimming. Boasting a CRI of 97 and color temperatures ranging from 2700K to 5000K, this durable aluminum fixture offers accurate color rendering and efficient heat dissipation. Recessing smoothly into ceilings for a modern, refined look, it’s perfect for living rooms, offices, retail spaces, or galleries—bringing energy-efficient, flexible lighting to any environment.
- Beam
- 15-80°
- Color
- 97 CRI
- Ingress
- IP20-65
- Output
- 8 W
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- ETLIntertek listed
- FCC
- CEEU conformity
- IP65Wet location
Ratings apply per build. The IP65 rating belongs to the builds that carry it, not to every option on this page.
Configurator
Build the fixture, get the order code.
Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.
1 of 12 required
Shape (required)
RequiredCOB Chip (required)
RequiredCCT (required)
RequiredColour Temperature
n/aBeam Angle (required)
RequiredIP Rating (required)
RequiredTrim (required)
RequiredReflector Colour (required)
RequiredTrim Colour (required)
RequiredDriver (required)
RequiredHousing (required)
RequiredTethered Controller (required)
RequiredOrder code
N75-····-··-XK-··-··-····-··-··-··-··
11 required axes remaining
Configured price
$165.00
Photometrics
See what the beam does before you cut the hole.
Pick an optic, a mounting height and a color temperature. One set of inputs drives all four views: the beam in section, the polar distribution, the spacing a run sets out at, and color rendition. Tested IES files for every build are in the downloads below.
Beam angle
Ceiling height
Colour temperature
DistanceFocus Ø
1.0 m0.44 m
2.0 m0.89 m
Floor · 2.74 m1.22 m
The diameter is geometry from the rated beam angle and holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.
N75 · Beam section25° · 3000K · 9 ft ceilingScale varies

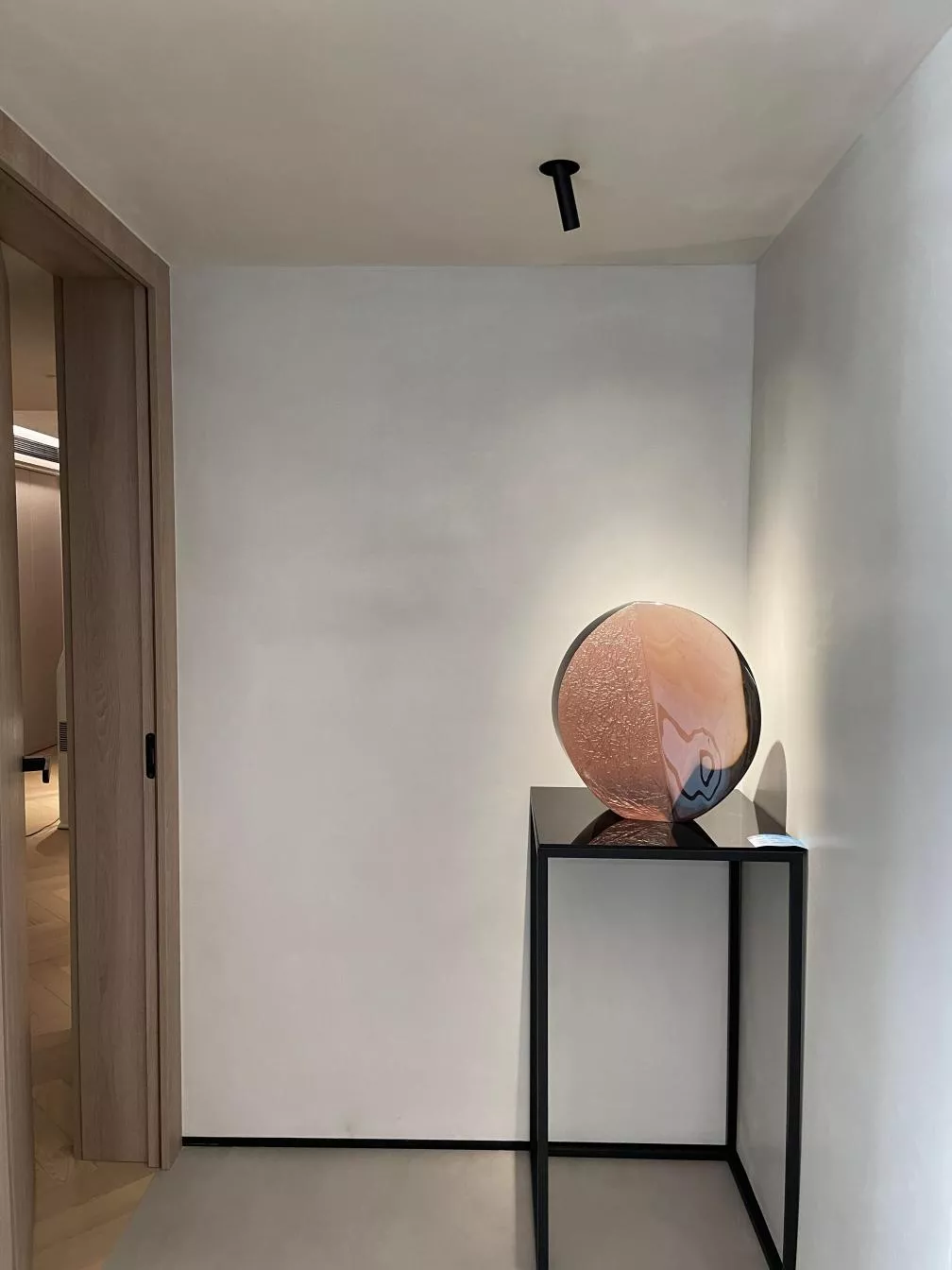

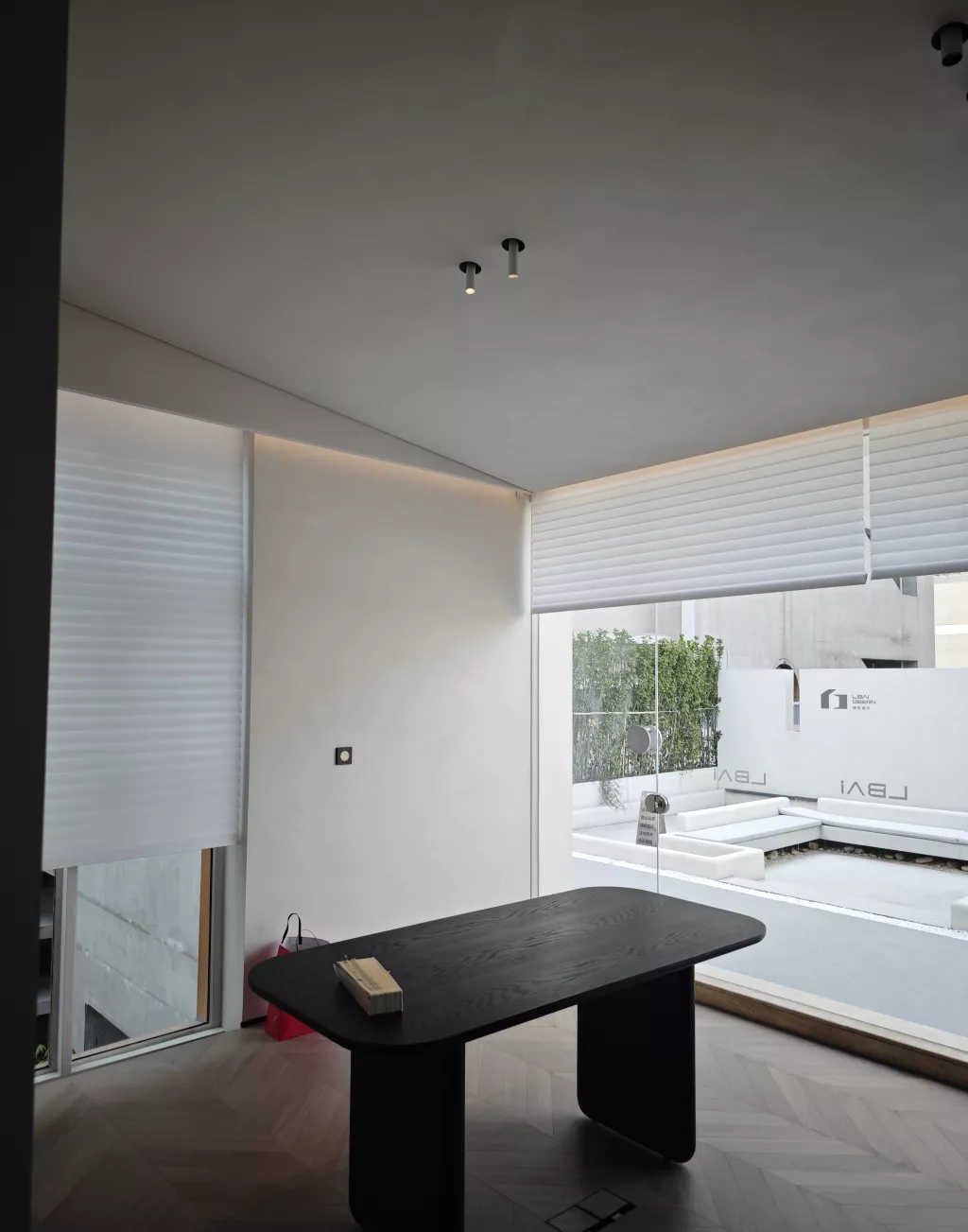

Installed
At work in projects we lit.
Technical specification
- Material
- Cold Forged Aluminum
- Shape
- Round · Square
- COB chip
- 24V CV · 36V CC
- Colour
- Static CCT · 5CCT Switch · 2700K to 6000K · 1800K to 5500K · 3000K to 1800K · RGBW
- Beam angles
- 15° · 25° · 35° · 50° · 80°
- Ingress and aiming
- IP20 · IP44 · IP65

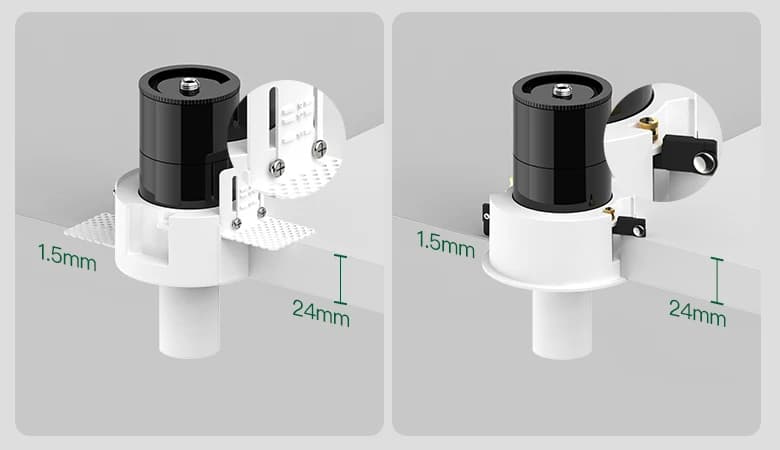

- Trim
- Trimless · Micro-flange · Millwork
- Reflector colour
- Black · White
- Driver
- Remote driver · 0-10V · Triac · Dali2
- Housing
- None · Flat Bracket · Non-IC Housing · IC-Housing
- Tethered control
- Casambi · Tuya
- Certification
- Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
- Warranty
- 5 years
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guidePDF
- Revit and CAD blocksOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
