Collections/Downlights/3 Inch Recessed Square Adjustable Double Downlight

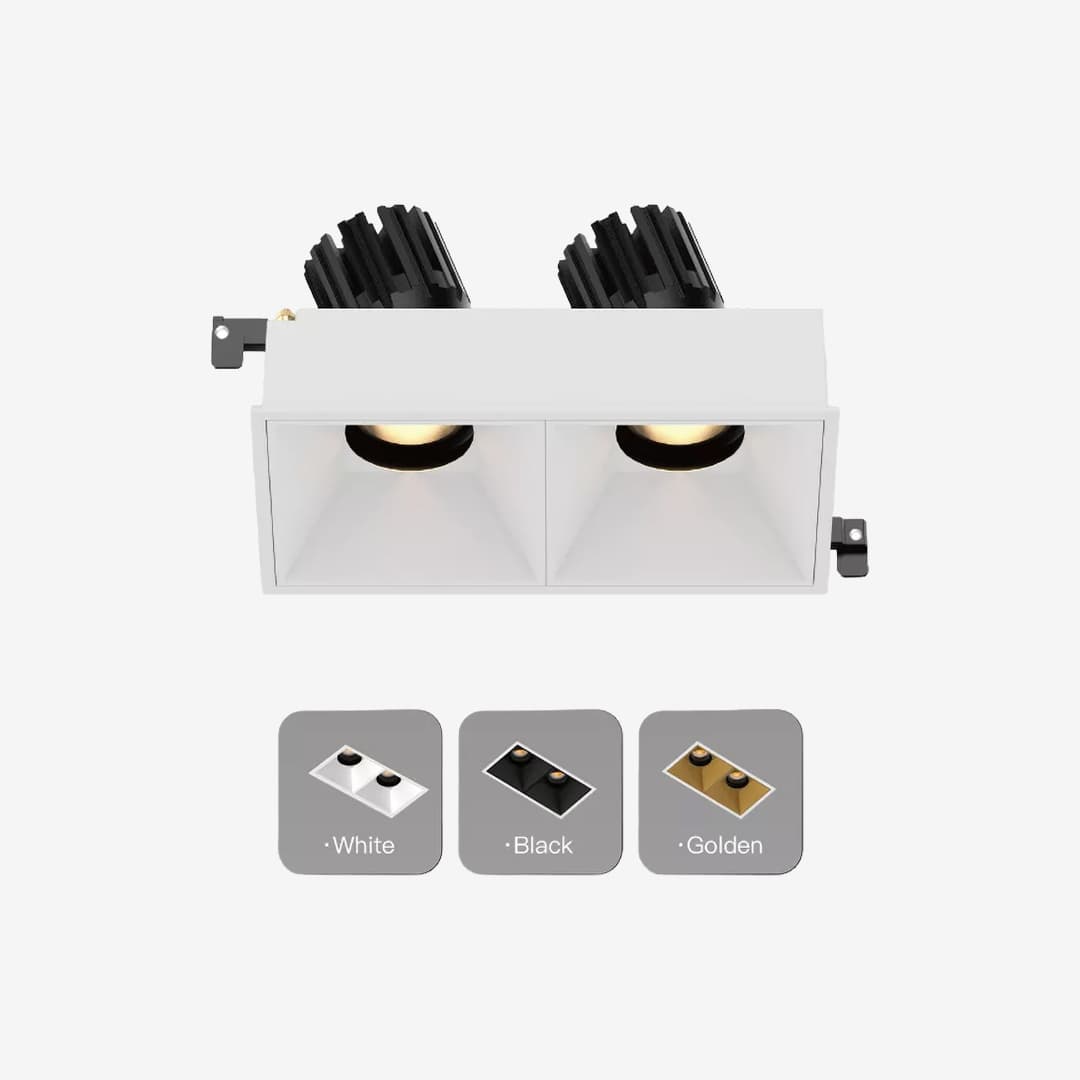

3 Inch Recessed Square Adjustable Double Downlight
Downlights

3 Inch Recessed Square Adjustable Double Downlight

Model N75-S01QS2 · 3 trims

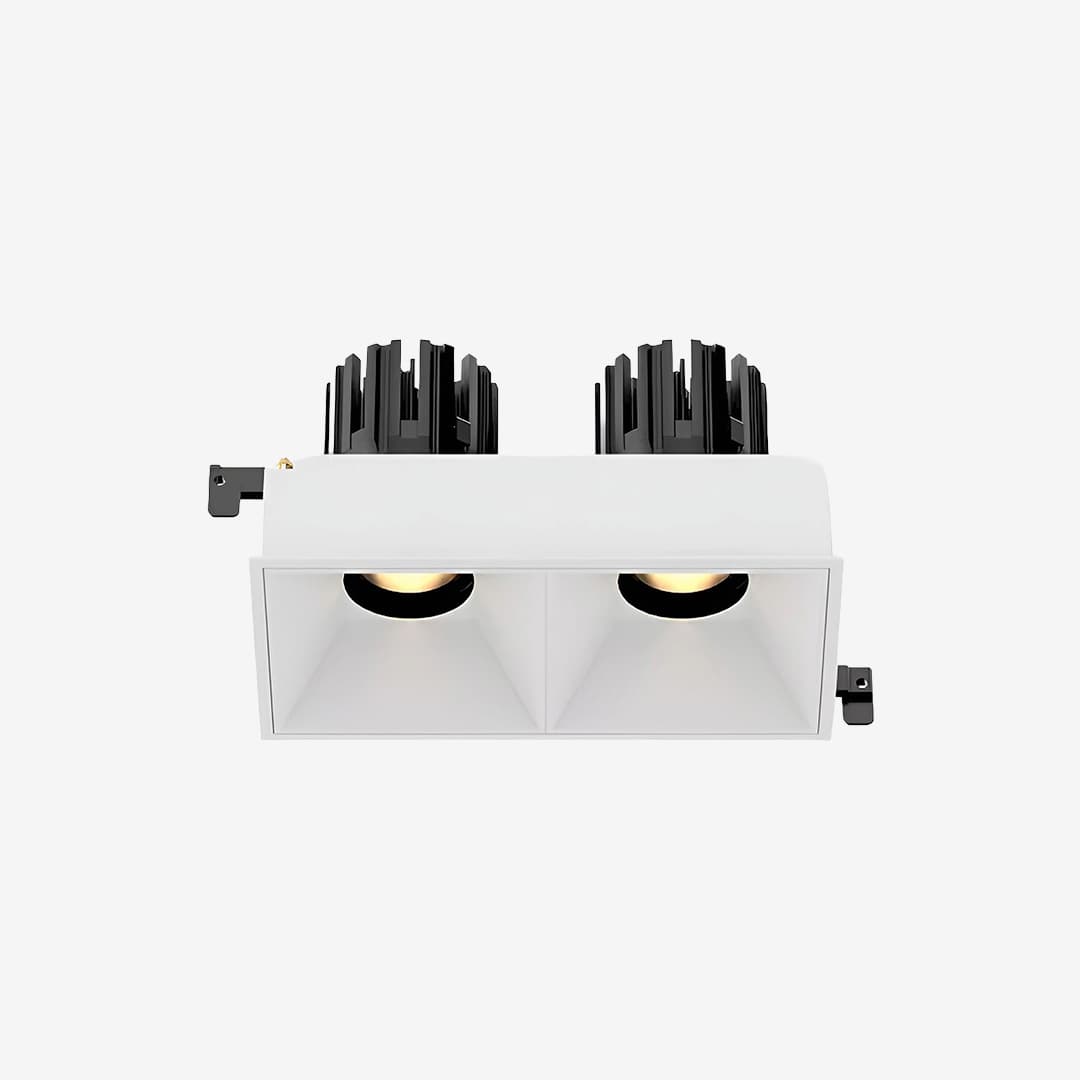

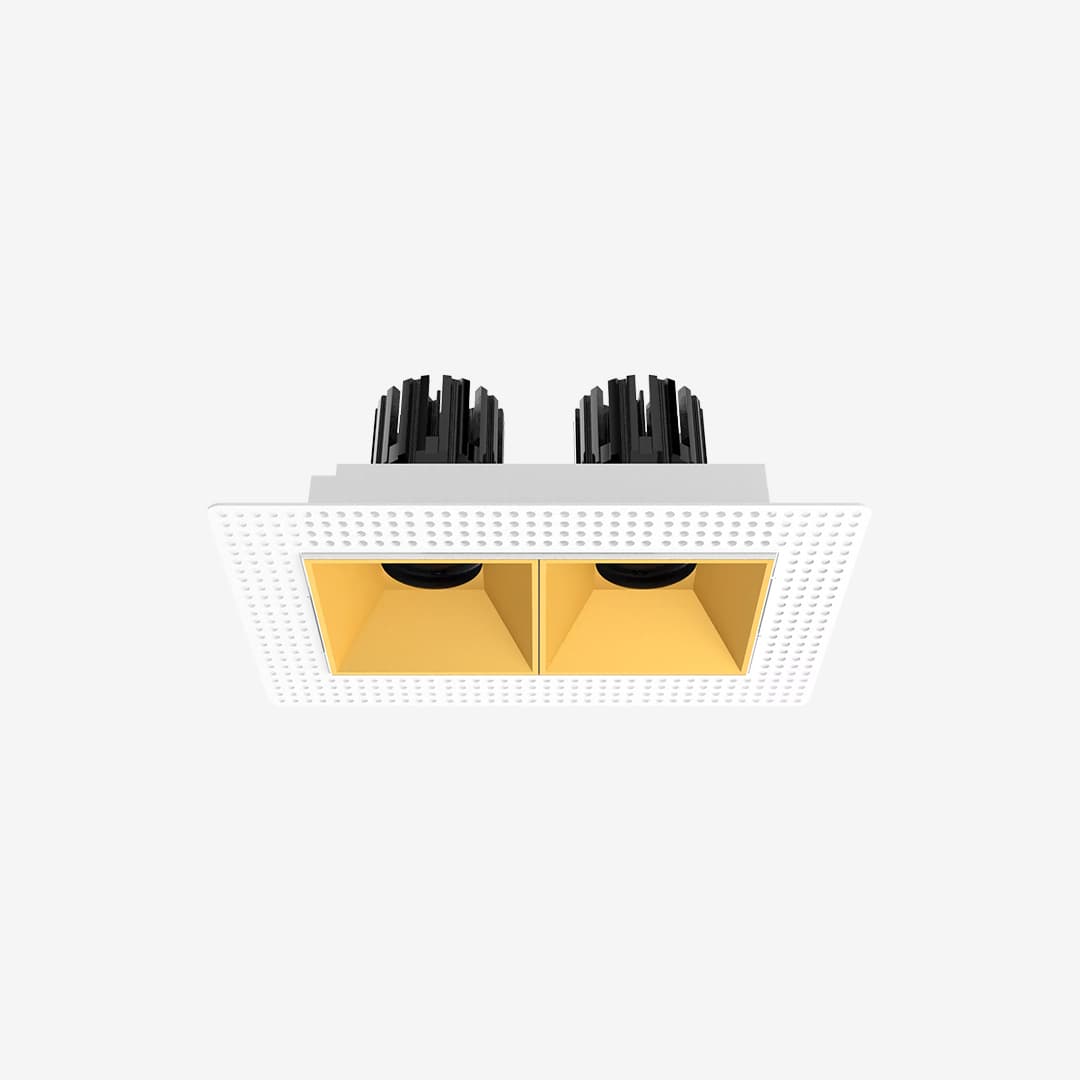

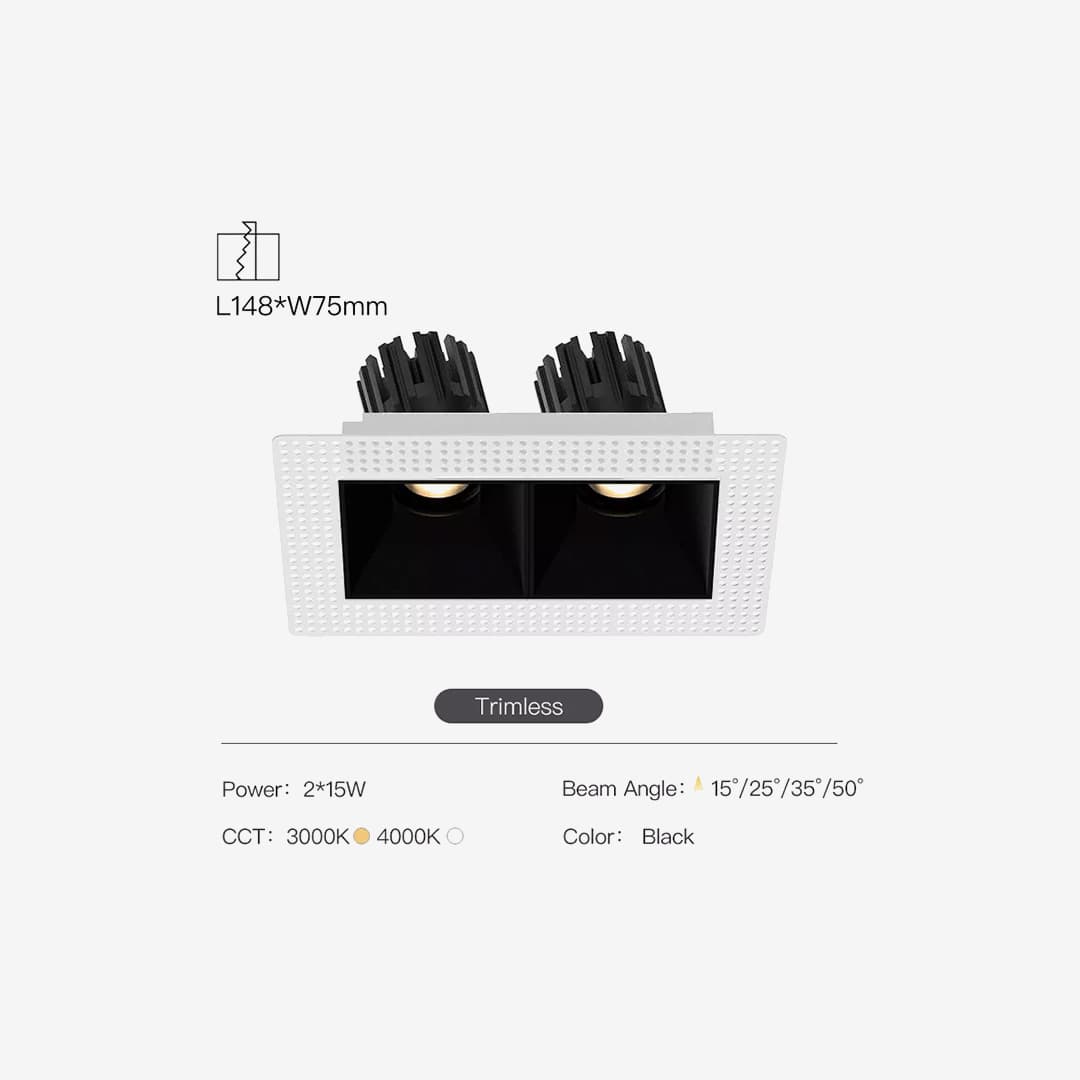

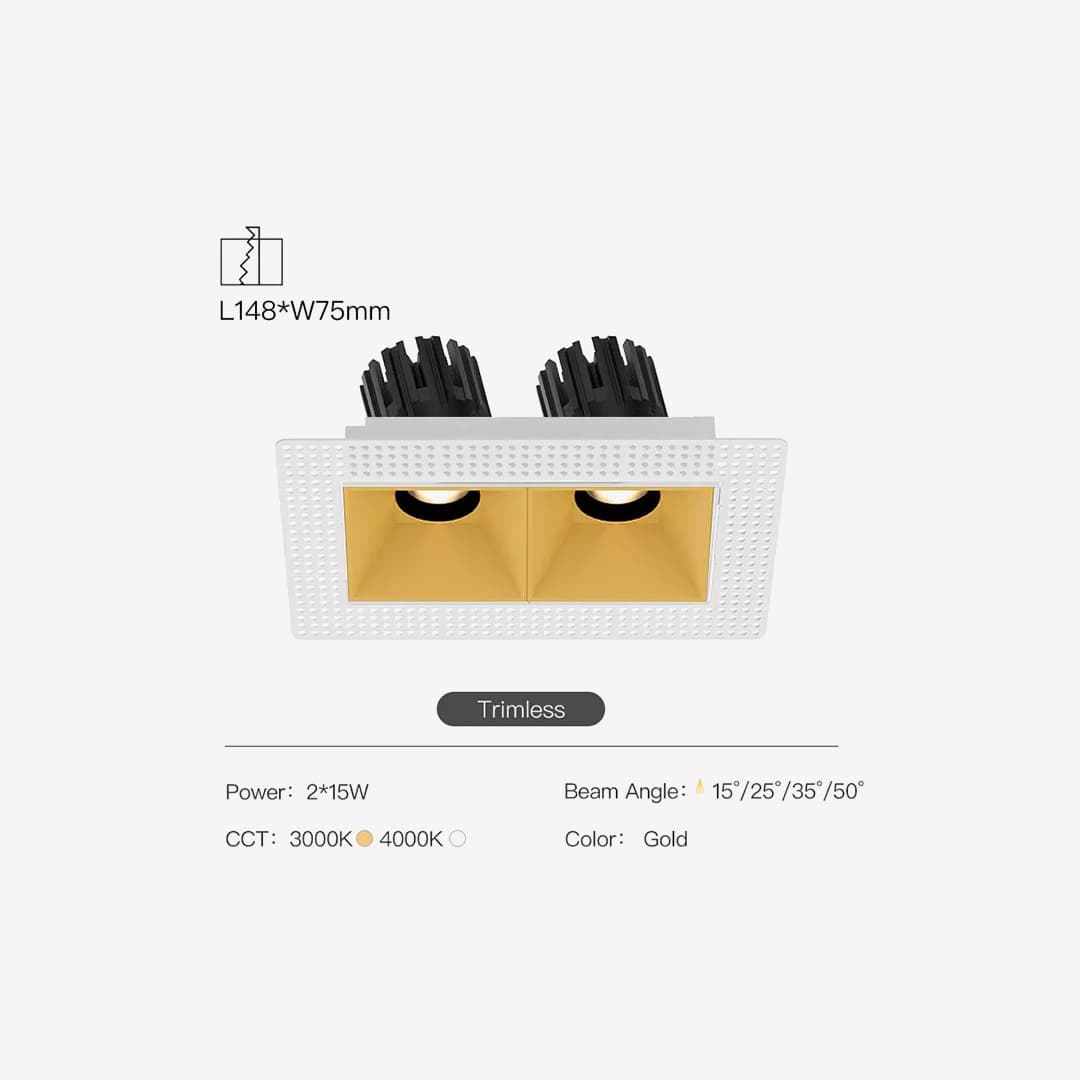

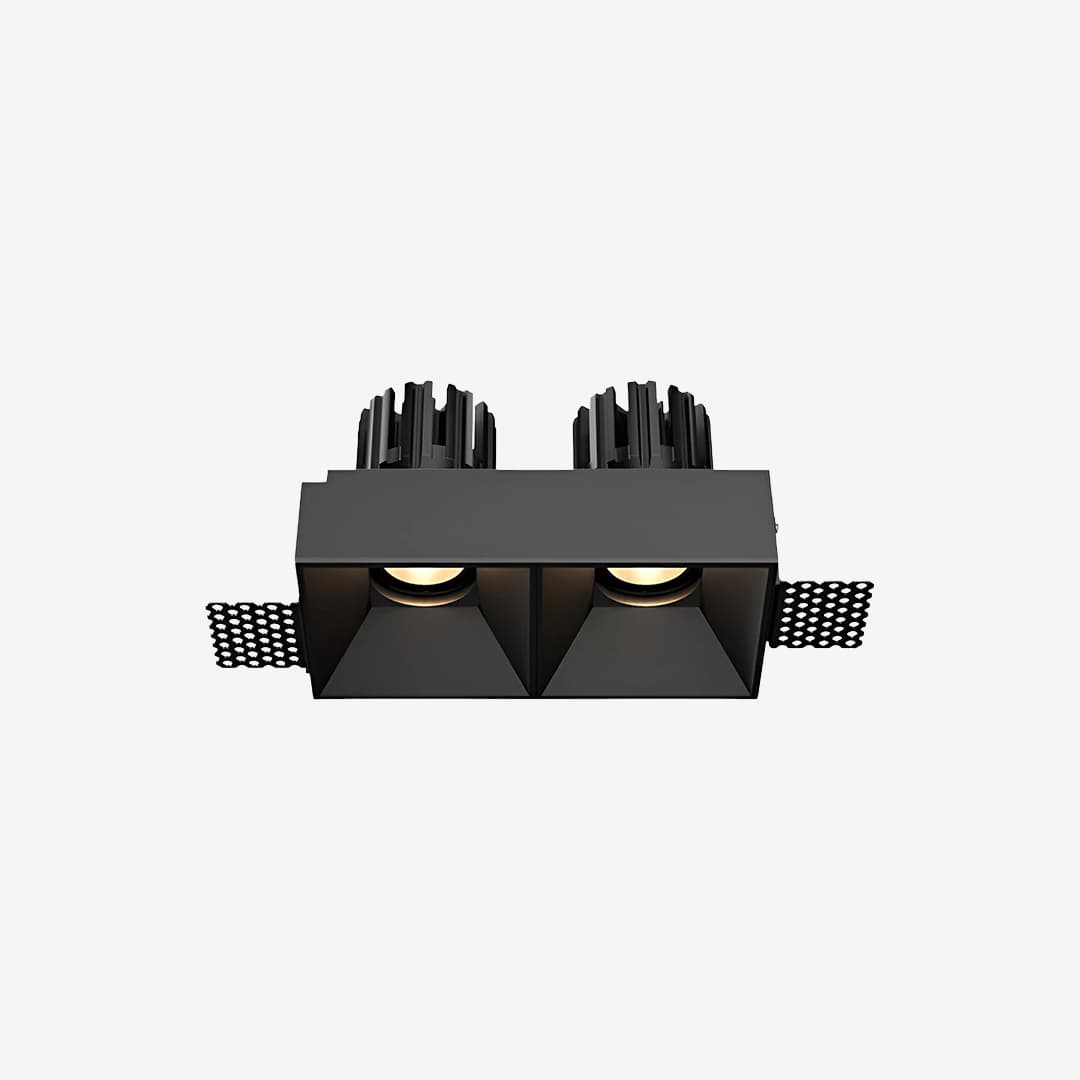

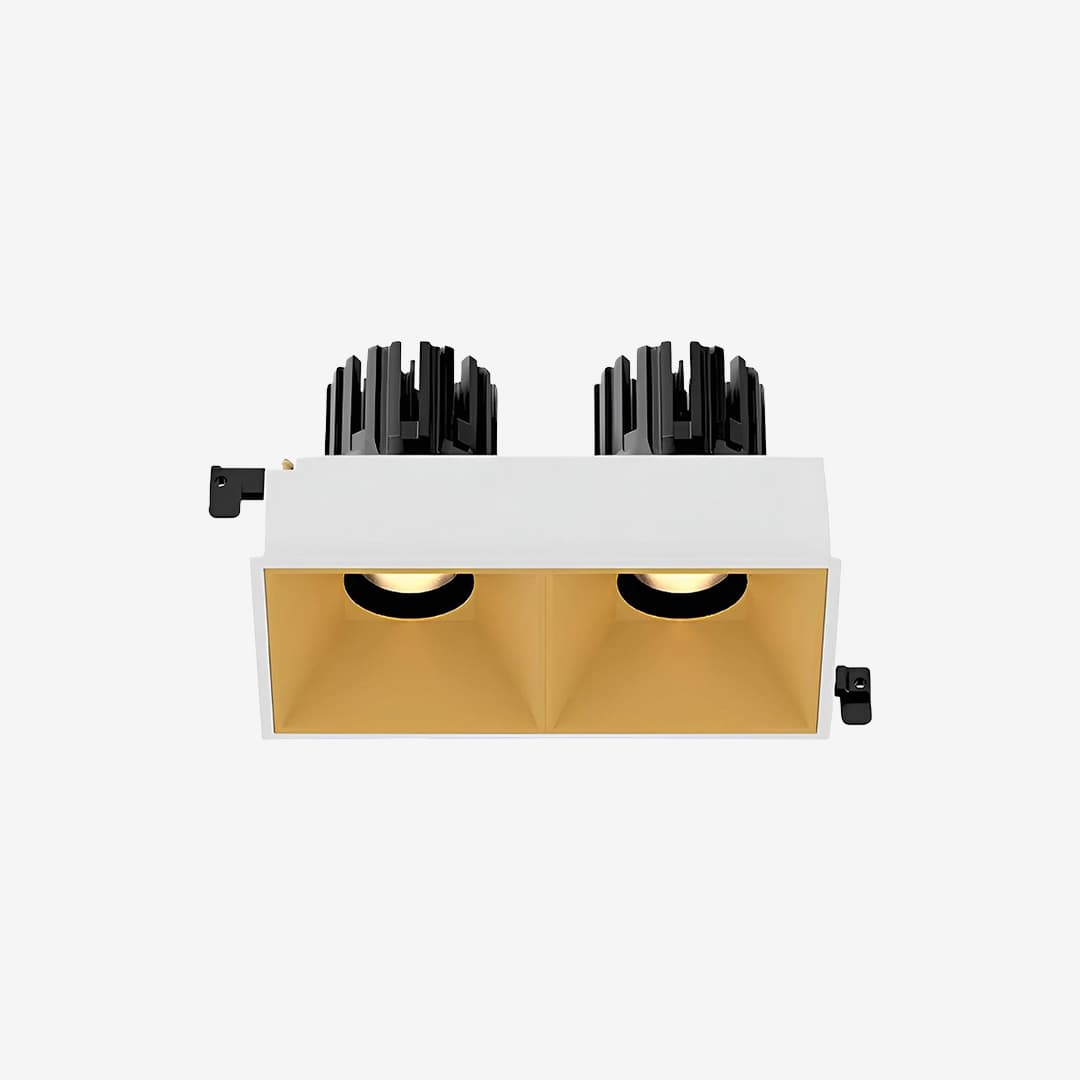

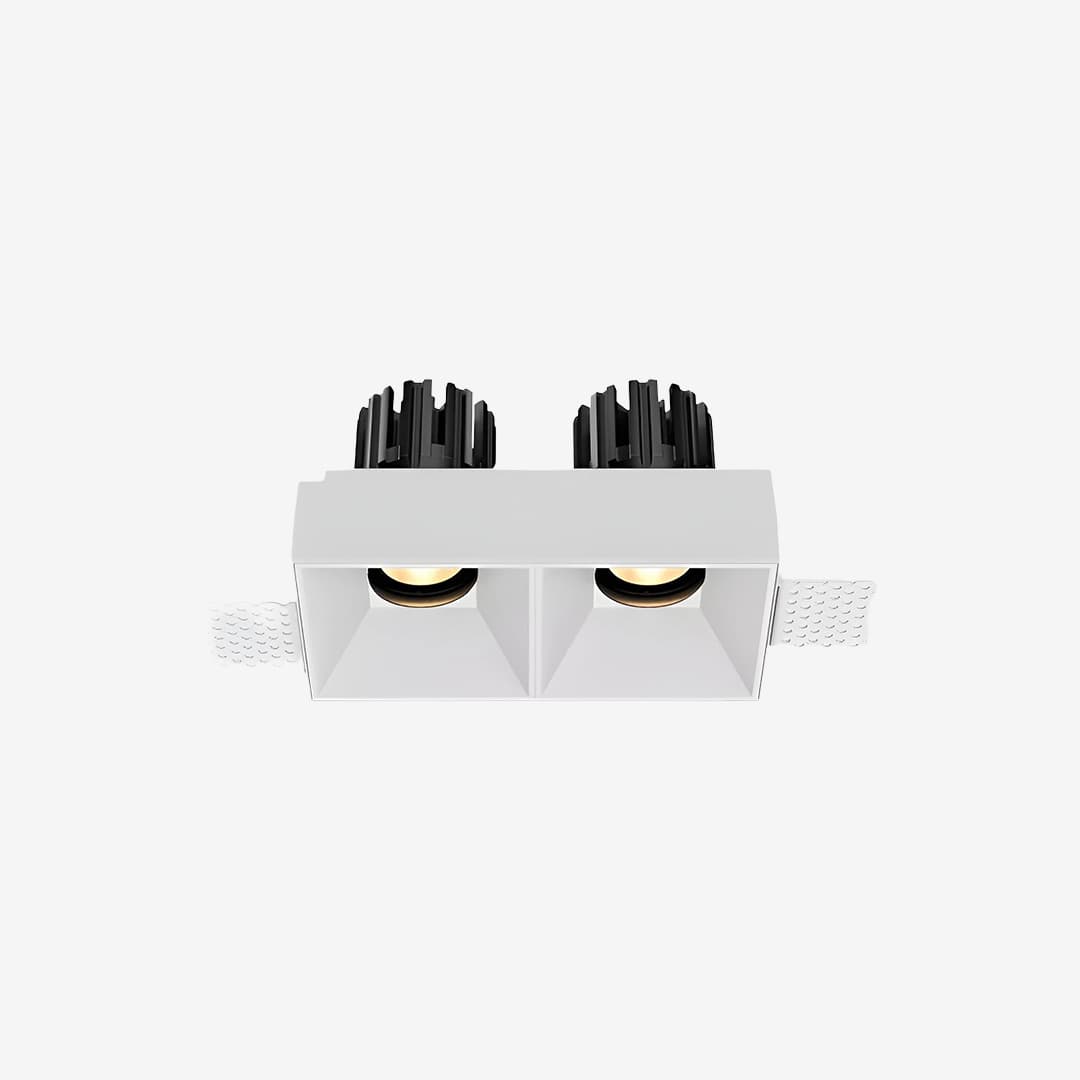

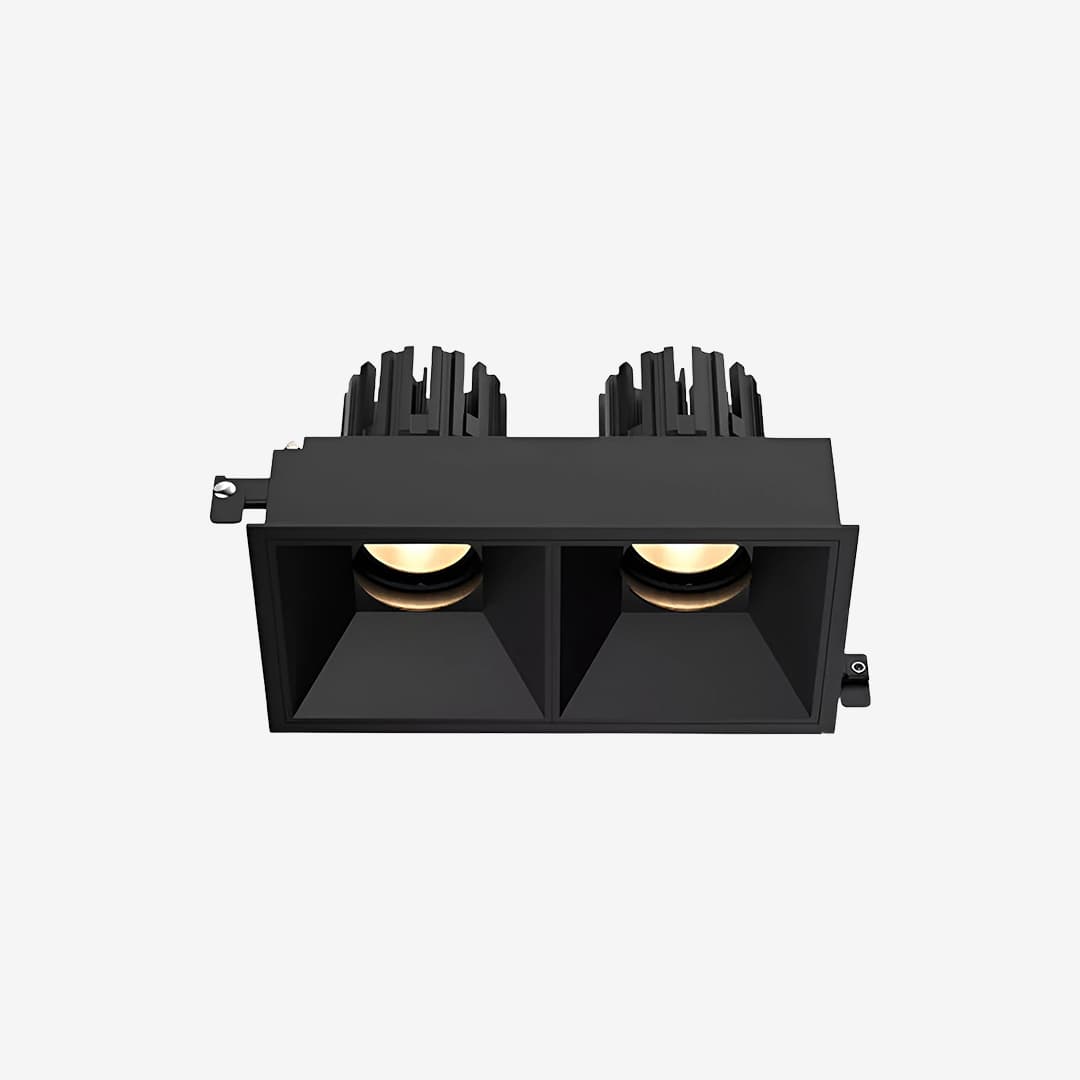

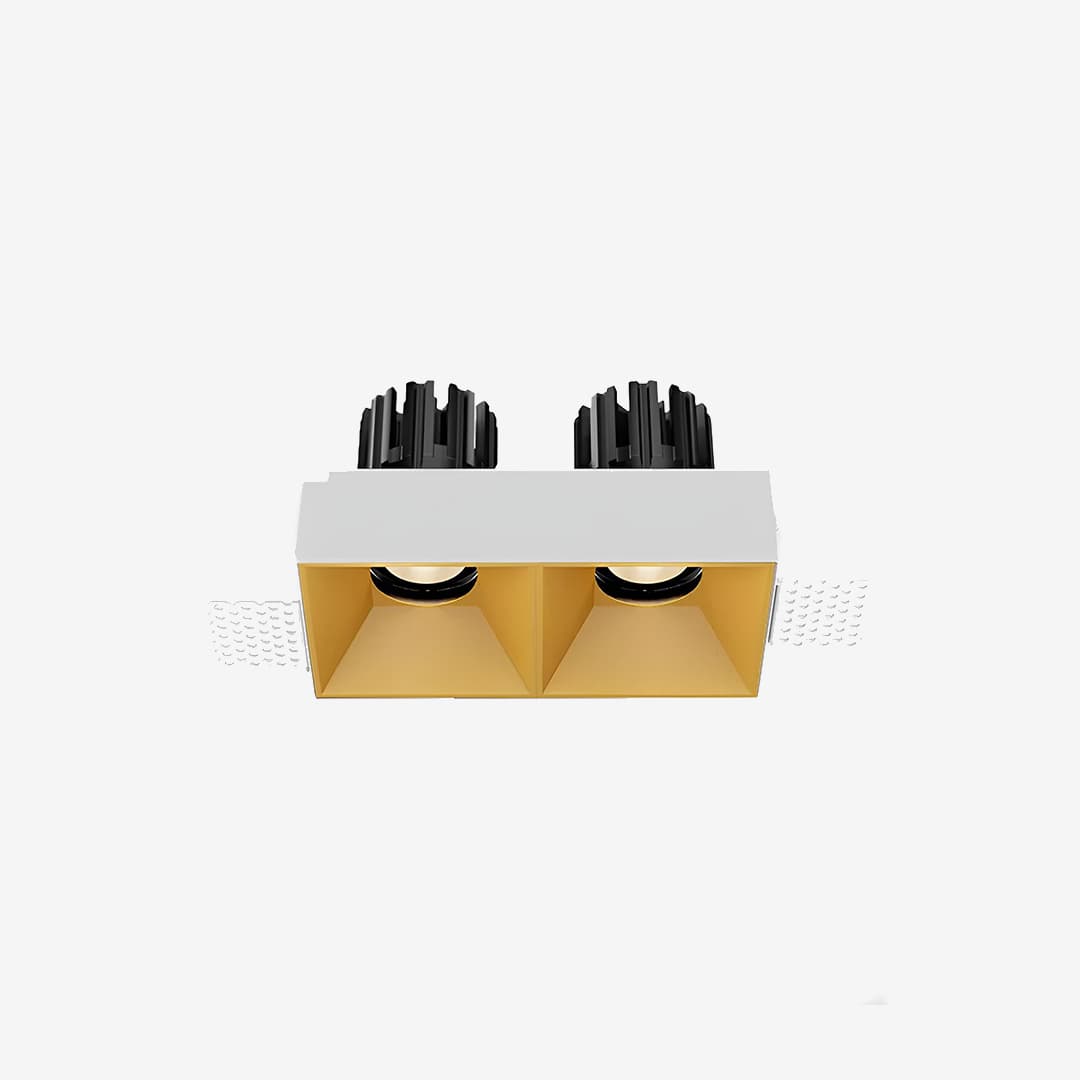

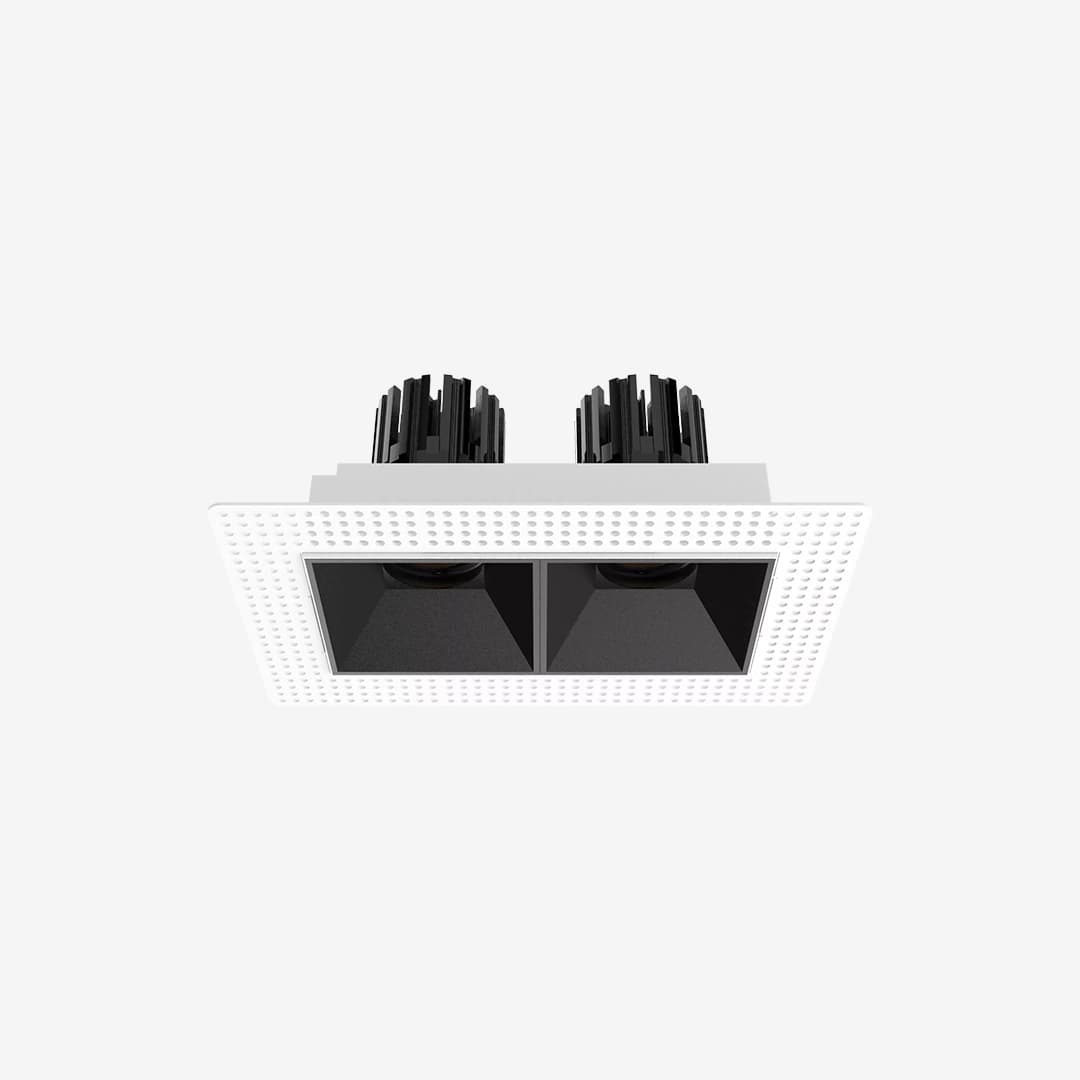

The 3 Inch Recessed Square Adjustable Double Downlight is designed for spaces that need more than one accent point without cluttering the ceiling. It comes in two trim styles so it fits different architectural finishes: a micro flange version with a clean, minimal border for a crisp detail, and a trimless version for a seamless plaster-in look. Same light engine and performance either way, just a different ceiling expression.

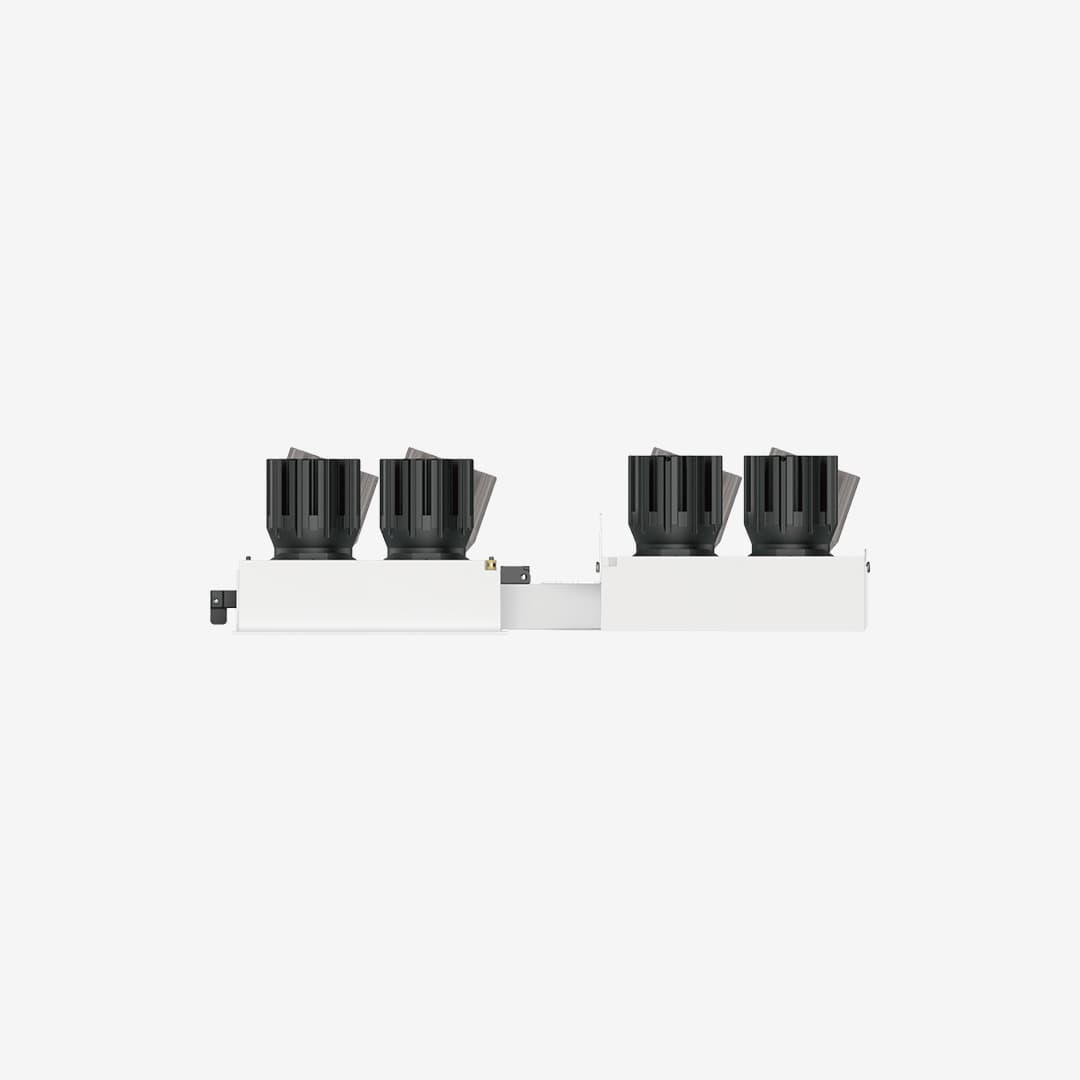

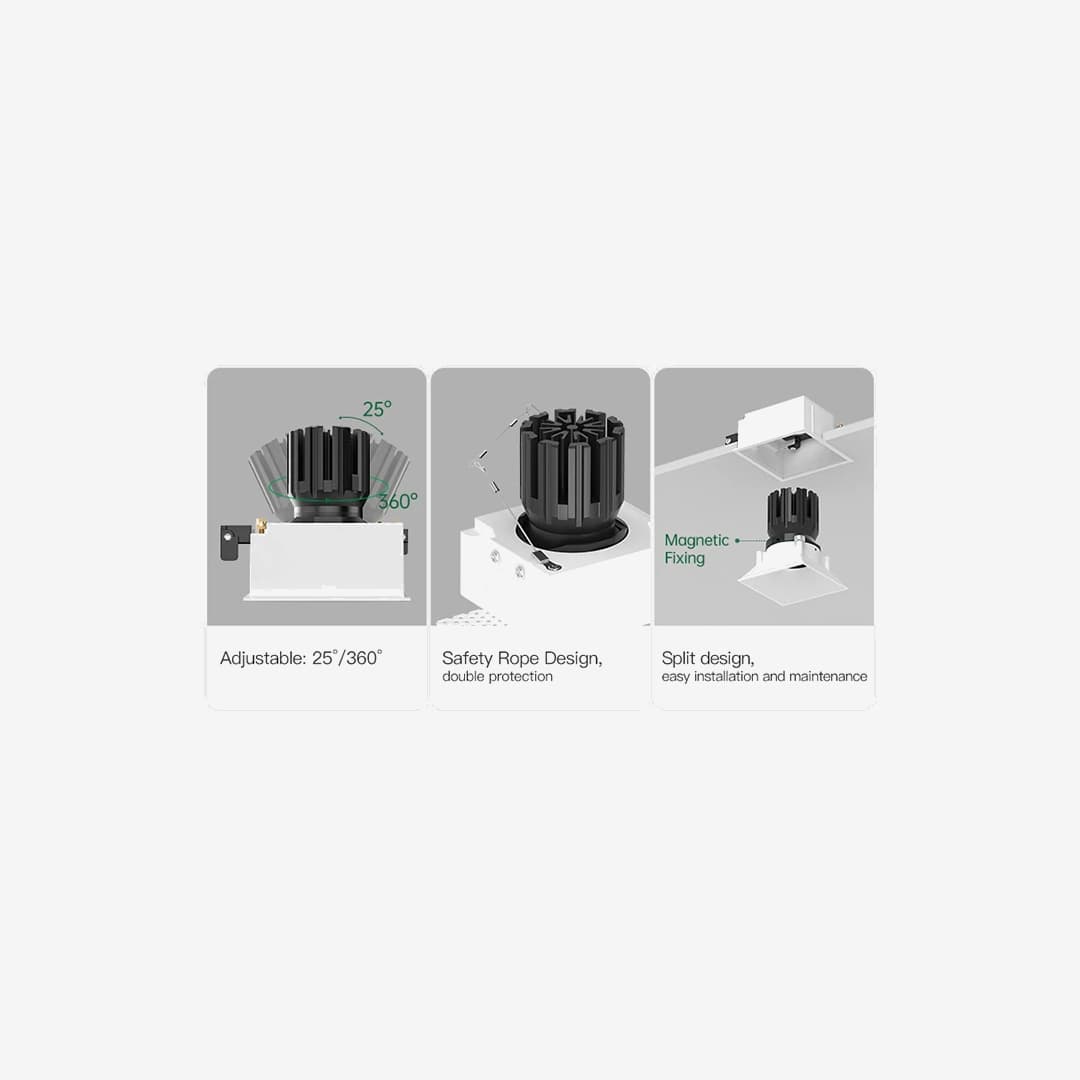

Each of the two heads adjusts independently with smooth tilt and full rotation. That lets you aim light onto two separate features from a single cutout, which is perfect for paired artworks, a wall and a niche, or two zones inside an open space. If the room layout changes later, you can re-aim the heads instead of adding new fixtures, keeping the ceiling consistent.

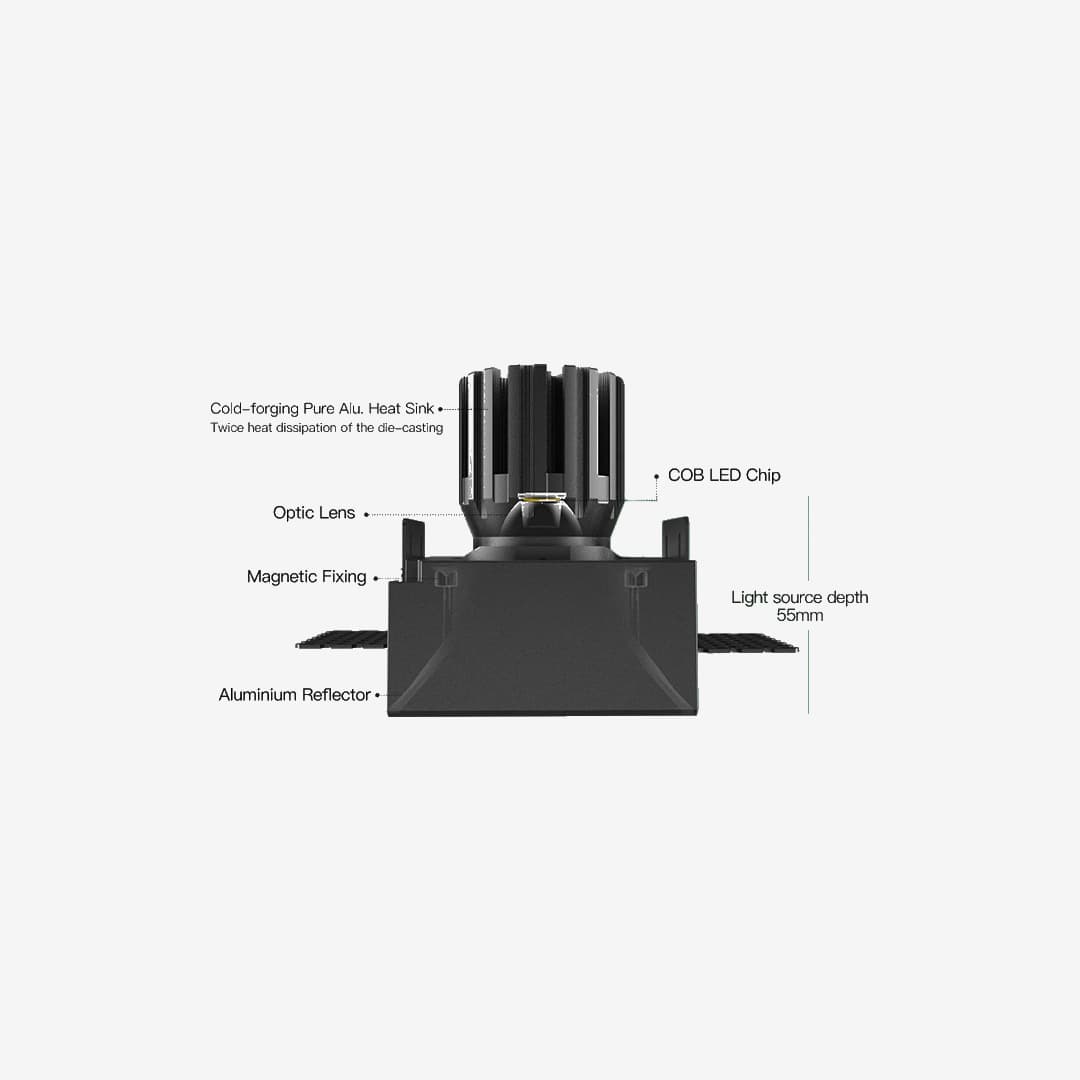

Light quality stays spec-grade. The dual COB LED engines are paired with precision lenses and deep reflectors to produce clean beam edges and strong glare shielding. The result is a controlled, comfortable beam even when aimed at sharper angles. Multiple beam spreads are typically available, so you can choose tight accents or wider fills while keeping the same fixture family across the project. High CRI output keeps materials and skin tones looking natural.

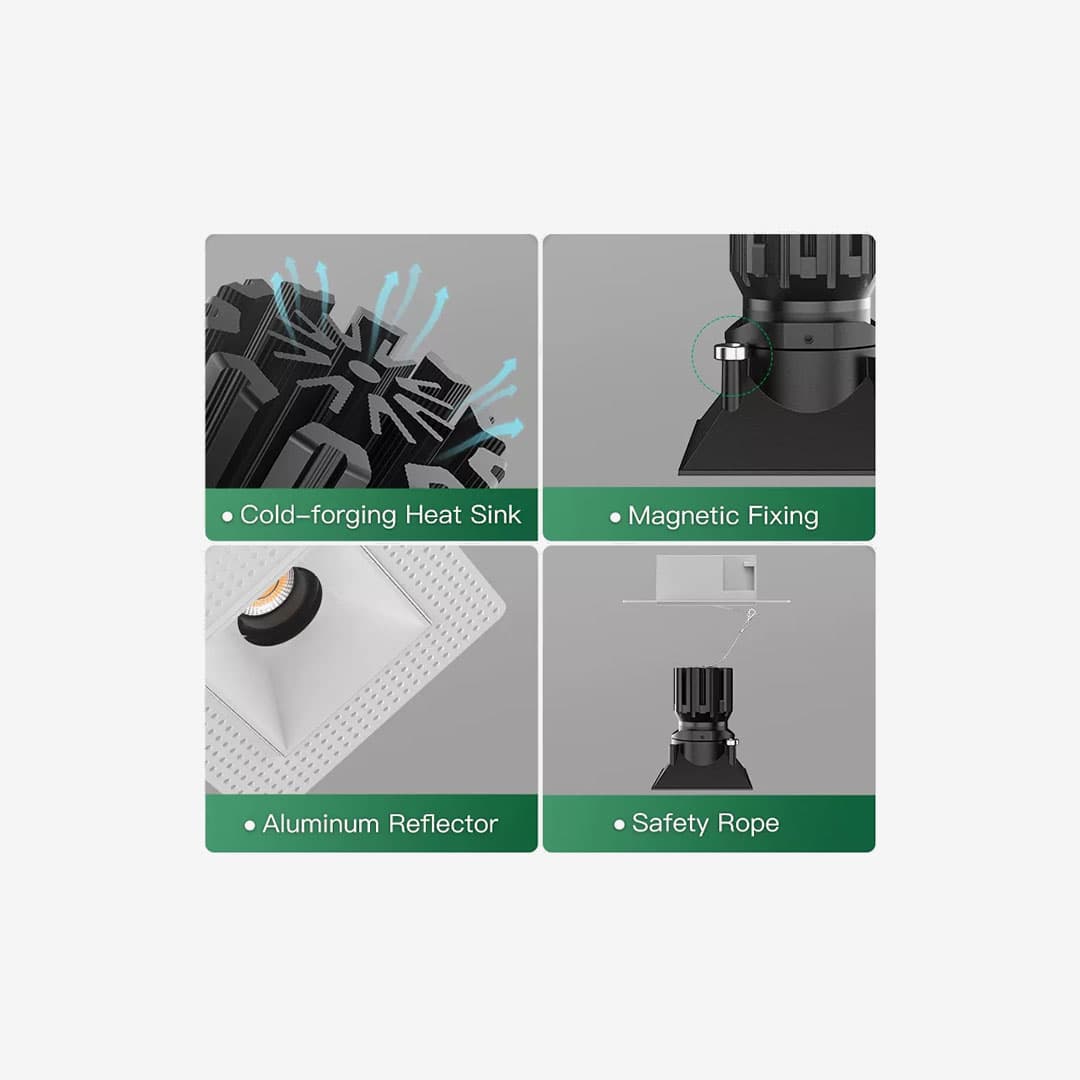

Thermal performance is handled through a cold-forged aluminum heat sink that dissipates heat efficiently. This reduces LED stress, supports stable lumen output, and helps maintain consistent color over years of use, which matters a lot in compact multi-head fixtures.

This model is intended for dry interior applications and fits naturally into living spaces, kitchens outside wet zones, boutique retail, hotel rooms, galleries, and design-driven commercial interiors. Whether you go micro flange or trimless, you get the same aiming flexibility and light performance, just matched to your ceiling finish.

Key points

  • 3 inch recessed square double-head layout

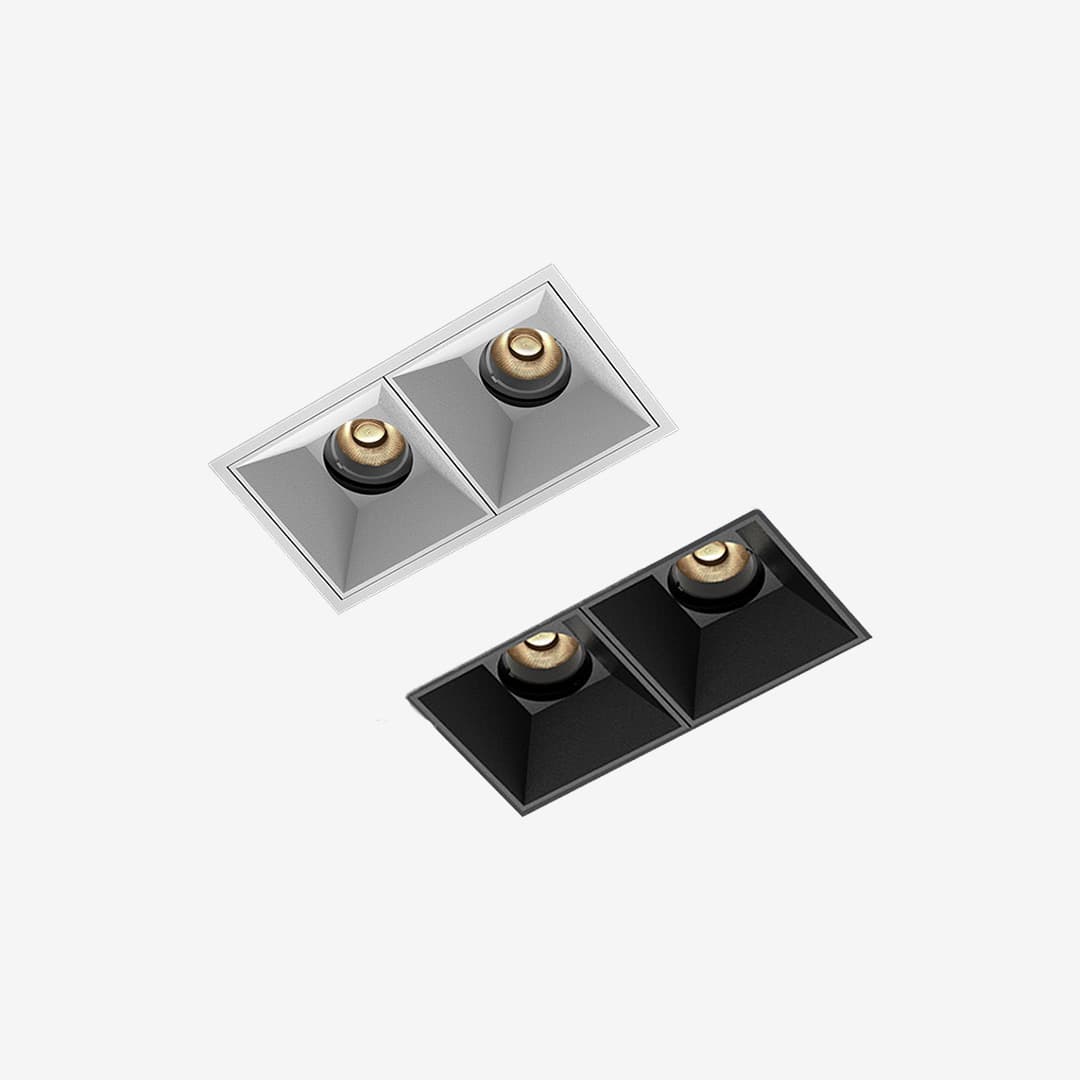

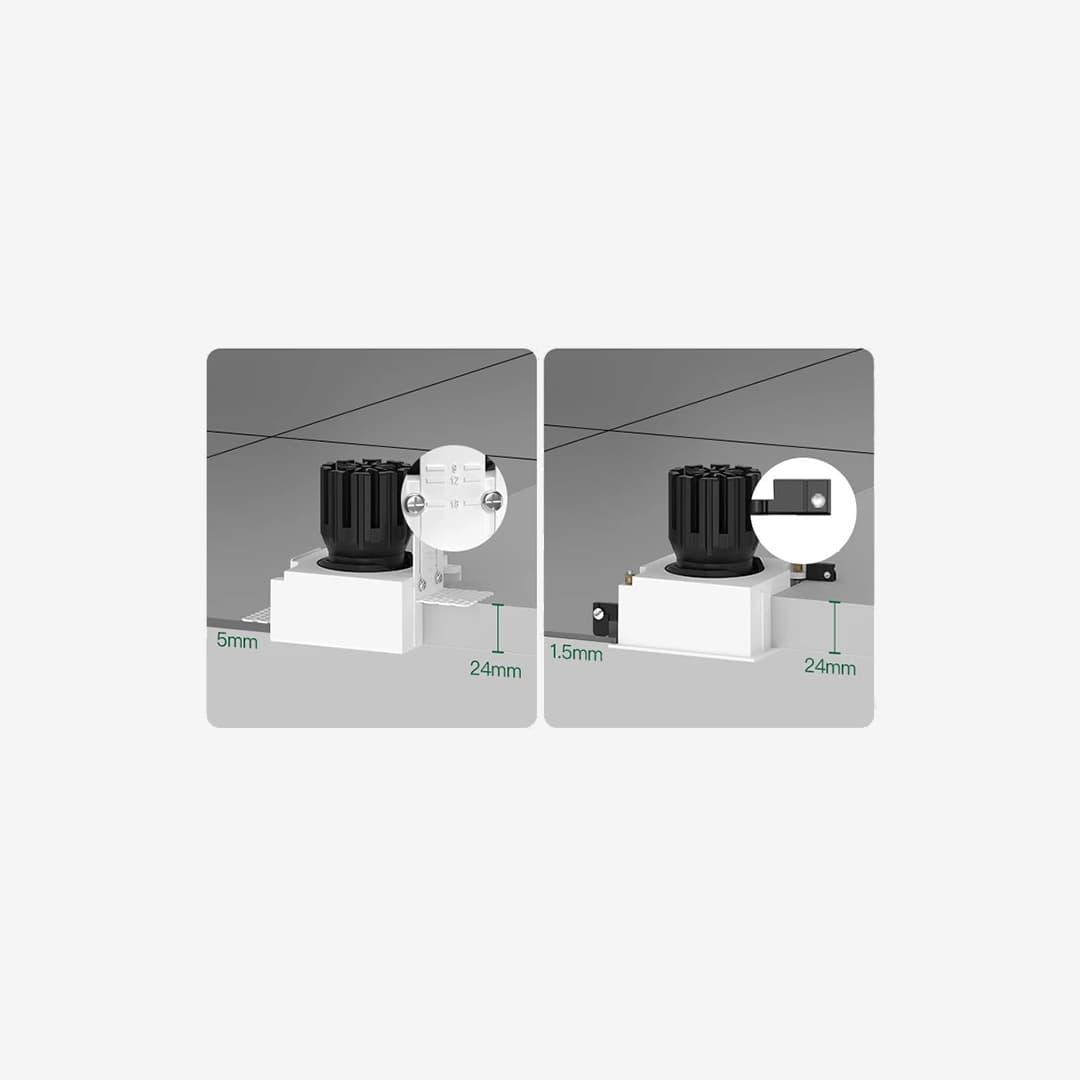

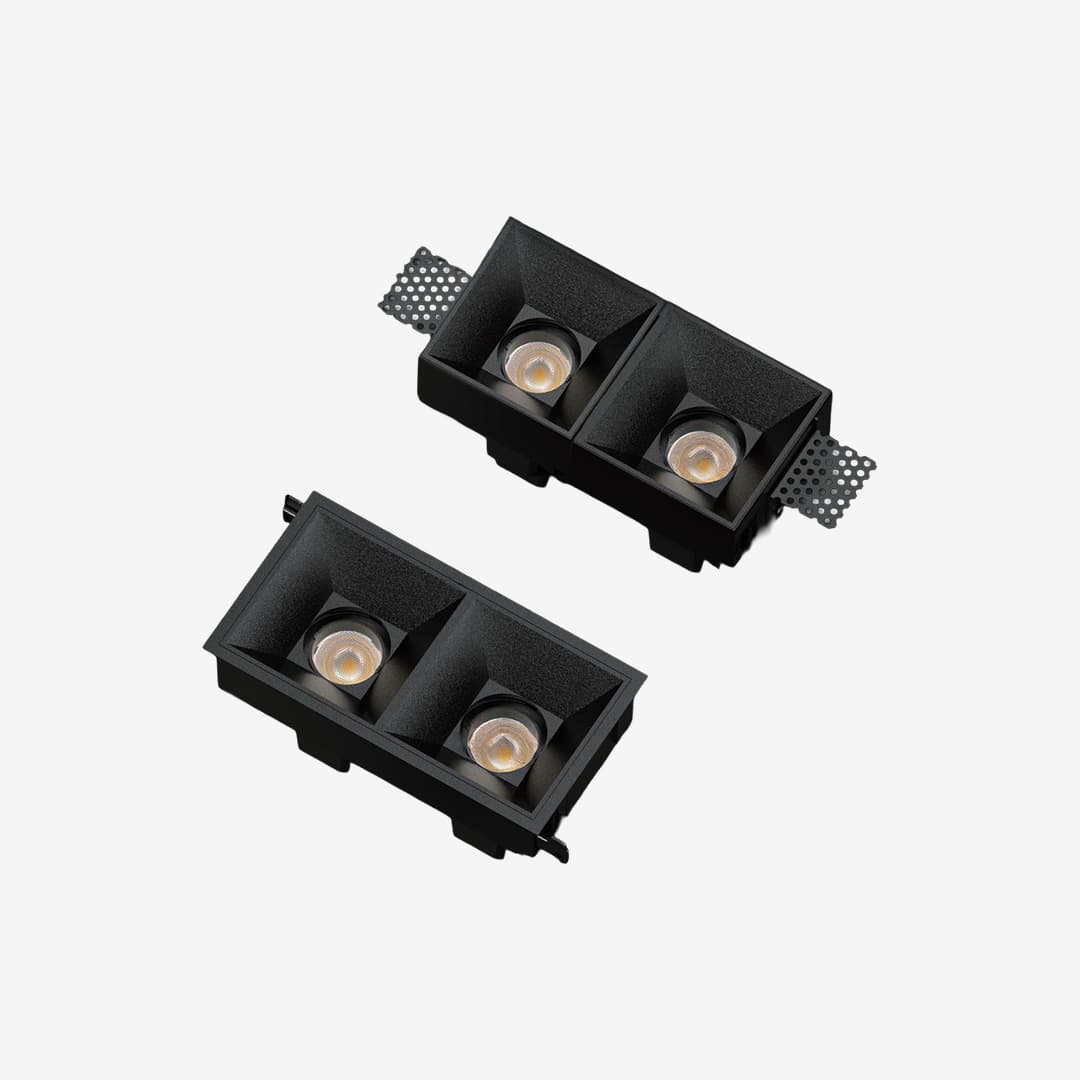

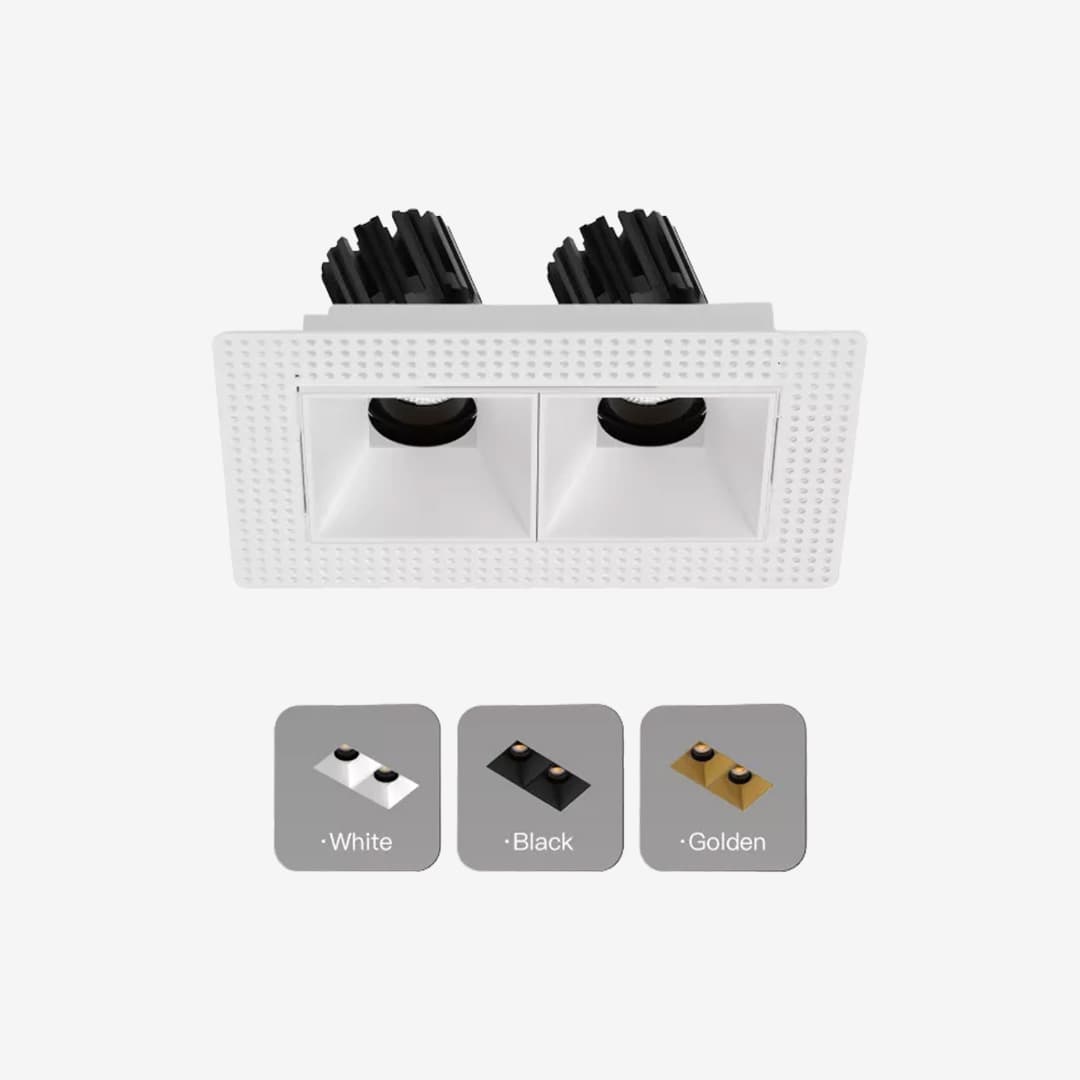

  • Offered in micro flange and trimless versions for different ceiling finishes

  • Two independently adjustable heads with tilt and full rotation

  • Twin COB LED engines with high-CRI output

  • Deep anti-glare optics for clean, comfortable beams

  • Cold-forged aluminum heat sink for stable long-term performance

  • Ideal for art lighting, feature walls, shelving, and multi-zone accents

  • Dry-location interior use

Beam
15-80°
Color
97 CRI
Ingress
IP20-65
Trims
3
Configure this fixtureSpecs and downloads

Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.

Certified & rated

  • ETLIntertek listed
  • FCC
  • CEEU conformity
  • IP65Wet location

Ratings apply per build. The IP65 rating belongs to the builds that carry it, not to every option on this page.

Configurator

Build the fixture, get the order code.

Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.

1 of 12 required

Shape (required)

Required

COB Chip (required)

Required

CCT (required)

Required

Colour Temperature

n/a

Beam Angle (required)

Required

IP Rating (required)

Required

Trim (required)

Required

Reflector Colour (required)

Required

Trim Colour (required)

Required

Driver (required)

Required

Housing (required)

Required

Tethered Controller (required)

Required

Order code

N75-····-··-XK-··-··-····-··-··-··-··

11 required axes remaining

Configured price

$189.00

Photometrics

See what the beam does before you cut the hole.

Pick an optic, a mounting height and a color temperature. One set of inputs drives all four views: the beam in section, the polar distribution, the spacing a run sets out at, and color rendition. Tested IES files for every build are in the downloads below.

Beam angle
Ceiling height
Colour temperature
DistanceFocus Ø
1.0 m0.44 m
2.0 m0.89 m
Floor · 2.74 m1.22 m

The diameter is geometry from the rated beam angle and holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.

h = 9 ft / 2.74 m25° beam · 3000KFocus 1.22 m / 4.0 ft
N75 · Beam section25° · 3000K · 9 ft ceilingScale varies

Installed

At work in projects we lit.

View projects →
Recessed downlights set flush into a plaster ceiling
A pair of recessed downlights in an unbroken ceiling plane

Technical specification

Material
Cold Forged Aluminum
Shape
Round · Square
COB chip
24V CV · 36V CC
Colour
Static CCT · 5CCT Switch · 2700K to 6000K · 1800K to 5500K · 3000K to 1800K · RGBW
Beam angles
15° · 25° · 35° · 50° · 80°
Ingress and aiming
IP20 · IP44 · IP65

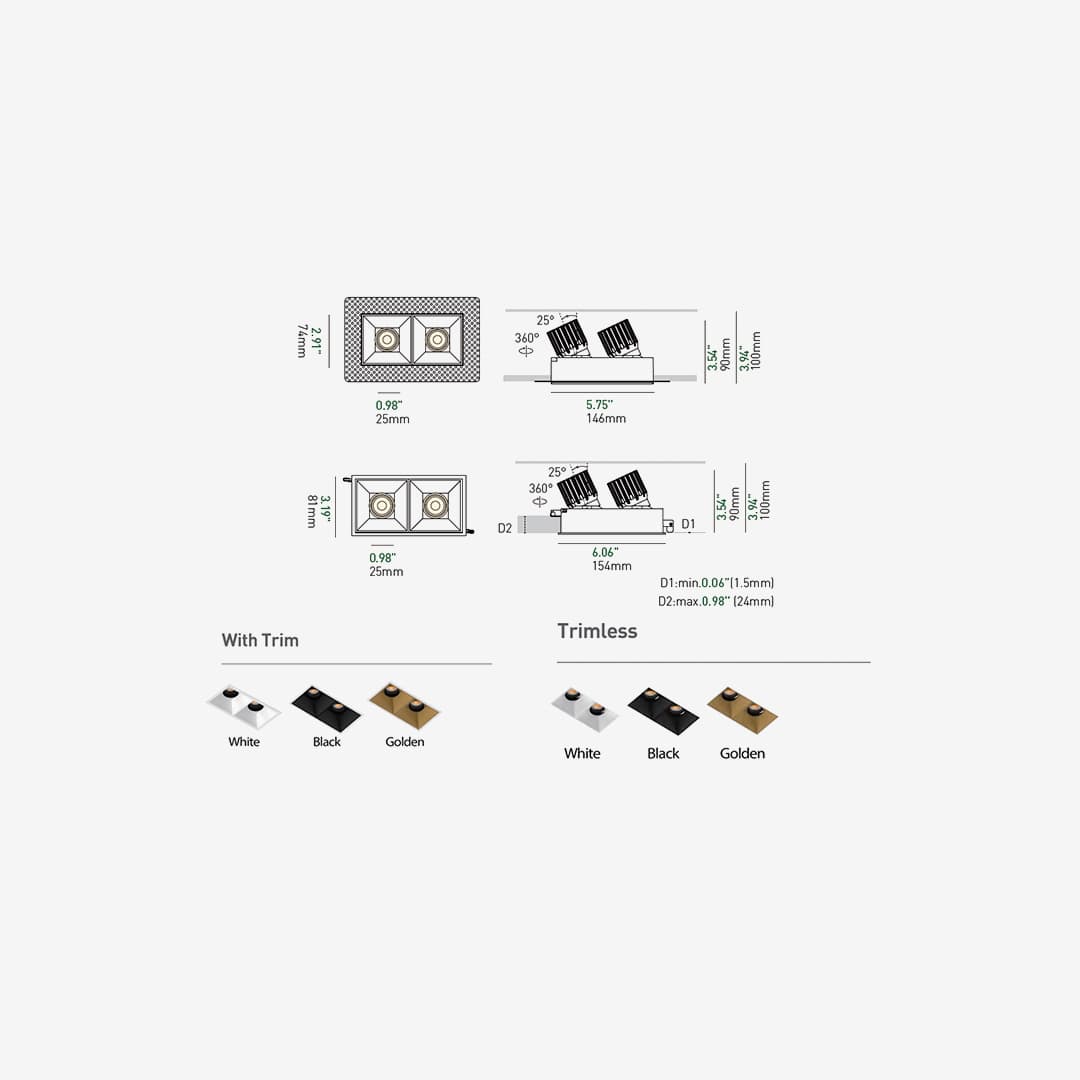

Trim
Trimless · Micro-flange · Millwork
Reflector colour
Black · White
Driver
Remote driver · 0-10V · Triac · Dali2
Housing
None · Flat Bracket · Non-IC Housing · IC-Housing
Tethered control
Casambi · Tuya
Certification
Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
Warranty
5 years

Downloads

  • Spec sheetPDF
  • IES photometric filesOn request

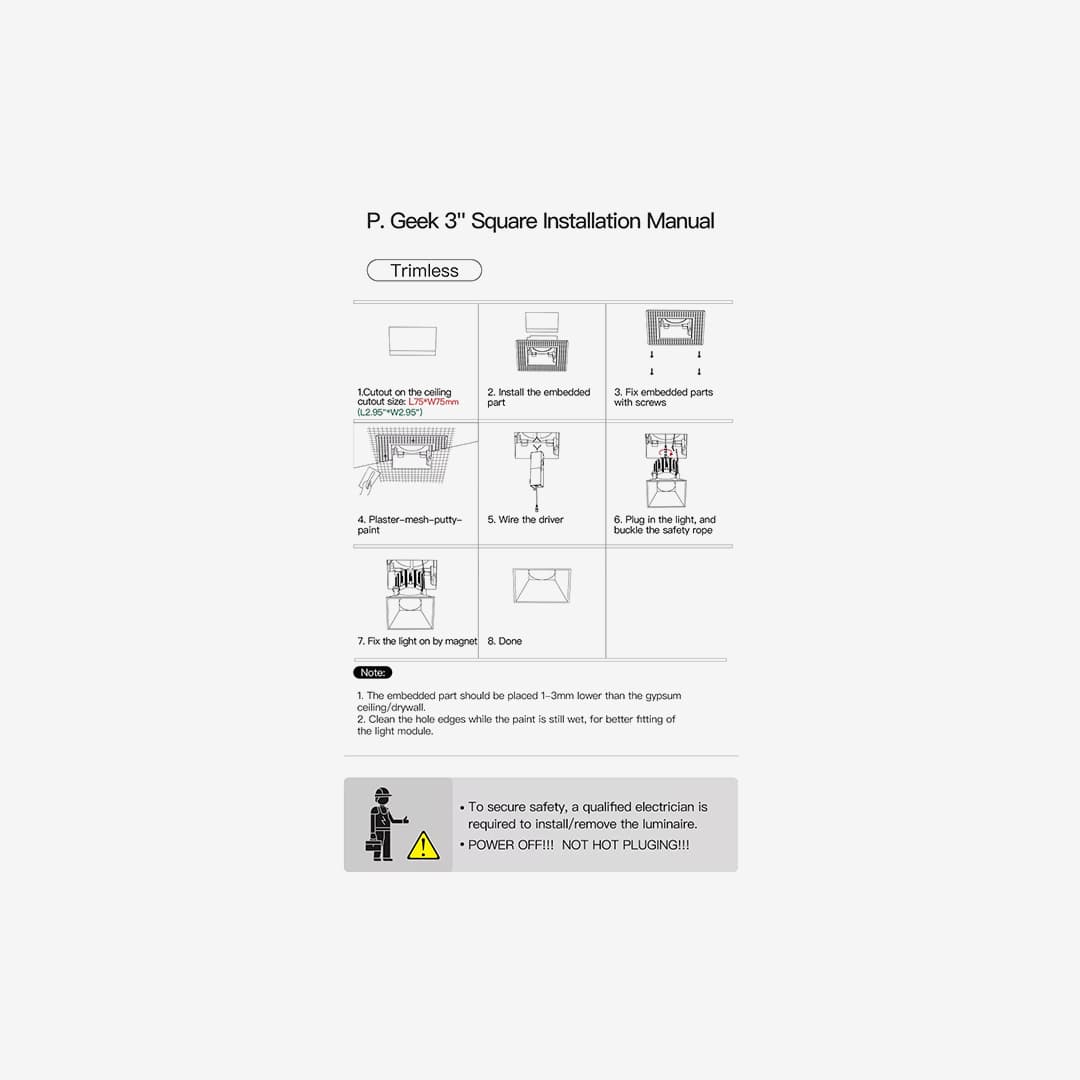

  • Installation guidePDF
  • Revit and CAD blocksOn request

Anything marked on request we will send the same day. Ask at info@nuordic.com.

Need a layout, not just a fixture?

Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.

Start a Design Brief
