Linear Lights

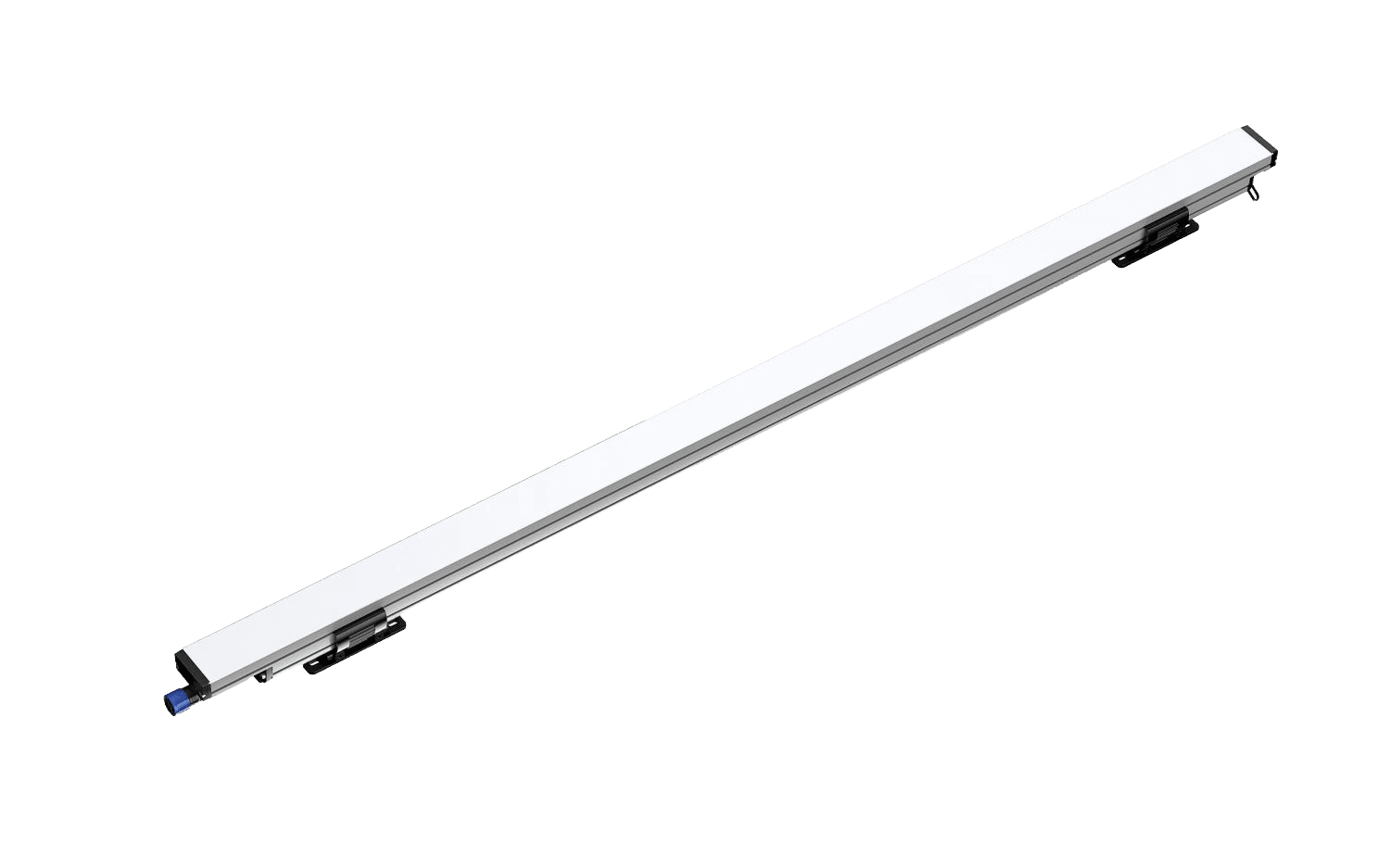

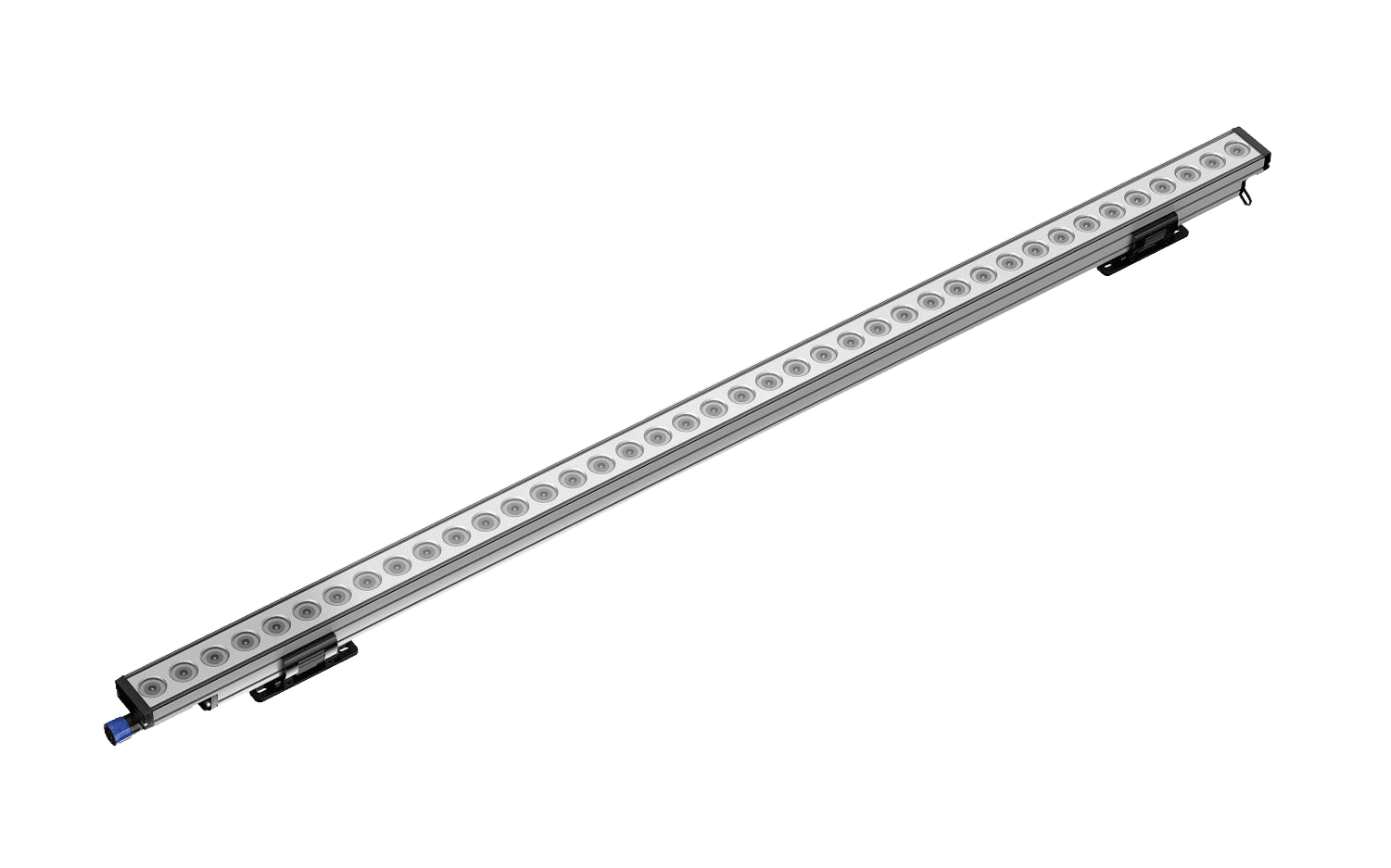

Cannex G3 Exterior Wall Grazer
Model BA-3CEV4FT40W · Aluminum · 3 trims

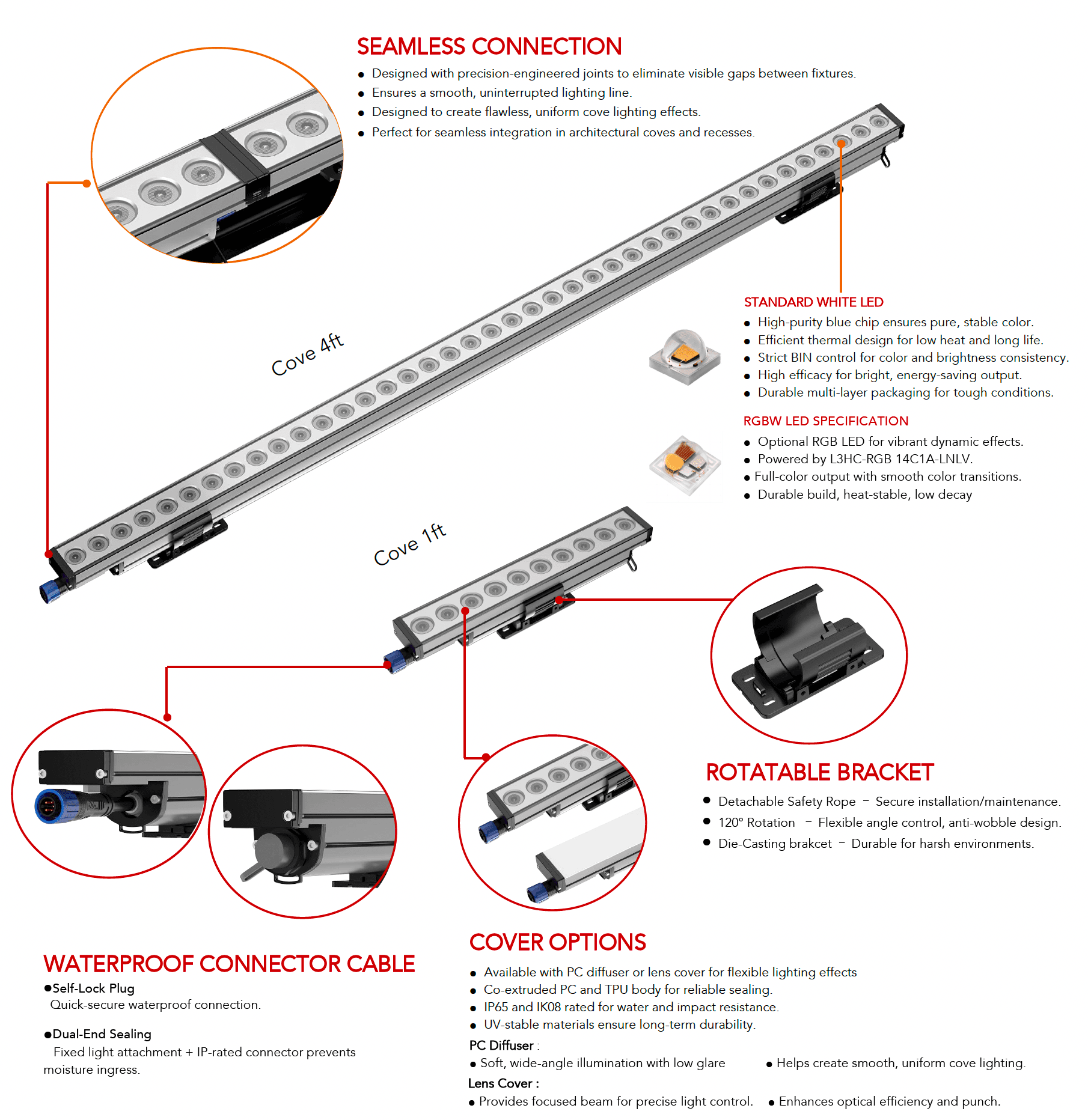

The G3 Exterior Cove Light represents the cutting edge of exterior lighting solutions. Specifically designed for wall washing, flood applications, signage
illumination, wall grazing, and landscape accents, this fixture is engineered with high-density extruded aluminum and incorporates an optical-grade PC lens. The Cleaver cove light boasts a single row of high-brightness LEDs, all elegantly housed within a low-profile design. With a range of options to suit your needs, Gen3 cove light is available in two standard lengths and offers even different beam angles. What sets G3 cove light apart is its ability to run on Direct AC power, eliminating the need for an external driver. Experience powerful and elegant lighting with the G3 Cove light.
- Ingress
- IP20-65
- Output
- 40 W
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- ETLIntertek listed
- CEEU conformity
- FCC
- IP65Wet location
Ratings apply per build. The IP65 rating belongs to the builds that carry it, not to every option on this page.
Configurator
Build the fixture, get the order code.
Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.
0 of 8 required
Output (required)
RequiredMounting (required)
RequiredLength (required)
RequiredColor Temp (required)
RequiredDriver (required)
RequiredDiffuser (required)
RequiredFinish (required)
RequiredIP Rating (required)
RequiredOptions add any
None selected
Order code
BA-··-··-··-··-··-··-··-··
8 required axes remaining
Configured price
$249.00
Installed
At work in projects we lit.
Technical specification
- Material
- Aluminum
- COB chip
- Standard · High Output · Tunable White
- Colour
- 2700K · 3000K · 3500K · 4000K · 2700K to 1800K · 2700K to 6500K
- Ingress and aiming
- IP20 · IP44 · IP65
- Trim
- Surface · Suspended · Recessed
- Driver
- Non-dimmable · TRIAC / mains dim · 0-10V · DALI · Casambi
- Certification
- Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
- Warranty
- 5 years
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Revit and CAD blocksOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
