Collections/Step Lights/Trimless Gypsum Circle Step Light
Trimless Gypsum Circle Step Light
Step Lights

Trimless Gypsum Circle Step Light

Model N55-S04 · Aluminium Light Body · 3 trims

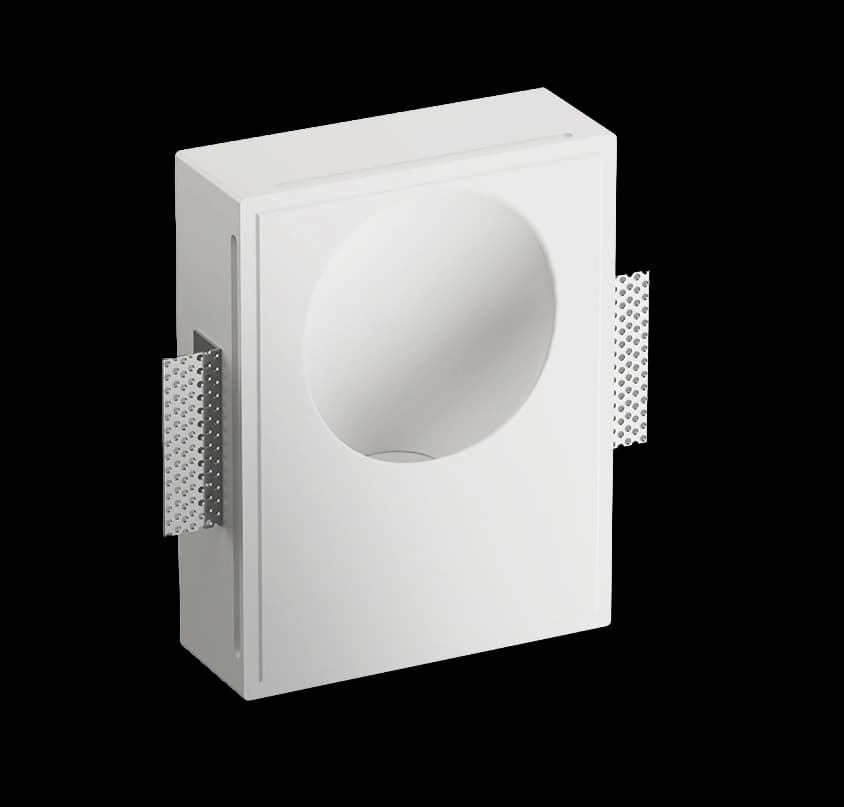

The Trimless Gypsum Circle Step Light is designed for projects where light and architecture are meant to merge into one. Constructed with a plaster-in gypsum housing, this fixture is installed flush with drywall or plaster surfaces and finished on site. Once painted, the body disappears entirely, leaving a subtle circular aperture that emits a calm, directional glow.

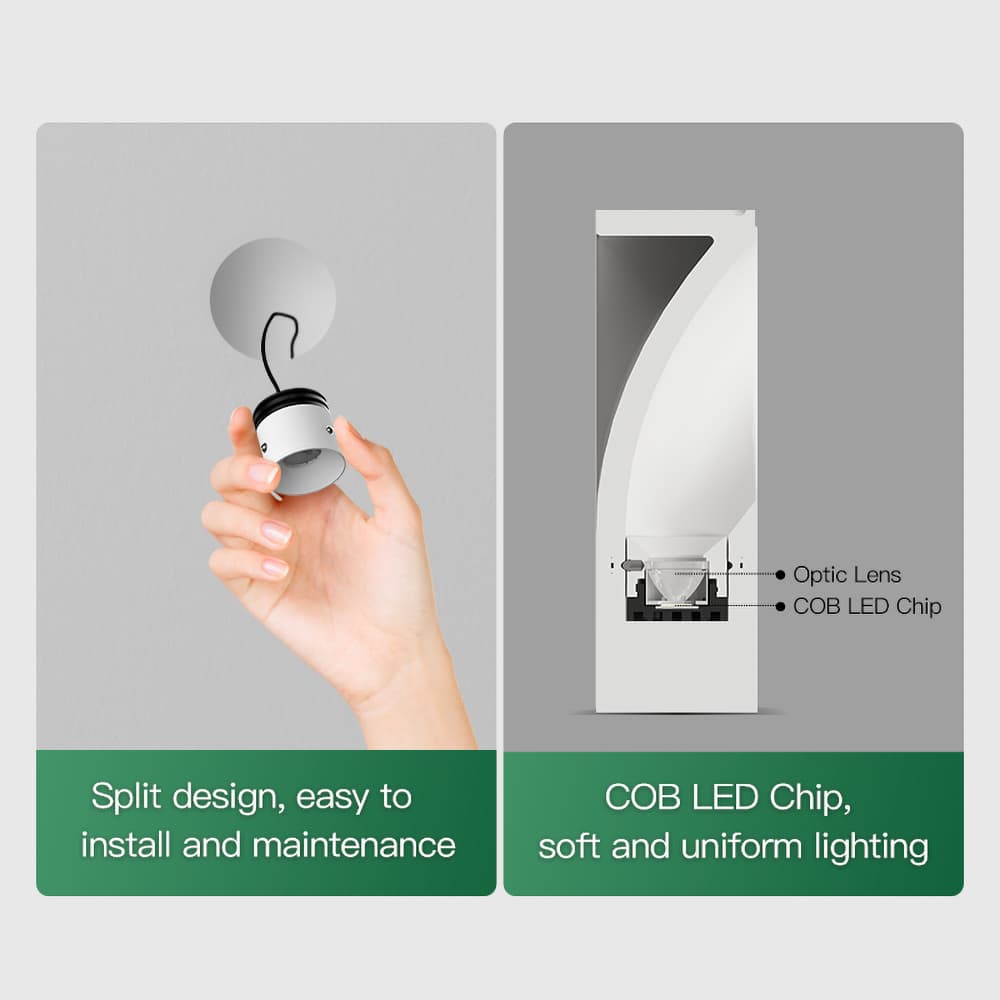

The defining feature of this step light is its curved internal geometry. The light source is recessed deep within the housing, preventing direct view of the LED and eliminating glare. Light is gently projected outward and downward, creating soft pools of illumination along stairs, walls, and circulation paths. This makes it ideal for night-time wayfinding, step definition, and ambient guidance without overpowering the space.

Despite its minimal appearance, performance is precise and controlled. The COB LED engine provides high color rendering, ensuring wall finishes and materials appear natural even at low light levels. The fixed beam angle is optimized for step and floor illumination, avoiding harsh cut-off lines while maintaining usable brightness where it matters most.

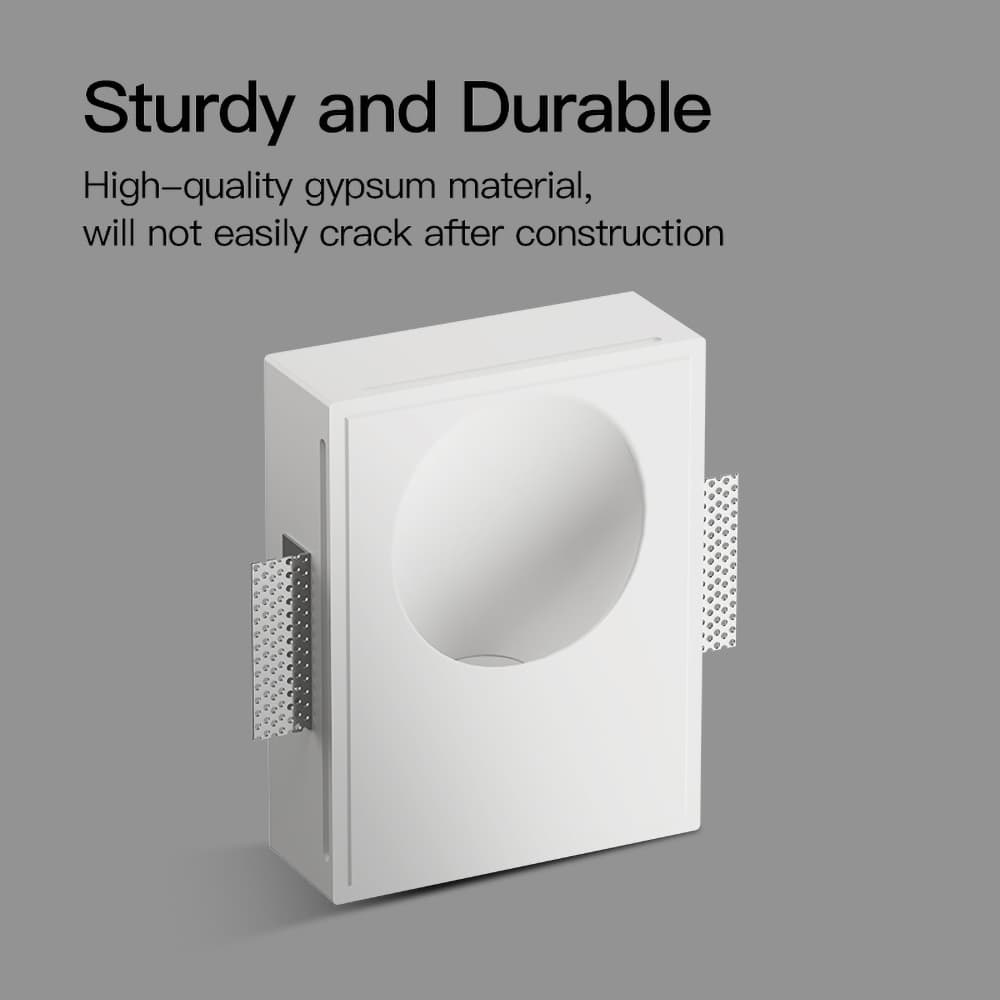

The fixture combines a gypsum outer housing with an aluminum light body to ensure proper heat management and long-term reliability. This construction supports stable output and consistent color over time, which is critical for plaster-in fixtures that are designed to be permanent architectural elements rather than replaceable accessories.

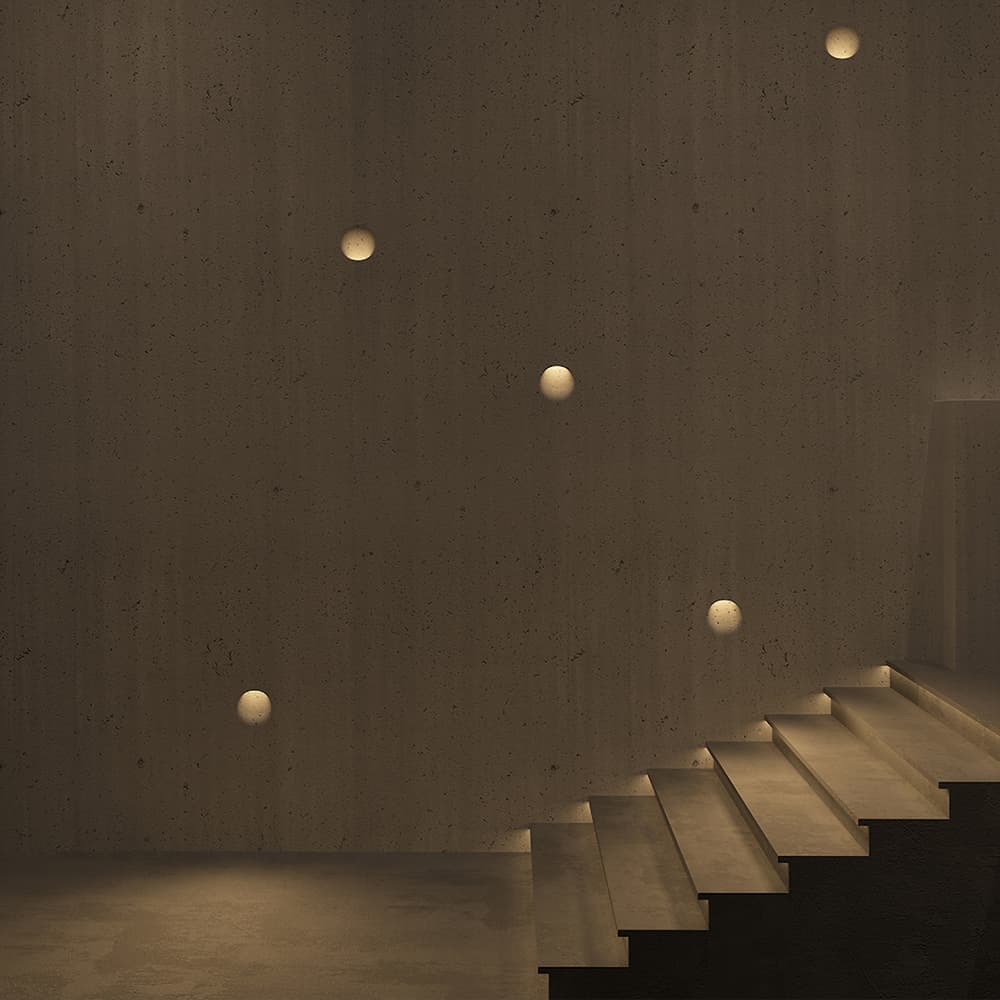

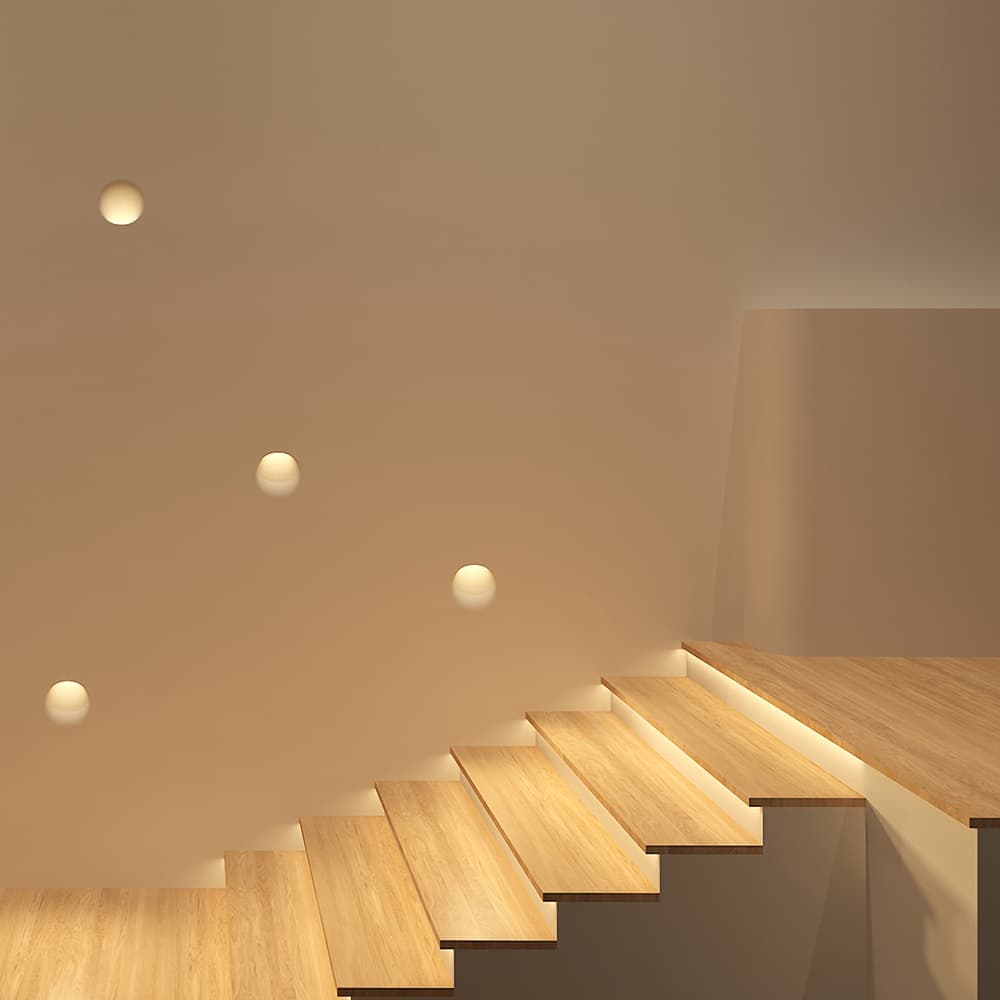

Designed for dry interior applications, this step light works beautifully in luxury residential staircases, corridors, galleries, boutique hospitality spaces, and modern commercial interiors. Whether installed individually or as a repeated rhythm along a wall, it delivers subtle safety lighting that feels calm, architectural, and deliberately integrated.

Key points

  • Trimless gypsum housing for seamless plaster-in installation

  • Circular recessed aperture with curved glare-control geometry

  • Low-glare, directional light for steps and floor guidance

  • High-CRI COB LED for accurate color rendering

  • Fixed beam optimized for safety and orientation lighting

  • Gypsum and aluminum construction for durability and thermal stability

  • Ideal for stairs, corridors, feature walls, and architectural transitions

  • Designed for dry interior environments

Ingress
IP20-65
Output
3 W
Configure this fixtureSpecs and downloads

Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.

Certified & rated

  • CEEU conformity
  • IP65Wet location

Ratings apply per build. The IP65 rating belongs to the builds that carry it, not to every option on this page.

Configurator

Build the fixture, get the order code.

Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.

0 of 5 required

Faceplate (required)

Required

Color Temp (required)

Required

Driver (required)

Required

Finish (required)

Required

IP Rating (required)

Required

Options add any

None selected

Order code

N55-··-··-··-··-··

5 required axes remaining

Configured price

$99.00

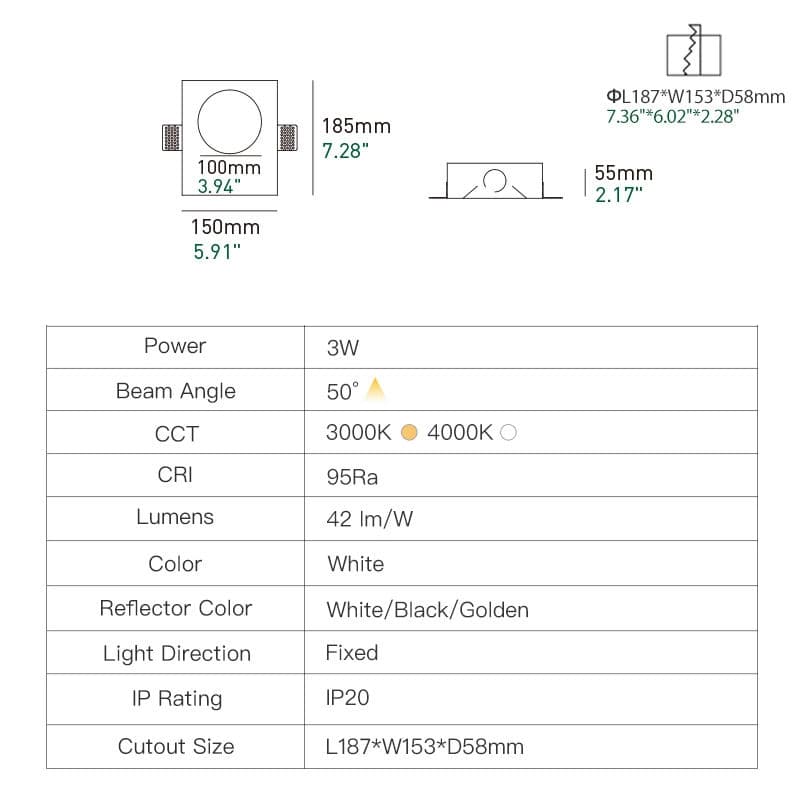

Technical specification

Material
Aluminium Light Body
Colour
2700K · 3000K · 3500K · 4000K
Ingress and aiming
IP20 · IP44 · IP65
Trim
Plain · Eyelid · Louvred
Driver
Non-dimmable · TRIAC / mains dim · 0-10V · DALI
Certification
Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
Warranty
5 years

Downloads

  • Spec sheetPDF
  • IES photometric filesOn request
  • Installation guidePDF
  • Revit and CAD blocksOn request

Anything marked on request we will send the same day. Ask at info@nuordic.com.
